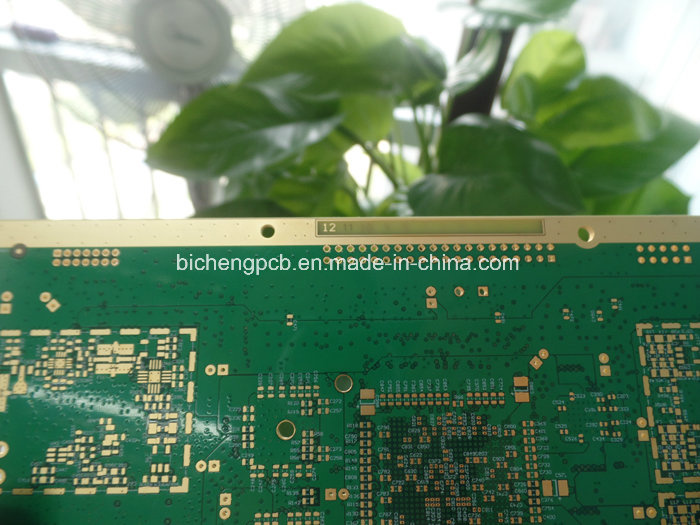

Electronics PCB 4 Layer Circuit Board Fr-4 (Tg 170)
| Price: |
US $ 2.08/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-451.1757-V1.1 |
| Final Foil External: |
1oz |
| Final Height Of PCB: |
0.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Yellow |
| Colour Of Component Legend: |
No Silkscreen Requried. |
| Minimum Trace And Space: |
3mil/4mil |
| Minimum / Maximum Holes: |
0.25/3.50mm |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Bicheng |
Product Description
Company Profile
Bicheng Enterprise Limited which was founded in 2003 is a leading PCB expert that specializes in supplying high-tech PCB in high mixed, fast prototype, small to medium volume. We're capable of supplying PCBs up to 32 layers inclusive of HDI circuit boards, flexible circuits, rigid-flex boards, hybrids, halogen-free boards, metal-based PCB, high frequency PCB, heavy copper (up to 12 oz)
PCB etc. which are in the applications of high-tech products.
The manufacturing facility is certified with ISO9001, ISO14001 & TS16949.Our products are widely used in Telecom, Industrial Control, Networks, Healthcare, & Automotive Industries.

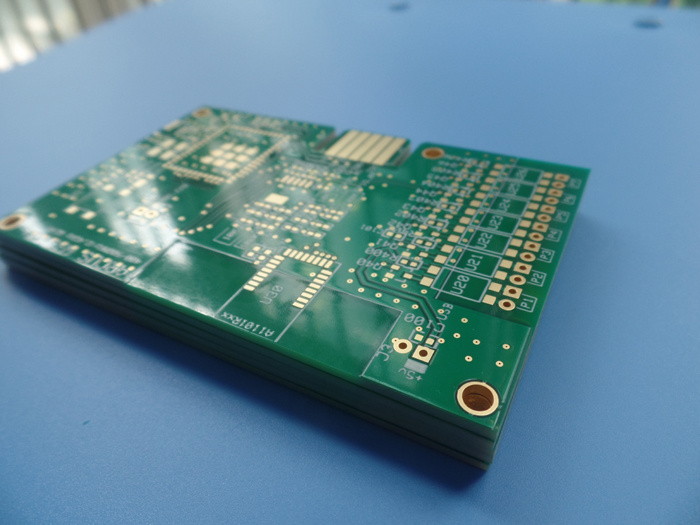

PCB Board

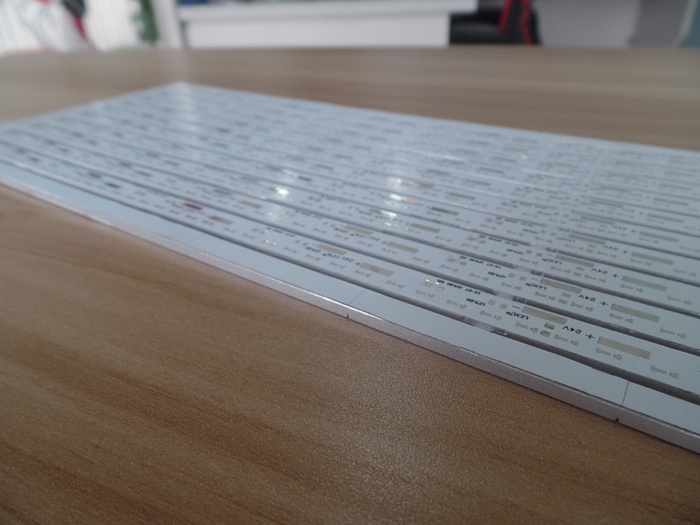

Aluminum PCB

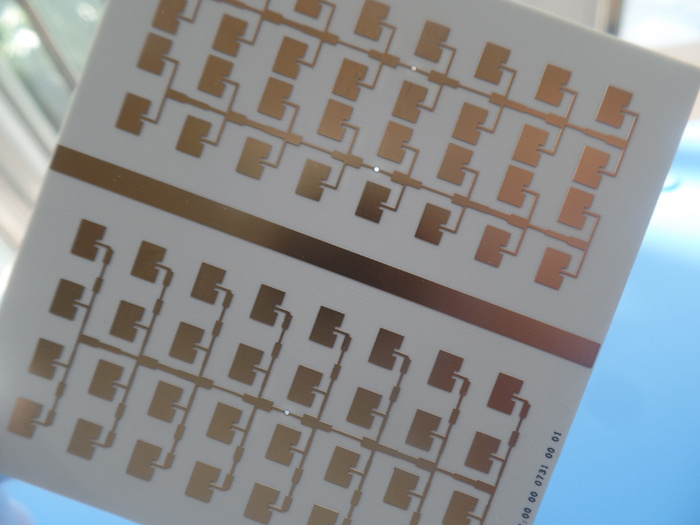

Microwave PCB

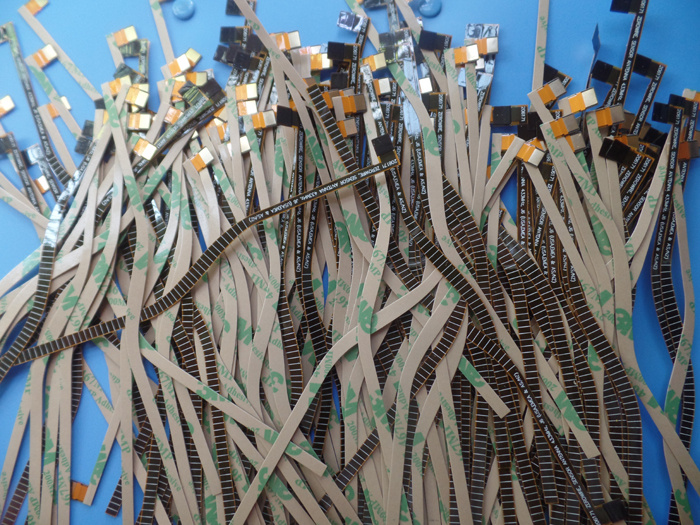

Flexible PCB
How to specify a PCB? A PCB user generally needs to present all of the primary manufacturing data in a complete and unambiguous way that the PCB manufacturer can quote and produce the boards without error.
A checklist is listed as follows. Some parameters not necessary for a particular job can be deleted
so that the specification form only reflects the relevant data.
(1) Company name
(2) Part number
(3) Lot size and annual requirements
(4) Layer count
(5) Board size
(6) Board thickness
(7) Board shape
(8) Panelization
(9) Board build-up
(10) Boards with controlled impedance
(11) Test coupon
(12) Machining (Contouring)
(13) Laminate type and UL flammability
(14) Warp & Twist
(15) Outer layers
(16) Inner layers
(17) Solderability preservation
(18) Solder masks
(19) Notation
(20) Peelable solder mask
(21) Carbon printing
(22) Plated through holes (PTHs)
(23) Non-PTHs
(24) Milled Holes (Slots)
(25) Blind via holes
(26) Buried via holes
(27) Board tooling holes
(28) Panel tooling holes
(29) Board mounting
(30) Edge connectors
(31) Soldering conditions
(32) Markings
(33) Electrical test
(34) Automatic optical inspection
(35) Minimum pattern conditions
(36) Quality conditions
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

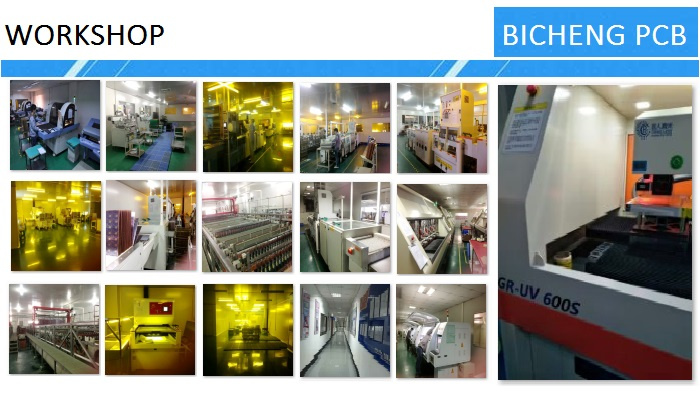

Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
