Electronics PCB 4 Layer Circuit Board Via Filling by Copper
| Price: |
US $ 0.41/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-262-V2.62 |
| Finished Thickness: |
1.62 mm |
| Pth Cu Thickness: |
22. 52um |
| Inner Layer Cu Thickness: |
35 Um |
| Surface Cu Thickness: |
43.8um |
| Surface Finish: |
Lead- Free HASL |
| Solder Mask: |
Green,Nan Ya,Lp-4G G-05 |
| Legend: |
White,Tai Yo,S-380W |
| Electrioal Test: |
100% Pass |
| V-Cut Thickness: |
0.39mm |
| Solder Abllity Test: |
100% Wetting |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
4 Layer High Tg 170 FR4 CTI 175V-249V HASL Lead Free PCB with Green PCB for Mass
production in Wireless Adapter
Commodity Introduction

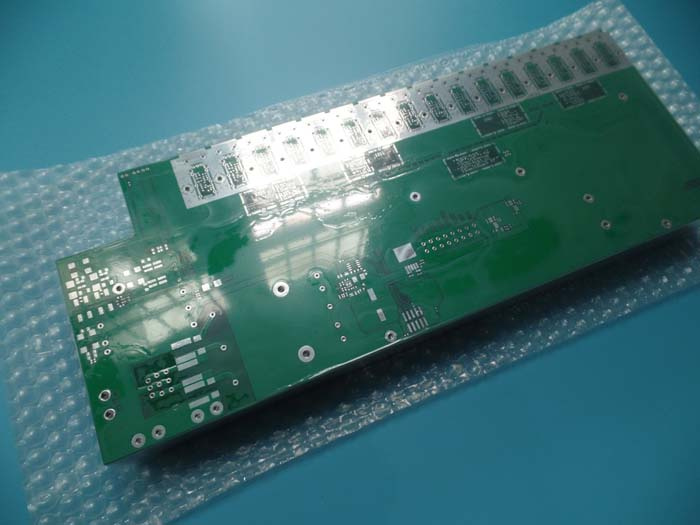

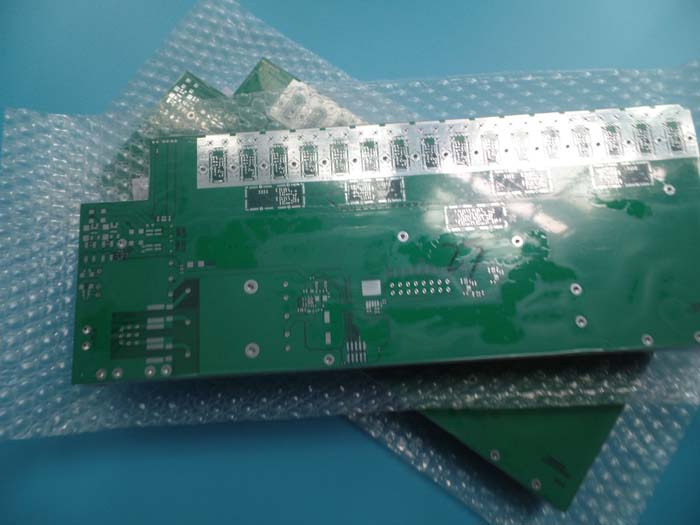

This is a type of FR-4 PCB for the application of Wireless Adapter. It's a 4 layer board at 1.6mm
thick.The base laminate is from ShengYi, Solder mask and silkscreen from Nan Ya and Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
| Laminate | Laminate Type | FR4:CTI:175V-249V | FR4:CTI:175V-249V |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG 170 | TG170 |
| | Finished thickness | 1.57+/-10% MM | 1.62 MM |
| Plating Thickness | PTH Cu thickness | 20 um | 22. 52um |
| Inner layer Cu Thickness | 35um | 35 um |
| Surface Cu thickness | 35 um | 43.8um |
| Solder Mask | Material type | LP-4G G-05 | LP-4G G-05 |
| Supplier | Nan Ya | Nan Ya |
| Color | Green | Green |
| Single / both sides | Both Sides | Both Sides |
| S/M thickness | >= 10.0 um | 26um |
| 3M tape test | NO Peel Off | NO peel off |
| Legend | Material type | S-380W | S-380w |
| Supplier | Tai yo | Tai yo |
| Color | White | White |
| Location | CS | CS |
| 3M tape test | No peel off | no peel off |
| Circuit | Trace Width (mm) | 0.25+/-20%mm | 0.244mm |
| Spacing (mm) | 0.38+/- 20%mm | 0.391 mm |
| Identification | UL mark | 94V-O | 94V-O |
| Company Logo | QM | QM |
| Date code | 1017 | 1017 |
| Mark location | CS | CS |
| Surface Finish | Lead- free HASL | >3.85um | 6.71um |
| Reliabilty Tests | Thermal shock test | 288±5ºC,
10sec,
3 cycles | NO Discolor,
NO Delamination |
| solder abllity test | 235±5ºC | 100% wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.21% |
| Others | V-Cut thickness | 0.4±0.1 mm | 0.39mm |
| Angle | 30+/- 5 | 30º |
Finished dimension (unit: mm): including v-cut| No | Required | Actual Dimension |
| 1 | 190 | 190.03 | 190.03 | 190.06 | 190.04 | 190.06 |
| 2 | 128 | 128.03 | 128.03 | 128.06 | 128.04 | 128.06 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH/NPTH | Actual Dimension |
| 1 | 9.000 | Y | 0.850 | 0.900 | 0.900 | 0.875 |
| 2 | 1.020 | Y | 1.075 | 1.025 | 0.950 | 10.075 |
| 3 | 1.300 | Y | 1.325 | 1.375 | 1.300 | 1.300 |
| 4 | 3.050 | Y | 3.025 | 3.050 | 3.050 | 3.100 |
| 5 | 3.500 | N | 3.475 | 3.475 | 3.525 | 3.550 |
Learn PCB and Buy PCB
Characteristics of PCB
PCB has been more and more widely used, because it has many unique advantages. It can
be summarized as follows.
a) Can be high density. For decades, PCB with high density can be developed with the integration
of integrated circuits and surface mount technology progress.
b) High reliability. Through a series of inspection, testing and aging tests can ensure long time
(use period, generally 20 years) and reliable work.
c) Designability. Various performance (electrical, physical, chemical, mechanical, etc.)
requirements on PCB can be achieved by design standardization and standardization, etc. short
time and high efficiency.
d) Productibility. The use of modern management, it can be produced by standardization
production,scale production (mass production), automatic production etc to ensure product quality
consistency.
e) Testability. Established a series of complete testing methods, testing standards, a variety of
testing equipment and instrument etc, It can detect and identify the PCB quality and service life.
f) Can be assembled. PCB products not only facilitate the standardized assembly of various
components,but also can be automated, large-scale mass produced. At the same time, PCB and
its assembled components can be also assembled to form a larger component, system, until the
whole machine.
g) Maintainability. As PCB products and various components of the assembly are standardized
design and large-scale production, and thus, these assembled components are standardized.
So once the system fails, it can be fast, convenient and flexible replaced, quickly restore the
service system.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
