Electronics PCB Board 6 Layer Via with Epoxy Resin
| Price: |
US $ 0.72/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1039R3.9 |
| Surface Finish: |
Immersion Gold |
| Board Thickness: |
1.1mm |
| Soldermask Color: |
Green |
| Final Foil External: |
1 Oz |
| Silkscreen Color: |
White |
| Minimum Trace and Space: |
4 Mil/4 Mil |
| Minimum/Maximum Holes: |
0.2/1.3mm |
| Via: |
Via Pluged by Epoxy Resin |
| Test: |
100% Electrical Test |
| Board Plating: |
0.0030" |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multi Layer PCB Board 6 Layer Printed Circuit Board Via in Pad With Immersion Gold
Applied In GPS
Commodity Introduction

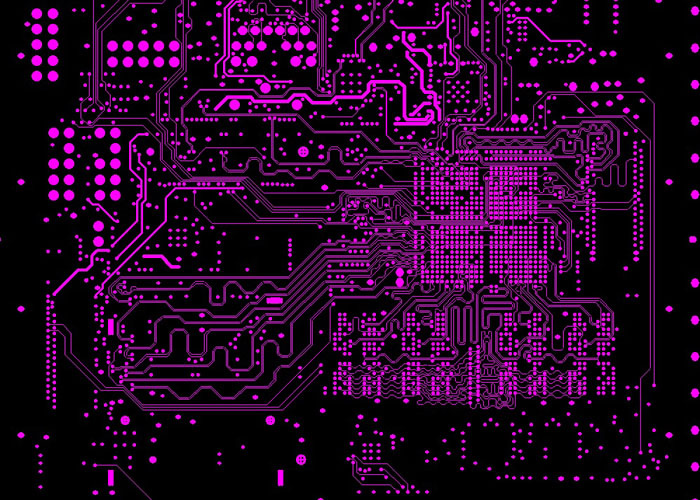

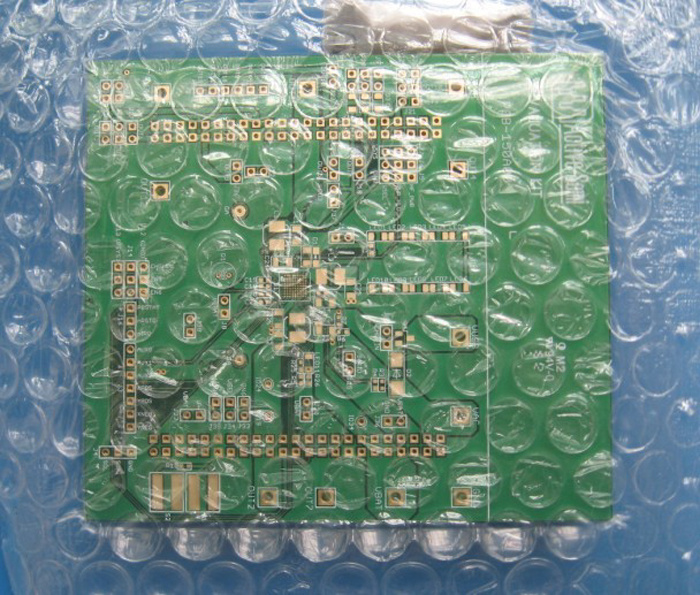

This is a type of FR-4 PCB for the application of GPS.It's a 6 layer board at 1.1mm thick. The base
laminate is from ShengYi Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class

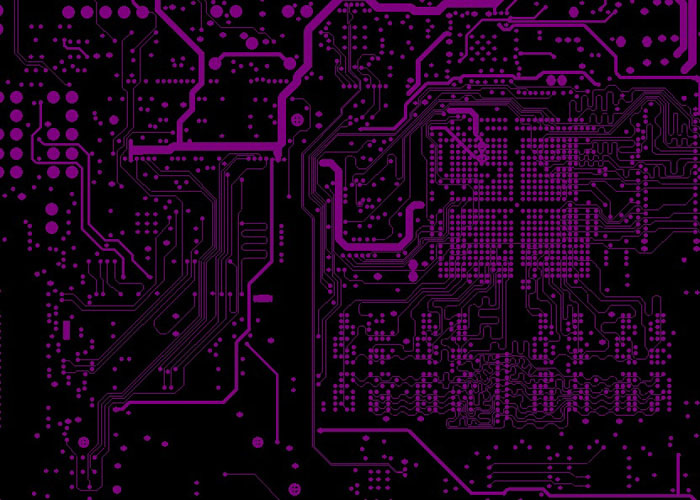

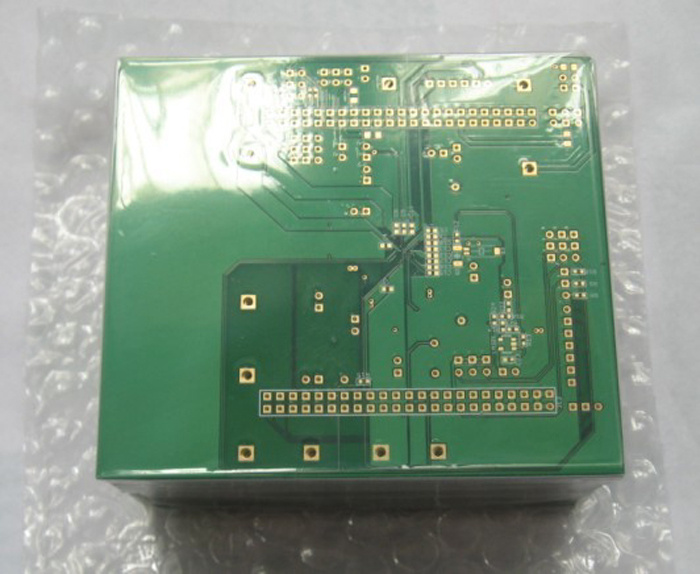

2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 93.25 x 104.12mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 6 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz) MidLayer 1 |
| FR-4 0.1mm |
| copper ------- 18um(0.5oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz) MidLayer 3 |
| FR-4 0.1mm |
| copper ------- 18um(0.5oz) MidLayer 4 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.2/1.3mm |
| Number of Different Holes: | 11 |
| Number of Drill Holes: | 9840 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 S1140, Tg 135. CTI 175V-249V |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.1mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (19.1%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via pluged by
epoxy resin. Via in pad. Blind via from top
to inner layer 2 |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | GPS, Grid Tie Inverter
Electric Motors
Tracking Device
Wireless Security System
Access Control |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Printed circuit boards - Bicheng PCB
Bicheng Enterprise company offers single sided / double sided and multilayer circuit boards. We
have been serving PCB electronics industry in Shenzhen, China since 2003.
Our advantages
* Your satisfied source to buy printed circuit boards (PCBs)
* All PCBs are 100% tested (flying probe or fixture test)
* Free panelizing
* Special price for partners
* On time delivery
* No minimum order quantity
* Worldwide shipping, door to door service
Our products
* PCB Prototypes and PCB Production
* Rigid PCB Fabrication
* Flexible PCB (FPC)
* PCB up to 32 layers
* RoHS complaint, Lead free PCBs
* Material: FR-4, High Tg (Tg170, Tg180), RO4350B, RO4003C, Polyimide
* Controlled Impedance
* Surface finish: HASL, HASL lead free, Immersion tin, Immersion silver, Immersion gold, gold
finger
* Blind vias
* 3 days to 4 weeks lead time
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
