Electronics PCB Board Making 6 Layer Impedance Controlled PCB Design
| Price: |
US $ 2.21/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-142-V1.42 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Surface Finish: |
Immersion Gold |
| Final Height Of PCB: |
1.6mm |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Minimum Trace And Space: |
4.9 Mil/8.84 Mil |
| Minimum / Maximum Holes: |
0.3/5.251mm |
| Test: |
100% Electrical Test |
| Impedance Control: |
Singletrace,50 Ohm. Differential Pairs,85 Ohm |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |

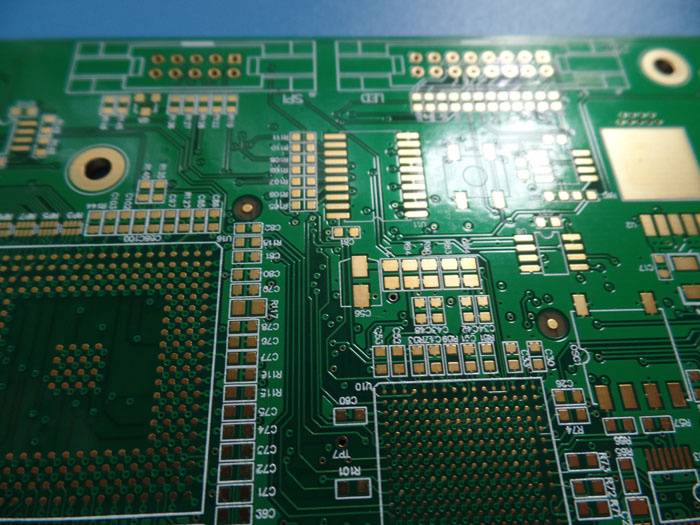

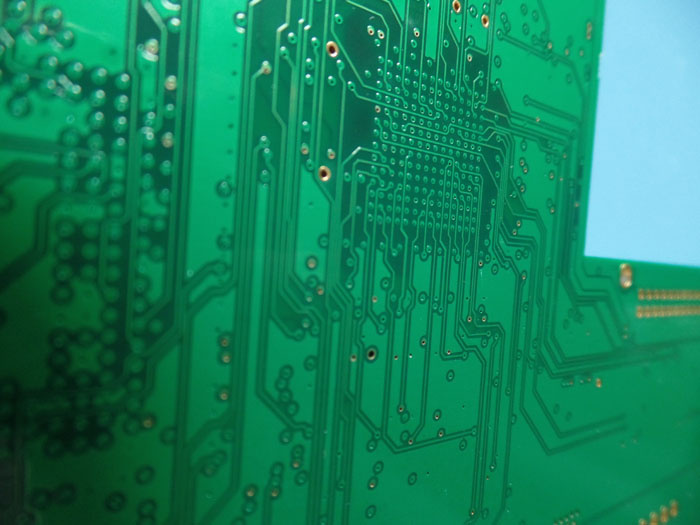

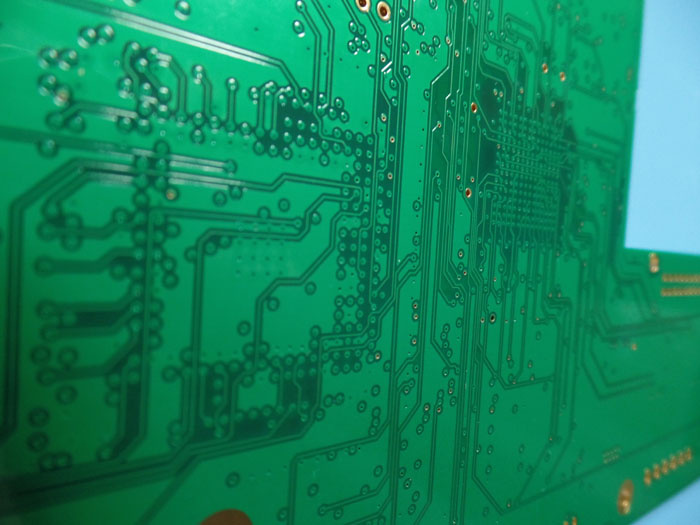

Product Description
6 Layer Printed Circuit Board High Quality FR-4 High Tg Immersiong Gold With Impedance Controlled Applied In Embedded Controller
Commodity IntroductionThis is a type of FR-4 PCB for the application of Embedded Controller. It's a 6 layer board at 1.6mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using
supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 142 x 99.5mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 6 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 0.4mm |
| copper ------- 35um(1oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35um(1oz) MidLayer 3 |
| FR-4 0.4mm |
| copper ------- 35um(1oz) MidLayer 4 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4.9mil/8.84mil |
| Minimum / Maximum Holes: | 0.3/5.251mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 526 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | Single Trace Impedance Control, L1, L6, 5mil, 50Ohm.
Differential Pairs Impedance Control, L1, L3, L5 5.1/8mil
85Ohm |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG170ºC, er<5.4. ITEQ Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05µm over 3µm Nickel (15.2% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 KX700G, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP And Bottom. |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Embedded controller, Bluetooth Printer Adapter
GSM/GPRS/GPS Tracker
RF Transceiver
Wireless Module
Electronic Counter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
