Electronics PCB Board RO4003c 0.8mm Thick Printed Circuit Board Design
| Price: |
US $ 1.21/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BIC-101-V1.01 |
| Final Foil External: |
1.5 Oz |
| Surface Finish: |
HASL, Lead Free |
| Final Height Of PCB: |
0.8mm |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
5.7 Mil/6.8 Mil |
| Minimum / Maximum Holes: |
0.45/6.6mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4003c 32 Mil 0.813mm |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
Electronics Microwave High Frequency printed Circuit Board RO4003C 32mil Green Solder
Mask PCB Board Applied In Relay Station design
Commodity Introduction

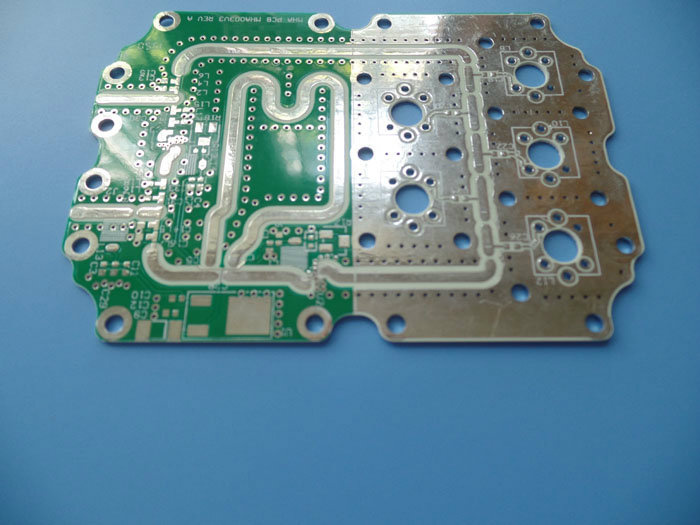

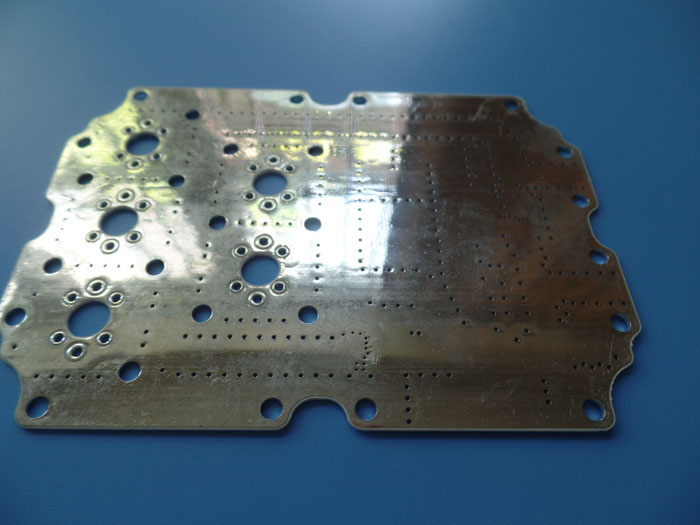

This is a type of RO4003C PCB for the application of Relay Station. It's a 2 layer board at
0.8mm thick. The base laminate is from ROGERS CORP., Solder mask and silkscreen from
Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or
panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 76 x 52mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+PLATE |
| RO4003C 32 mil 0.813mm |
| copper ------- 35um(1oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.7mil/6.8mil |
| Minimum / Maximum Holes: | 0.45/6.6mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 138 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4003C 32mil (0.813mm), Tg 288ºC |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.8mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | HASL ,Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), Via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Relay Stations, DC Converter
Micro Atx Power Supply
Rf Power Amplifier
PLCs
Car Tracking |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Design For Manufacturability
This manufacturability guide provides an overview of various areas that printed circuit board
designer may take into consideration on the fabrication possibility, manufacturing cost and
reliability of their products. This DFM is divided into 5 parts for our readers.
