Electronics RF PCB High Frequency 2 Layer RO4350b Circuit Board
| Price: |
US $ 1.25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-403-V4.03 |
| Board Thick: |
0.8mm |
| Copper Thick: |
1 Oz |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Space: |
11 Mil/97 Mil |
| Maximum Holes: |
0.3/2.8mm |
| Via: |
Via Tented |
| Board Plating: |
0.0030" |
| Test: |
100% Electronic |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description

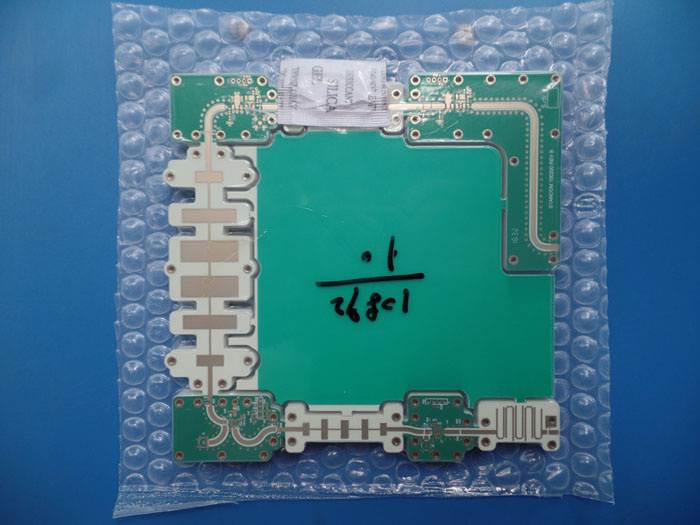

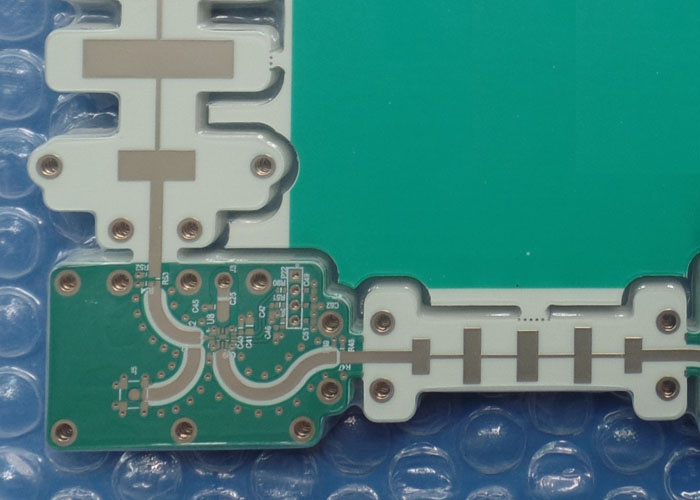

High Frequency PCB RO4350B 0.8mm Thick Printed Circuit Board with Immersion Gold PCB Applied In Balanced Amplifier
Commodity Introduction
This is a type of RO4350B PCB for the application of Balanced Amplifier. It's a 2 Layer board at 0.8mm thick. The base laminate is from Rogers Corp. Solder mask and silkscreen from Nan Ya and Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 boards are packed separately.
Parameter & Data sheet| PCB SIZE | 193 x 192mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17.8 um(0.5 oz)+plate TOP layer |
| RO4350B 30 mil (0.762mm) |
| copper ------- 17.8 um(1 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 11 mil /97 mil |
| Minimum / Maximum Holes: | 0.3/2.8mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 195 |
| Number of Milled Slots: | 5 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | No |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B 30 mil (0.762mm), Tg 288ºC |
| Final foil external: | 1 oz |
| Final foil internal: | 0 oz |
| Final height of PCB: | 0.8mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (16.2%) 2 micoinch over 100 microinch nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, NAN YA, LP-4G/G-05 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Balanced amplifier, Usb Adapter
Modems
Led Lighting
Power Amplifier
Wireless Adapter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
