Eltek Micropack 12/120 Wor 241120.300 12V 120W Rectifier Module

Eltek Micropack 12/120 Wor 241120.300 12V 120W Rectifier Module
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: Micropack 12/120 WOR
Input Vol Range: 85-300 VAC
Power (Maximum): 120W
Current (Maximum): 10A
Voltage (Default): 13.6 VDC
Voltage Sense, System Voltage Support: 12.0-18.0VDC
Dimensions: 39.0 X 88.5 X 149mm
Weight: 0.5 Kg (1.1lbs)
Task: Adjust
Structure: Combination
Mathematical Model: Non-Linear
Signal: Continuous
Condition: New
Customized: Non-Customized
Function: Provide 48VDC Output
Certification: UL, CSA, IEC60950-1
Material: Metal, Electronic Components

Product Description

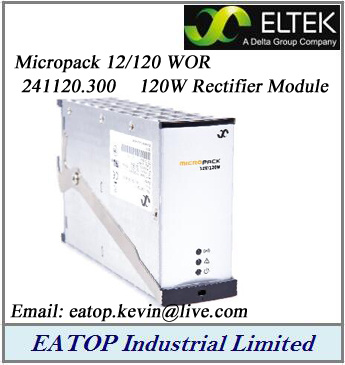

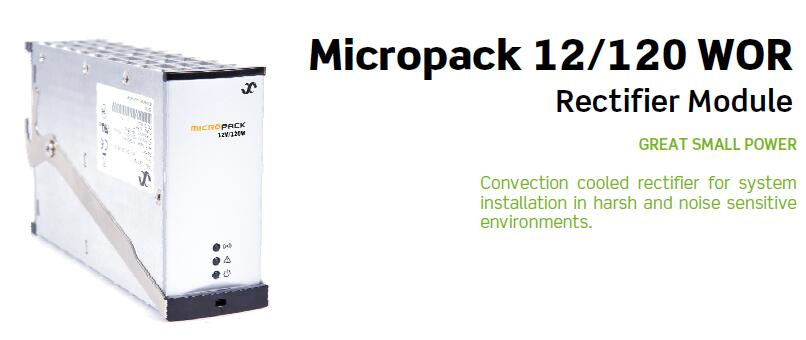

Eltek Micropack 12/120 WOR 241120.300 12V 120W rectifier module

Eltek Valere Eltek Valere
Micropack 12/120 WOR 241120.300
Rectifier module

Part No. : 241120.300


ELTEK 241120.300 Brief:




ELTEK 241120.300 Micropack 12/120 WOR Features:

Wide ranges of both input voltage and operating temperature give the system superior system availability with extendable system blocks and high current ability for selective fuse tripping.

The Micropack 12V/120W is a power supply for small power systems. Suitable for load ranges typically between 120W and 480W. Perfect for control cabinets, safety systems and building automation applications.

Whether you are in need of a simple stand alone power supply or a complete power system with battery backup, distribution, remote control and monitoring, the Micropack family is the perfect choice. Its modularity with DIN rail mountable building blocks allows for high flexibility, on site configuration and assembly.

Micropack rectifiers are CE marked and UL recognized. Accompanied by a small DIN railed mounted filter the rectifiers can also be used in marine and offshore applications.

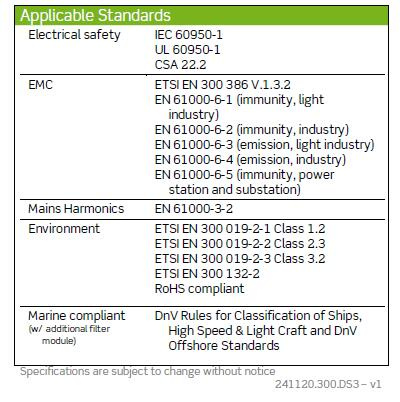

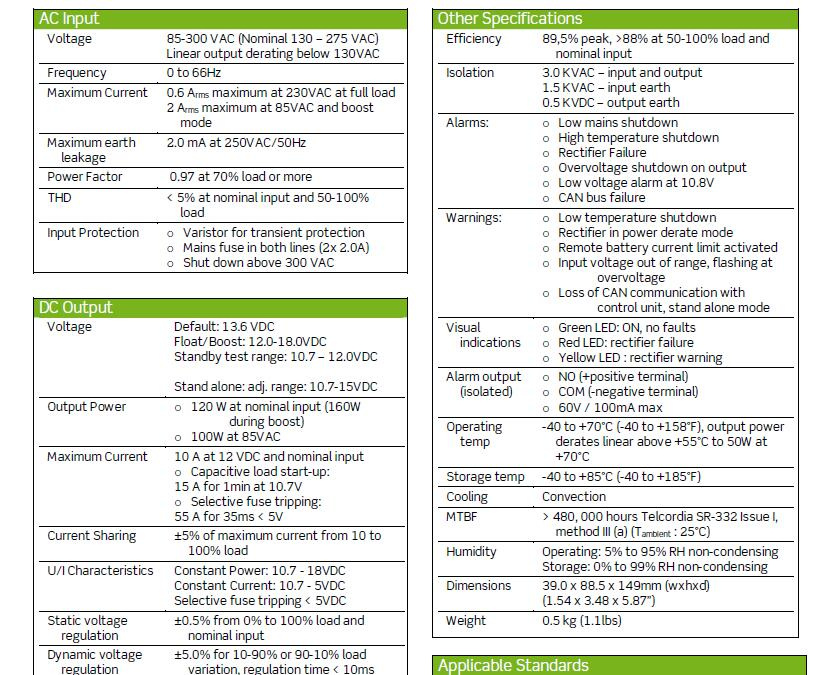

Specifications:

Micropack 12/120 WOR 241120.300

Dimensions:  39.0 x 88.5 x 149mm (wxhxd)
             (1.54 x 3.48 x 5.87")

Weight: 0.5 kg (1.1lbs)







Part No.
Micropack 12/120 WOR 241120.300
Eltek Micropack 12/120 WOR 241120.300 12V 120W rectifier module

Part No.     Description:
241120.300   Micropack 12/120 WOR
241120.900   Stand alone DIN rail fixing
241120.930   Marine Filter
241120.901(2)   Micropack power core 2(4) rectifiers
241120.911      Bulk Feed (40A)
242100.400      Compack Controller
