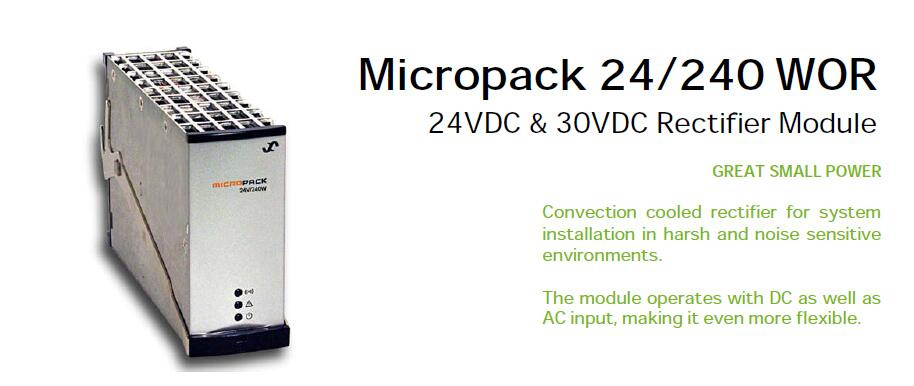

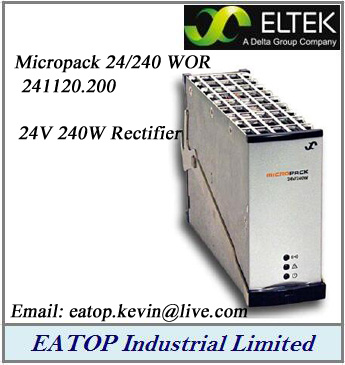

Eltek Micropack 24/240 Wor 241120.200 24V 240W Rectifier Module

Prod Model:	Micropack 24/240 WOR
Input Vol Range:	85-300 VAC
Power (Maximum):	240W
Current (Maximum):	10A
Voltage (Default):	27.2 VDC
Voltage (Adjustable Range):	24 - 36 VDC
Efficiency:	92 %
Dimensions:	39 X 88.5 X 149mm
Weight:	0.5 Kg (1.1lbs)
Task:	Adjust
Structure:	Combination
Mathematical Model:	Non-Linear
Signal:	Continuous
Condition:	New
Customized:	Non-Customized
Function:	Provide 48VDC Output
Certification:	UL, CSA, IEC60950-1
Material:	Metal, Electronic Components

Product Description

Eltek Micropack 24/240 WOR 241120.200 24V 240W rectifier module

Eltek Valere Eltek Valere
Micropack 24/240 WOR 241120.200
24V 240W Rectifier

Part No. : 241120.200

Micropack 24/240 WOR Brief:





Eltek Micropack 24/240 WOR Application:

With an output voltage range of 21.5-36VDC, the Micropack 24/240 WOR covers both traditional 24 and 30VDC systems as well as 24V system with NiCad batteries which requires high boost charging voltage.

Wide ranges of both input voltage and operating temperature give the system superior availability. High current ability for selective fuse tripping, keeps the other load running when there is a short circuit in a load branch. Micropack rectifiers are also designed to have the highest possible immunity level and fulfill the IEC61000-6-5 (immunity, power station and substation) which is unique in the Industry.

The Micropack 24V/240W is a power supply for small power systems. Suitable for load ranges typically between 240W and 960W. Perfect for control cabinets, safety systems and building automation applications.

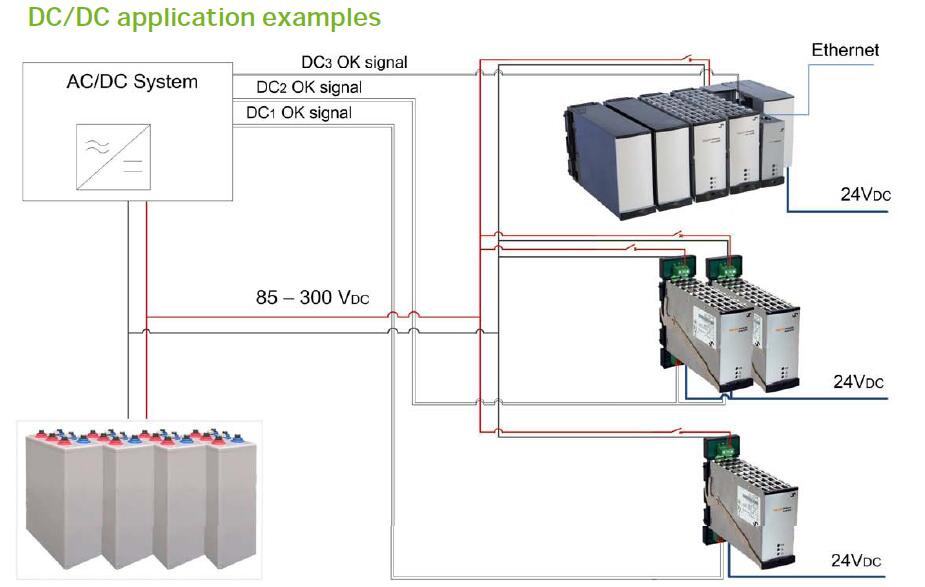

Whether you are in need of a simple standalone power supply or a complete power system with battery backup, distribution, remote control and monitoring, the Micropack family is the perfect choice. Its modularity with DIN rail mountable building blocks allows for high flexibility, on site configuration and assembly.

Micropack rectifiers are CE marked and UL recognized. Accompanied by a small DIN railed mounted filter the rectifiers can also be used in marine and offshore applications.

Eltek 24V 10A Rectifier module Application:

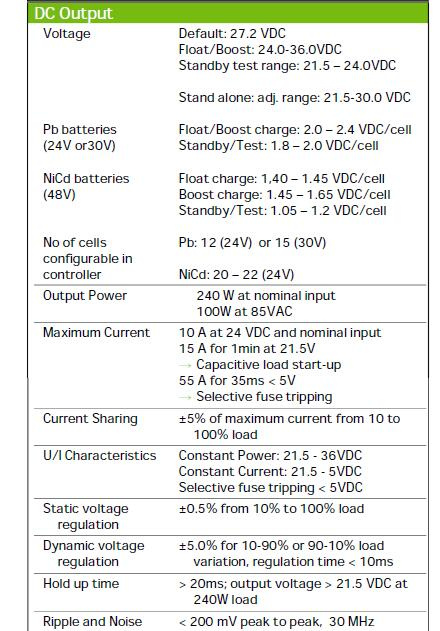

Specifications:

220V to 24Vdc 240W output.

Dimensions:  39 x 88.5 x 149mm (wxhxd)
             (5.2 x 3.3 x 14.3")
Weight: 0.5 kg (1.1lbs)









Part No.
Micropack 24/240 WOR 241120.200
Eltek Micropack 24/240 WOR 241120.200 24V 240W rectifier module

Part No.:
241120.200   Micropack 24/240 WOR
241120.900   Stand alone DIN rail fixing
241120.930   Marine Filter
CTOU0x02.xxxx   CTO configured Micropack system
