Em (YX3) Series High Efficiency Three-Phase Induction Motor

Name: Em (YX3) Series High Efficiency Three-Phase Induction Motor
Brand: all-electronics-online.com
SKU: 730565342
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	US $ 15-350/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EM(YX3)
Housing:	Cast Iron Housing
Voltage:	380V
Frequency:	50Hz
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce
Brand:	Bro

Product Description

YX3 Motor Features
1.Product Description

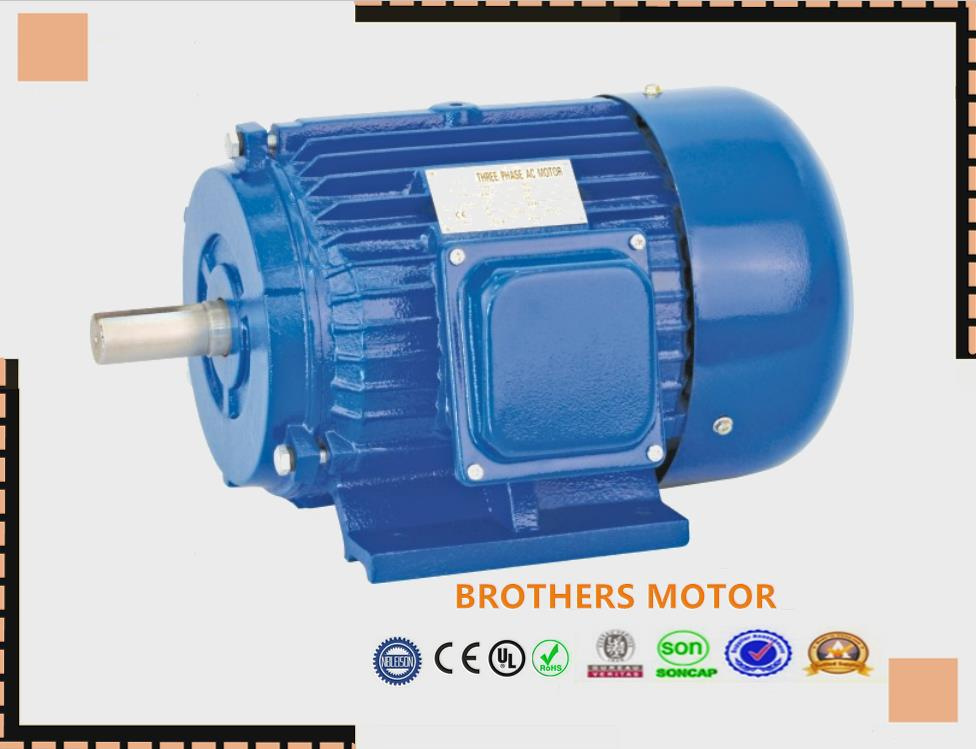

YX3 Series Three Phase Electric Motor
Electric motor frame from 56 - 355, output range from 0.17HP to 430HP
Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101)
(Electrical Motor, Electric Motor, Induction Motor, Asynchronous Motor, Capacitor Motor, Micro motor, Small Motor, Electromotor, Fan Motor, Gear Motor)

Electric motor frame from 56 - 355, output range from 0.17HP to 430HP
Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101)

2.Detailed Product Description

1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet

3.SPECIFICATIONS

1. Silicon steel DR510, 800, 600, 360 standard use stamping of lamination stator and rotor die-casting
2. 100% copper winding and inserting stator (manual and semi-automatically)
3. Stator Vacuum impregnation and drying
4. CNC machining motor shaft, frame, end shields, etc
5. Professional workman inspecting spare parts every processing
6. Electric motor assembly product line
7. Electric motor will 100% test before painting.
8. Electric motor spray-paint on motor painting product line
9. Electric motor will 100% check again before packing.
An electric motor from material to finish motor, must pass 15 time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load and check the nameplate, packing. Finally shipping to our customer.

4.Standard features:

Cast iron Frame: 80-315L

Mounting type: B3

Power: 0.55kw(0.75HP)-200kw(270HP)

Squirrel cage rotor/Aluminium die cast

Continous duty: S1

Protection grade: IP55

Insulation class: F

Voltage: 380V

Optical features

Aluminium frame 63-132M

Mounting type: B5/B14

Special voltages 220V, 660V

Technical Data

Frame Size	POWER KW	HORSEPOWER HP	VOLTAGE V	CURRENT A	FREQUENCY HZ	SPEED R/MIN	EFFICIENCY %	POWER FACTOR COS	LOCKED-ROTOR CURRENT/RATED CURRENT	LOCKED -ROTOR TORQUE/RATED TORQUE	MAX TORQUE/RATED TORQUE	NOISE LwdB(A)
80M1-2	0.75	1	380	1.8	50	2830	75	0.84	6.5	2.2	2.3	71
80M2-2	1.1	1.5	380	2.5	50	2830	77	0.86	7	2.2	2.3	71
90S-2	1.5	2	380	3.4	50	2840	78	0.85	7	2.2	2.3	75
90L-2	2.2	3	380	4.7	50	2840	82	0.86	7	2.2	2.3	75
100L-2	3	4	380	6.4	50	2880	82	0.87	7	2.2	2.3	79
112M-2	4	5.5	380	8.2	50	2890	85.5	0.87	7	2.2	2.3	79
132S1-2	5.5	7.5	380	11.1	50	2900	85.5	0.88	7	2	2.2	83
132S2-2	7.5	10	380	15	50	2900	86.2	0.88	7	2.2	2.2	83
160M1-2	11	15	380	22	50	2930	87.2	0.88	7	2	2.2	87
160M2-2	15	20	380	29	50	2930	88.2	0.88	7	2	2.2	87
160L-2	18.5	25	380	36	50	2930	89	0.89	7	2	2.3	87
180M-2	22	30	380	42.2	50	2940	89	0.89	7	2	2.2	92
200L1-2	30	40	380	57	50	2950	90	0.89	7	2	2.2	95
200L2-2	37	50	380	70	50	2950	90.5	0.89	7	2	2.2	95
225M-2	45	60	380	84	50	2970	91.5	0.89	7	2	2.2	97
250M-2	55	75	380	103	50	2970	91.5	0.89	7	2	2.2	97
280S-2	75	100	380	140	50	2970	91.5	0.89	7	2	2.2	99
280M-2	90	120	380	167	50	2970	92	0.89	7	2	2.2	99
315S-2	110	150	380	203	50	2980	92.5	0.89	7	1.8	2.2	104
315M-2	132	180	380	242	50	2980	93	0.89	7	1.8	2.2	104
315L1-2	160	220	380	292	50	2980	93.5	0.89	7	1.8	2.2	104
315L2-2	200	270	380	365	50	2980	93.5	0.89	7	1.8	2.2	104
80M1-4	0.55	0.75	380	1.5	50	1390	73	0.76	6	2.2	2.3	67
80M2-4	0.75	1	380	2	50	1390	74.5	0.76	6	2.2	2.3	67
90S-4	1.1	1.5	380	2.8	50	1400	78	0.78	6.5	2.3	2.3	67
90L-4	1.5	2	380	3.7	50	1400	79	0.79	6.5	2.3	2.3	67
100L1-4	2.2	3	380	5	50	1420	81	0.82	7	2.2	2.3	70
100L2-4	3	4	380	6.8	50	1420	82.5	0.81	7	2.2	2.3	70
112M-4	4	5.5	380	8.8	50	1440	84.5	0.82	7	2.2	2.3	74
132S-4	5.5	7.5	380	11.7	50	1440	85.5	0.84	7	2	2.3	78
132M-4	7.5	10	380	15	50	1440	87	0.85	7	2.2	2.3	78
160M-4	11	15	380	23	50	1460	88	0.84	7	2.2	2.3	82
160L-4	15	20	380	30	50	1460	88.5	0.85	7	2.2	2.2	82
180M-4	18.5	25	380	35	50	1470	91	0.86	7	2	2.2	82
180L-4	22	30	380	43	50	1470	91.5	0.86	7	2	2.2	82
200L-4	30	40	380	57	50	1470	92.2	0.87	7	2	2.2	84
225S-4	37	50	380	70	50	1480	91.8	0.87	7	1.9	2.2	84
225M-4	45	60	380	84	50	1480	92.3	0.88	7	1.9	2.2	84
250M-4	55	75	380	103	50	1480	93	0.88	7	2	2.2	86
Y280S-4	75	100	380	140	50	1480	93	0.88	7	2	2.2	90
280M-4	90	120	380	164	50	1480	93.5	0.88	7	2	2.2	90
315S-4	110	150	380	201	50	1480	93.5	0.89	7	1.8	2.2	98
315M-4	132	180	380	240	50	1490	94	0.89	7	1.8	2.2	101
315L1-4	160	220	380	289	50	1490	94.5	0.89	7	1.8	2.2	101
315L2-4	200	270	380	361	50	1490	94.5	0.89	7	1.8	2.2	101
90S-6	0.75	1	380	2.3	50	910	72.5	0.7	5.5	2	2.2	65
90L-6	1.1	1.5	380	3.2	50	910	73.5	0.72	5.5	2	2.2	65
100L-6	1.5	2	380	4	50	940	77.5	0.74	6	2	2.2	67
112M-6	2.2	3	380	5.6	50	940	80.5	0.74	6	2	2.2	67
132S-6	3	4	380	7.3	50	960	83	0.76	6.5	2	2.2	71
132M1-6	4	5.5	380	9.4	50	960	84	0.77	6.5	2	2.2	71
132M2-6	5.5	7.5	380	12.6	50	960	85.3	0.78	6.5	2	2.3	71
160M-6	7.5	10	380	17	50	970	86	0.78	6.5	2	2	75
160L-6	11	15	380	25	50	970	87	0.78	6.5	2	2	75
180L-6	15	20	380	31	50	970	89.5	0.81	6.5	1.8	2	78
200L-6	18.5	25	380	45	50	970	89.8	0.83	6.5	1.8	2	78
200L1-6	22	30	380	34	50	970	90.2	0.83	6.5	1.8	2	78
200L2-6	30	40	380	60	50	980	90.2	0.85	6.5	1.7	2	81
225M-6	37	50	380	72	50	980	91	0.86	6.5	1.6	2	87
280S-6	45	60	380	85	50	980	93.5	0.86	6.5	1.6	2	87
280M-6	55	75	380	104	50	980	92	0.86	6.5	1.6	2	88
315S-6	75	100	380	141	50	990	93	0.87	6.5	1.6	2	88
315M-6	90	120	380	169	50	990	93.5	0.87	6.5	1.6	2	88
315L1-6	110	150	380	205	50	990	92	0.87	6.5	1.6	2	89
315L2-6	132	180	380	245	50	990	92.5	0.87	6.5	1.6	2	89
112M-8	2.2	3	380	4.8	50	710	73	0.66	5.5	2	2	63
160M1-8	4	5.5	380	9.9	50	720	84	0.73	6	2	2	69
160M2-8	5	7.5	380	13	50	720	85	0.74	6	2	2	69
160L-87	7.5	10	380	8	50	720	86	0.75	5.5	2	2	72
180L-8	11	15	380	25	50	730	86.5	0.77	6	1.7	2	72
200L-8	15	20	380	34	50	730	88	0.76	6	1.8	2	75
225S-8	18.5	25	380	41	50	730	89	0.76	6	1.7	2	75
250M-8	30	40	380	63	50	730	90.5	0.8	6	1.6	2	88
280S-8	37	50	380	78	50	740	92	0.8	6.5	1.6	2	88
280M-8	45	60	380	93	50	740	92.5	0.8	6.5	1.6	2	89
315S-8	55	75	380	113	50	740	92	0.8	6.5	1.6	2	89
315M-8	75	100	380	152	50	740	92.5	0.81	6.5	1.6	2	89
315L1-8	90	120	380	179	50	740	92.5	0.82	6.5	1.6	2	89
315L2-8	110	150	380	218	50	740	92.5	0.82	6.5	1.6	2	89

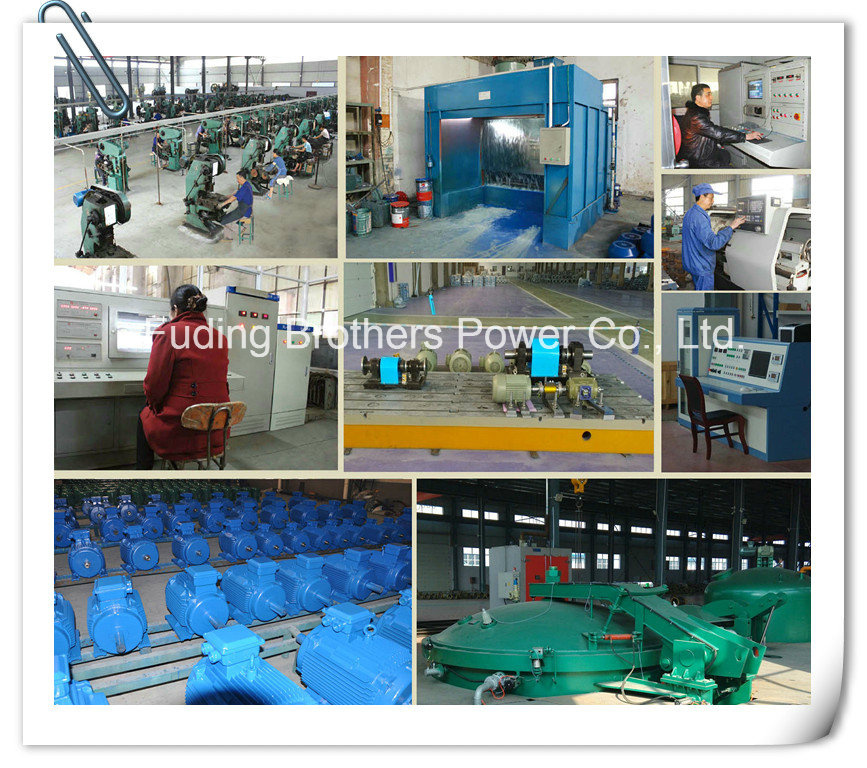

5.PUNCH-TESTING-WORKSHOP

Why us?

1.Low MOQ: It can meet your promotional business very well.

2.Good Service : We treat clients as friends,offering 24 hrs a days 7days a week service support.

3.Good Quality :We have strict quality control system.Good reputation in the market.

4.Fast & Cheap Delivery: We have big discount from forwarder.

FAQ

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: About 30 days after receiving deposit or original L/C.
