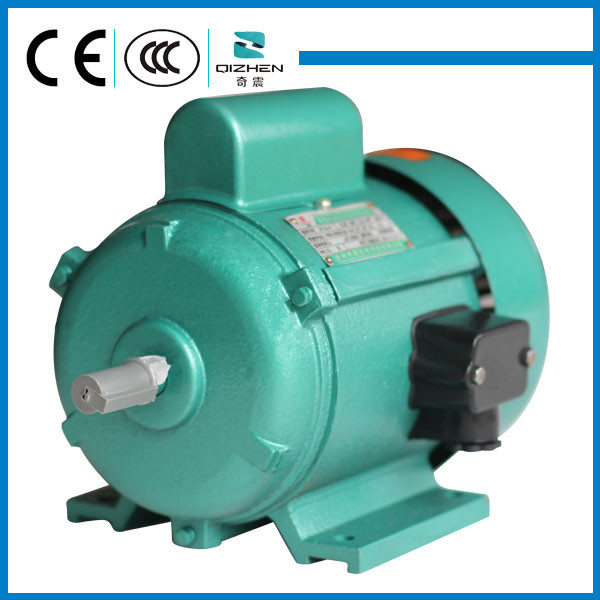

Energy saving JY series small powerful electric motors
| Price: |
US $ 45/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JY |
| Frame: |
Jy09~3A |
| Housing: |
Cast Iron |
| Protection Class: |
IP44 |
| Insulation Class: |
F |
| Core Wire: |
Copper |
| Pole: |
2p, 4p |
| Duty: |
S1 |
| Mounting: |
B3 |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Protection Type |
| Species: |
Single Phase |
| Starting Mode: |
Capacitor Starting |
| Brand: |
Qizhen |
Product Description
Additional Info
- Trademark: QIZHEN
- Packing: Carton for Motor Below Iec132 Frame or Wooden Case
- Standard: IEC
- Origin: Zhejiang, China
- Production Capacity: 1000000/PCS/Year
Product Description
Frame: Size 09, 1 and 2, are totally enclosed fan-cooled. The frames can be of cast iron or case aluminum.
Power: 1.1kw to 0.18kw
Protection class: IP44
Insulation class: F
Applications: Where a larger starting torque and a limited starting current are required, and can be used as driving motor of air compressors, refrigerators, medical apparatus and any other small machines which demand full load starting.
Npte: The motor is designed according to powersupplies 220V/110V, 50Hz, Special design may be accommodated with the customers, particalar requirements as 230V, 50Hz or 220V/110V, 60Hz, ect.
| Model | power | pole | volt | frequencuy | effiency | power factor | startingtorque | max torque |
| Kw | Hp | speed r/min | Hz | % | rated torque | rate torque |
| JY2A-2 | 1.1 | 1.5 | 2/2850 | 220 | 50 | 0.77 | 71 | 2-3.5 | 1.8-2 |
| JY2B-2 | 0.75 | 1 | 2/2850 | 220 | 50 | 0.75 | 70 | 2-3.5 | 1.8-2 |
| JY2A-4 | 0.75 | 1 | 4/1400 | 220 | 50 | 0.68 | 69 | 2-3.5 | 1.8-2 |
| JY2B-4 | 0.55 | 3/4 | 4/1400 | 220 | 50 | 0.68 | 67 | 2-3.5 | 1.8-2 |
| JY1A-2 | 0.55 | 3/4 | 2/2800 | 220 | 50 | 0.72 | 66 | 2-3.5 | 1.8-2 |
| JY1B-2 | 0.37 | 1/2 | 2/2800 | 220 | 50 | 0.72 | 66 | 2-3.5 | 1.8-2 |
| JY1A-4 | 0.37 | 1/2 | 4/1400 | 220 | 50 | 0.62 | 64 | 2-3.5 | 1.8-2 |
| JY1B-4 | 0.25 | 1/3 | 4/1400 | 220 | 50 | 0.62 | 60 | 2-3.5 | 1.8-2 |
| JY09A-2 | 0.25 | 1/3 | 2/2800 | 220 | 50 | 0.72 | 63 | 2-3.5 | 1.8-2 |
| JY09B-2 | 0.18 | 1/4 | 2/2800 | 220 | 50 | 0.72 | 60 | 2-3.5 | 1.8-2 |
| JY09A-4 | 0.18 | 1/4 | 4/1400 | 220 | 50 | 0.62 | 56 | 2-3.5 | 1.8-2 |
Why us?
1.Low MOQ: It can meet your promotional business very well. 2.Good Service : We treat clients as friends,offering 24 hrs a days 7days a week service support. 3.Good Quality :We have strict quality control system.Good reputation in the market. 4.Fast & Cheap Delivery: We have big discount from forwarderFAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO,CCC certificates
Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.
Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.
With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.
In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
