| Prod Model: |
HLLA~03SI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
9.2-142.2 Kw |
| Power Supply: |
380-440V |
| Input Power: |
3.85-45.7 Kw |
| Refrigerant: |
R22,R407c,R410A,R134A |
| Evaporator: |
Shell and Tube Type |
| Chilled Water Flow: |
26.4-408.3 L/M |
| Unit Weight: |
130-1280kg |
| Noise: |
72-85 Db |
| Certification: |
CE |
| Type: |
Refrigeration Compressor |
| Usage: |
Ventilation |
| Control Type: |
Digital |
| Display Type: |
LCD |
| Material: |
Copper |
| Brand: |
Huali |
Product Description

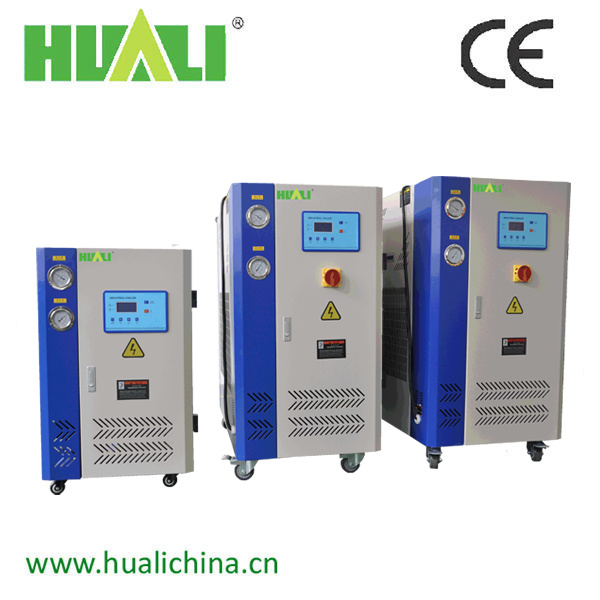

Small industrial water chiller;
1. The chiller adopt high-quality compressor and Italy pump, so it is very sate and noiseless, economical in power and durable
2. The chiller is deployed with Italy temperature controller, it can control the temperature between +3 and +35 degrees exactly
3. The designs of chiller and radiator are unique, so the heat exchange efficiency is very high
4. The chiller is designed to be with current over-load protector, high voltage and low voltage construction and electric time-delay safeguard, when malfunction happened, it could alarm and show the cause of the problem in time
5. It has stainless steel temperature-holder box, it is very convince to purify
6. It is designed to be with anti-phase & lack-phase protector and anti-icy protector
7. The temperature of ultra cod chiller can be below -15 degrees.
8. This series chiller can customize base on the requirement of acid resistant & acidity-resistant
9. It has got CE certification.
Water cooled water chiller similar types:
Water cooled chiller, industrial water cooled chiller, aquarium water chiller, industrial water chiller, chiller, laser water chiller, water cooling chiller, industrial water screw chiller, industrial chiller, water chiller systems, water cooled chiller, water cooling industry water chiller, Water cooled industrial chiller,
Air cooled water chiller similar types:
Air chiller, air cooled water chiller, air cooled industrial water chiller, air cooled scroll chiller, air cooled scroll chiller, air cooled mini chiller, air conditioning chiller, industry water chiller for laser, laser water chiller,
| Air-cooled Industry Water Chillers (Cooling Only) |
| Model | HLLA- | 03SI | 05SI | 08SI | 10SI | 12SI | 15SI | 20SI | 25DI | 30DI | 40DI |
| Refrigerant | Type | R407C |
| Rated Cooling capacity | KW | 8.9 | 14.7 | 26.0 | 29.0 | 33.5 | 44.7 | 58.0 | 67.0 | 89.4 | 113.0 |
| x1000kcal/h | 7.7 | 12.6 | 22.4 | 24.9 | 28.8 | 38.4 | 49.9 | 57.6 | 76.9 | 97.2 |
| Compressor | Iput power KW | 2.5 | 4.2 | 7.3 | 8.6 | 9.9 | 12.32 | 16.81 | 19.8 | 24.64 | 33.62 |
| Operation current A | 3.7 | 7.7 | 10 | 11.5 | 13.6 | 20 | 25 | 27.2 | 40 | 50 |
| Total power KW | 3.11 | 5.21 | 8.97 | 10.27 | 12.5 | 15.38 | 19.81 | 25 | 30.76 | 39.62 |
| Total current KW | 4.35 | 8.7 | 12 | 13.5 | 16.4 | 23.5 | 29.8 | 32.8 | 47 | 59.6 |
| Power supply | 3N AC380V 50Hz |
| Safety production Device | Phase reversion protection,phase lack protection,overload current protetion, discharge ait temp. protection,
Low/high pressure protection, low temp. protection,water flow protection |
| Fans | Iput power KW | 0.24 | 0.46 | 0.92 | 0.92 | 1.1 | 1.56 | 1.5 | 1.5 | 2.2 | 4.46 |
| Input current A | 0.65 | 1 | 2 | 2 | 2.8 | 3.5 | 4.8 | 4.8 | 5 | 10.6 |
| Condenser | Type | Efficiency Copper Pipe and aluminum foil wing heat exchanger |
| Evaporator | Chilled Water Flow L/min | 25.5 | 42.1 | 74.5 | 83.1 | 96 | 128.1 | 162 | 192.1 | 256.3 | 323.9 |
| Water pipe connection | DN25 | DN25 | DN40 | DN40 | DN40 | DN50 | DN50 | DN65 | DN65 | DN65 |
| Type | Pipe dry high efficiency heat exchanger |
| Chilled water pump | Input power KW | 0.37 | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Lift of outside of machine mH2O | 15 | 21 | 22 | 20 | 17 | 25 | 24 | 18 | 18 | 21 |
| Water tank indicating volume L | 75 | 75 | 125 | 125 | 145 | 250 | 250 | 325 | 365 | 400 |
| Dimension | L mm | 1150 | 1150 | 1505 | 1505 | 1505 | 1755 | 2220 | 2220 | 2820 | 2820 |
| W mm | 740 | 740 | 850 | 850 | 850 | 900 | 1025 | 1025 | 1125 | 1330 |
| H mm | 1375 | 1375 | 1475 | 1475 | 1550 | 1780 | 1970 | 2070 | 2070 | 2070 |
| Weight | Kg | 140 | 210 | 300 | 360 | 450 | 650 | 750 | 1050 | 1250 | 1350 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
