Enig Finish PCB Board 2 Layer Fr4 with Black Mask

Name: Enig Finish PCB Board 2 Layer Fr4 with Black Mask
Brand: all-electronics-online.com
SKU: 822915125
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	US $ 0.52/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-235-V2.35
Outer Copper Foil:	1 Oz
Board Thickness:	1.6mm
Surface Treament:	Enig
Solder Mask:	Black
Legend:	White
Min Line Width (Mil):	8 Mil
Min Line Spacing (Mil):	5.6 Mil
Warp-Twist:	0.9%
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

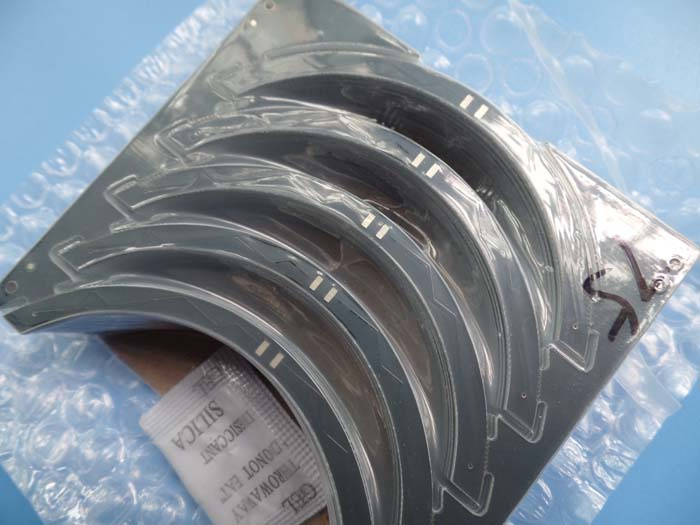

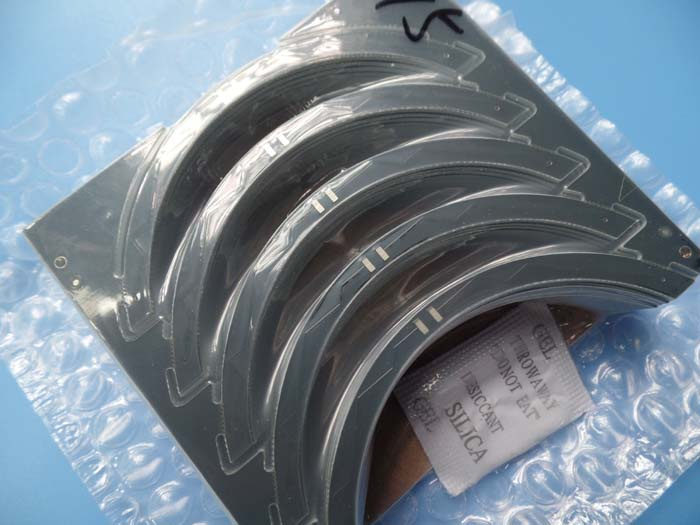

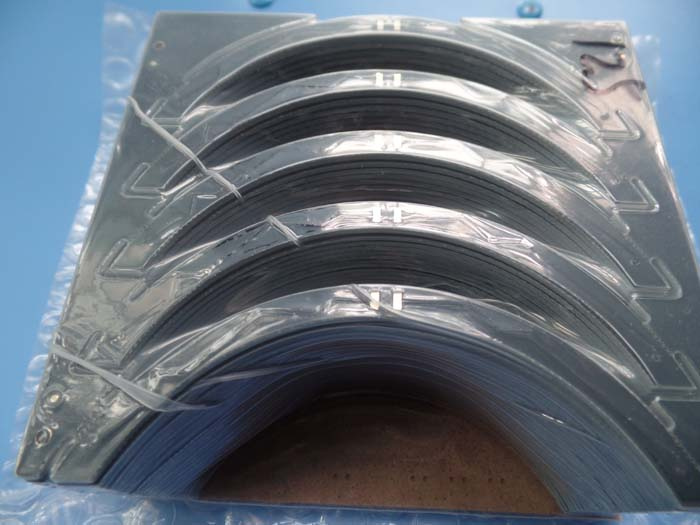

Arce shape Double sided PCB Tg 170 FR4 with Black Solder Mask and ENIG surface finish
in Panel for Solar Battery Charger

Commodity Introduction
This is a type of FR-4 PCB for the application of Solar Battery Charger. It's a 2 layer board at
1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.62-1.65mm
	Outer copper foil	>=35 um	43.37
	Inner copper foil	/	/
	Warp-twist	<= 0.75%	0.90%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS	CS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		7.8	8
Min line spacing (mil)		5.8	5.6
Min ring width (mil)		NA	NA
Solder Mask	Type	KSM-S6189BK31	KSM-S6189BK31
	Color	Black	Black
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	ENIG		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	116.99	117.11	116.97	116.99	116.97
2	120.98	120.87	121.10	120.97	120.89

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.650	Y	0.650	0.625	0.675	0.650
2	1.050	Y	1.050	1.025	1.075	1.050
3	1.150	Y	1.150	1.125	1.175	1.150
4	3.150	N	3.150	3.125	3.175	3.150

Learn PCB and Buy PCB

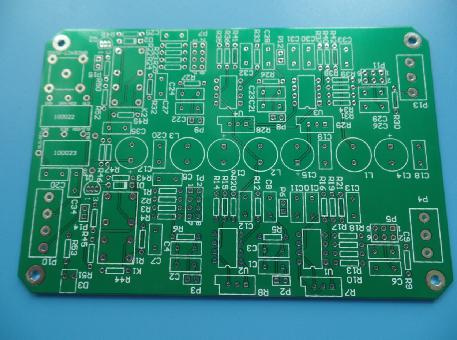

PCB Classification --- Double sided PCB

Both sides of the circuit board are wired, but to use the two sides of the wire, we must have the
proper circuit connection between the two sides. The "bridge" between the circuits is called the
pilot hole (via). The via is filled with or coated with a small hole in the PCB. It can be connected
to the two sides of the wire. Because double sided PCB is twice larger in area than a single sided
PCB, it solves the difficulty that wiring staggered in single side PCB (through hole conduction to
the other side). It is more suitable for use in circuits that are more complex than a single sided
board.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
