Enig Multilayer PCB 4 Layer Immersion Gold Circuit Board

Name: Enig Multilayer PCB 4 Layer Immersion Gold Circuit Board
Brand: all-electronics-online.com
SKU: 823171775
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	US $ 0.57/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-241-V2.41
Outer Copper Foil:	1 Oz
Board Thickness:	0.5mm
Surface Treamen:	Enig
Solder Mask:	Green
Legend Color:	White
Min Line Width (Mil):	5.2 Mil
Min Line Spacing (Mil):	5.8 Mil
Electrical Test:	100% PCB Passed
Visual Inspectio:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

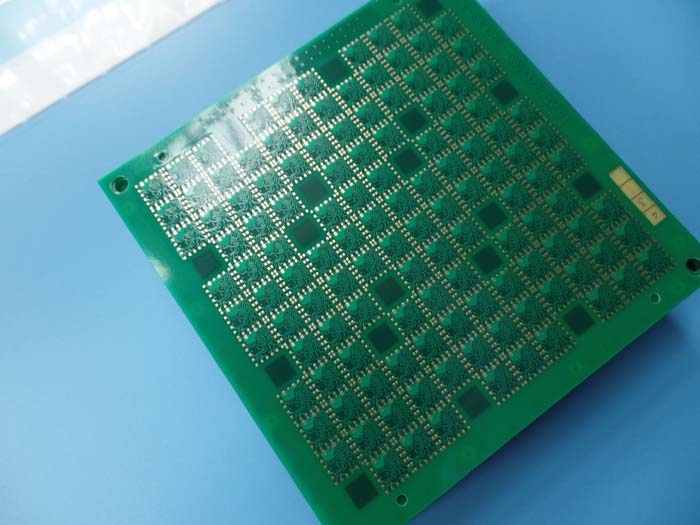

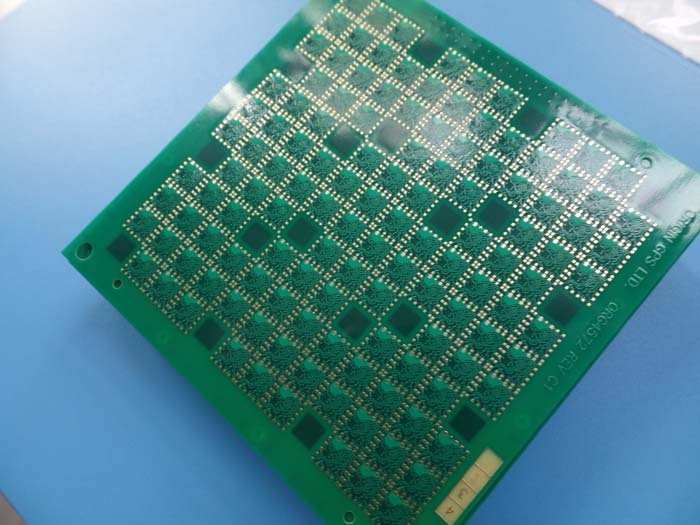

Thin 0.5mm thick Multilayer 4 Layer PCB FR4 1oz with Green Solder Mask and ENIG
in Wireless Router

Commodity Introduction
This is a type of FR-4 PCB for the application of Wireless Router. It's a 4 layer board at 0.5mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated

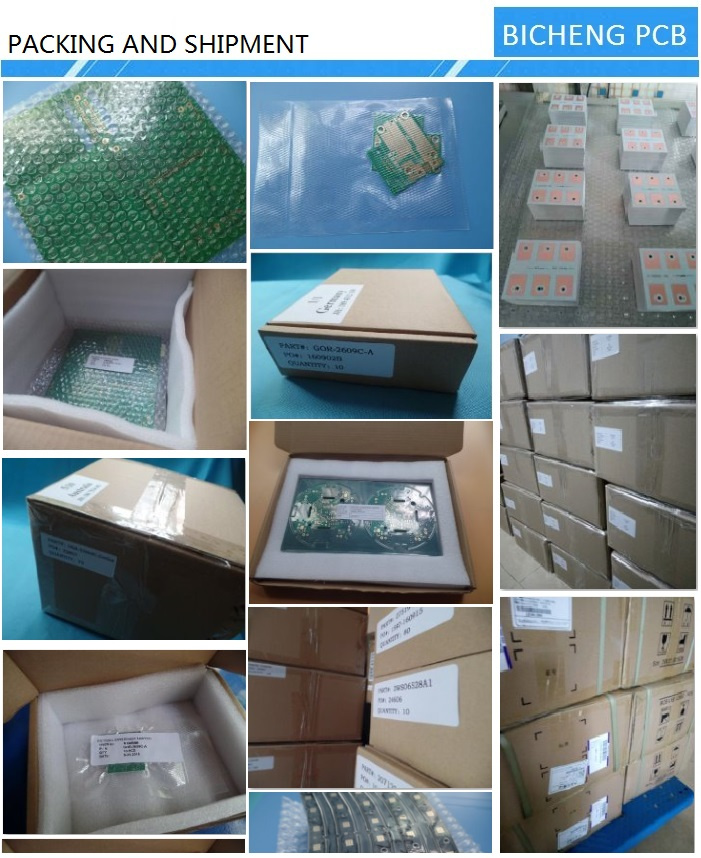

per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	0.5+/-10%mm	0.50-0.6mm
	Outer copper foil	>=35 um	42.58um
	Inner copper foil	1/1 OZ	1/1OZ
	Warp-twist	<= 0.75%	0.33%
Legend	Type	IJR-4000 MW300	IJR-4000 MW300
	Color	White	White
	Location	CS	CS
Marking	Co.logo	As requirement	OK
	UL.logo	As requirement	OK
	Date code	As requirement	OK
	Marking form	As requirement	OK
	Location	CS	CS
Min line width (mil)		5	5.2
Min line spacing (mil)		6	5.8
Min ring width (mil)		NA	NA
Solder Mask	Type	PSR-2000GT 600D	PSR-2000GT 600D
	Color	Green	Green
	Thickness	>=10 um	14 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treamen	ENIG		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	163.20	163.09	163.11	163.10	163.18
2	201.60	201.65	201.56	201.58	201.61

Learn PCB and Buy PCB
PCB fabrication Process
1). Contact PCB fabricator
Contact your satisfied vendor such as Bicheng. You're registered and will be quoted for you. Place
your order and follow up the production schedule.

2). Material cutting
Purpose: According to the requirement from engineering data, cut the large plate which is in
compliance with the requirement into small pieces of production board piece to meet customer
requirements of the small sheet.

3). Drill
Purpose: According to the requirement from engineering data, drill all the holes.

4). Copper deposition
Purpose: Copper deposition is a thin copper deposit on the wall of the insulating hole by chemical
method

5). Pattern transfer
Purpose: Pattern transfer is the transfer of image production on the film to the board

6). Pattern plating
Purpose: Pattern electroplating is a layer of copper or gold over nickel or tin that requires a
thickness plated on the exposed copper of the pattern graphic or on the hole wall.

7). Film stripping
Purpose: The NaOH solution is used to strip the anti-plating film to expose the non-pattern circuit
layer.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

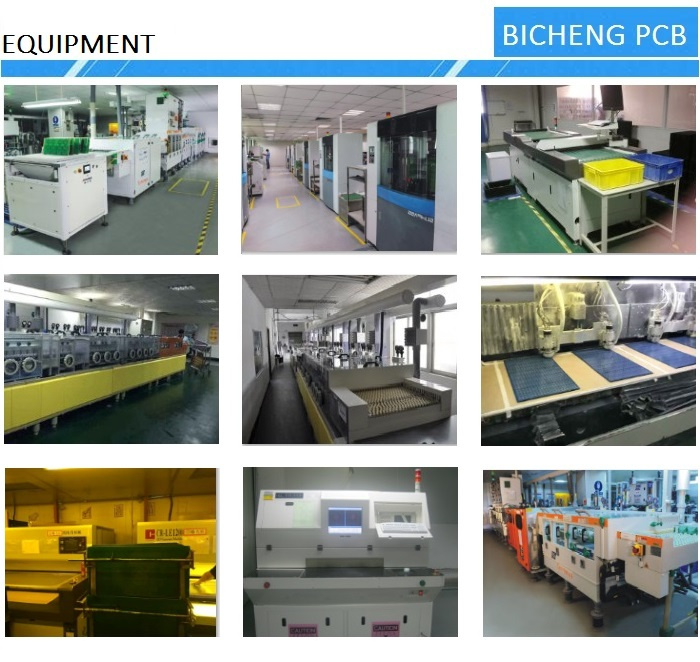

Different plant scale to suit for your requirements
