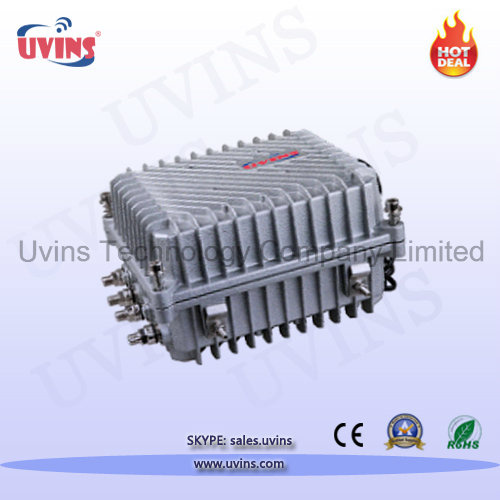

| Prod Model: |
UVE-502 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset: |
Ar7410, Opulan06750, Ar8328n |
| Operating Mode: |
Csma/Ca |
| Physical Rate: |
Physical Rate |
| Modulation Frequency: |
7.5 MHz - 67.5MHz |
| Maximum Connected Terminals: |
128 |
| Modulation Mode: |
Ofdm, 4096/1024/256/64/16 Qam, Qpsk, Bpsk |
| Ethernet Port: |
2*RJ45 |
| Coaxial Cable Port: |
4*F Type Female Ports |
| Pon Port: |
1 X Optical Port for Connecting to Data Network |
| Reflection Loss: |
>16dB |
| Type: |
Optical Fiber Distribution Box |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

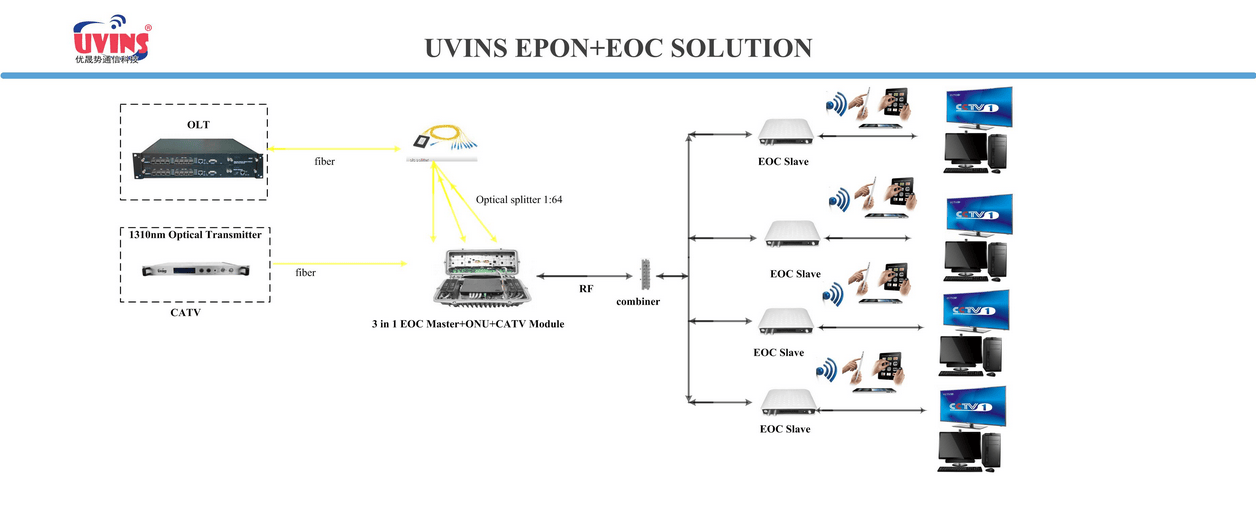

As an EoC office equipment based on HOMEPLUG AV, UVE-502 provides one EoC connector, one gigabit Ethernet port, and two RJ45 ports (one for console management and the other for device management). UVE-502 outputs mixed signals to coaxial cable distribution network and works with CNU, to form a solution scheme for last-one-hundred-meter high-speed Internet access network. This scheme achieves NGB (Next Generation Broadcasting Network) user broadband access and helps to bidirectionally reform cable television network broadband and make full use of existing broadband resources.
Features:* Support connecting to max of 128 terminal
* Support long distance transmission and built-in high performance filter module
* Provides and uplink GE port,a 10/100BASE-T port for device management and an Ethernet
port for console management
* Support a maximum physical transmission rate of 600Mbps
* Provides one EOC module,two CATV input port and two cable output ports
* Support modulation frequency in a range of 7.5MHz to 65Mhz without interference to the existing CATV signals
* Support VLAN(802.1Q),QoS(802.1p) and 1GMP protocols
* Support SNMP/WEB/CLI management
Technical Specification:System spec | |
Chipset | AR7410, Opulan06750, AR8328N |
Protocol | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,IEEE 1901 HTTP, SNMP, TELNET |
Physical Rate | 600 Mbps |
Modulation Frequency | 7.5 MHz - 67.5MHz |
Max. Number of Connected Terminals | 128 |
Modulation Mode | OFDM, 4096/1024/256/64/16 QAM, QPSK, BPSK |
Encryption Mode | 128-bit AES |
VLAN | 4K |
Port Rate Restriction | A minimum of 64 kbps |
QoS | Support VLAN priority Support CoS packet classification Support ToS(DSCP)packet classification |
Operating Mode | CSMA/CA |
Multicast Supported | Support IGMP managing multicast sessions |
Management Method | Support SNMP, WEB, and CLI management |
Port Spec | |
Ethernet Port | 2 x RJ45 for management, 1 x GE uplink port |
Coaxial Cable Port | 4 x F-type female ports (metric or imperial) for inputting CATV signals and outputting mixed signals. |
PON Port | 1 x optical port for connecting to data network |
LED | Power indicator Diag: Indicator for diagnosis Link: Link status indicator GE: GE port status indicator |
RF Spec | |
Impedance | 75 Ω |
Transmitting Power | 0±3 dBm |
Reflection Loss | > 16 dB |
Insertion Loss | < 1.2 dB |
Receiving Sensitivity | -65dBm |
General | |
Max. Power Consumption | ≤10W |
Power | 220V |
Operating Temperature | -30ºC-60ºC |
Storage Temperature | -40ºC-75ºC |
Humidity | Operating10%-90%, non-condensing ,Storage Humidity 5%-90% |
Physical Size | LxWxH: 233 mm x 192 mm x 102 mm |
Weight Green Standard | 2kgs RoHs |
