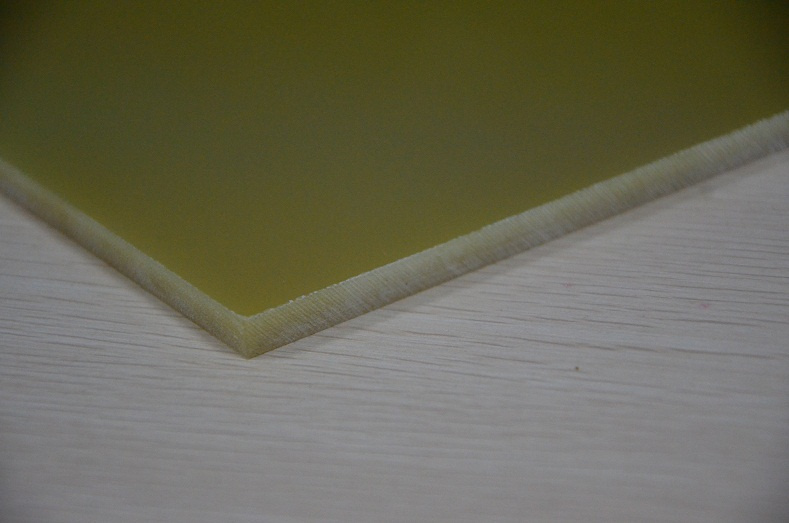

Epoxy Glass Cloth Laminated Yellowish Epgc 203

Prod Model:	epgc203 epgc308
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	1020*1220mm
Application:	Insulating Varnish
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Color:	Yellowish
Brand:	Nova

Product Description

Introduction:
In today's G11 laminate sheet is made up with a hight temperature epoxy making up the bulk of heavy sheet and then using finer glass cloth with high temperature resistant epoxy giving a high performance outer finish.
Today what is called FR5 is the Brominated flame retardant version of G 11. The FR 5 material can usually be used where G11 material is specified, however G11 Laminate should not be used where FR-5 is specified.

Applications:
High performance G11 for your extremely strict demand. It has Comparative Tracking Index (CTI) 600V, Halogen-free, Flame-resistance, and H-class heart-resistant, widely used in harsh conditions (high humidity, dusty, filthy).


Advantages:
*Temperture Index: 180 Degree Celsius
*Tracking Index(CTI) 600V
*Halogen-free
*Flame-resistance
*H-class heart-resistant


Specifications:
1) Grade: G11
2) Color: Green
3) Thickness range: 0.1mm~50mm
4) Sheet size: 1020*1220mm; 1220*2040mm
5) Min. Order Quantity: 1, 000kgs in a lot
