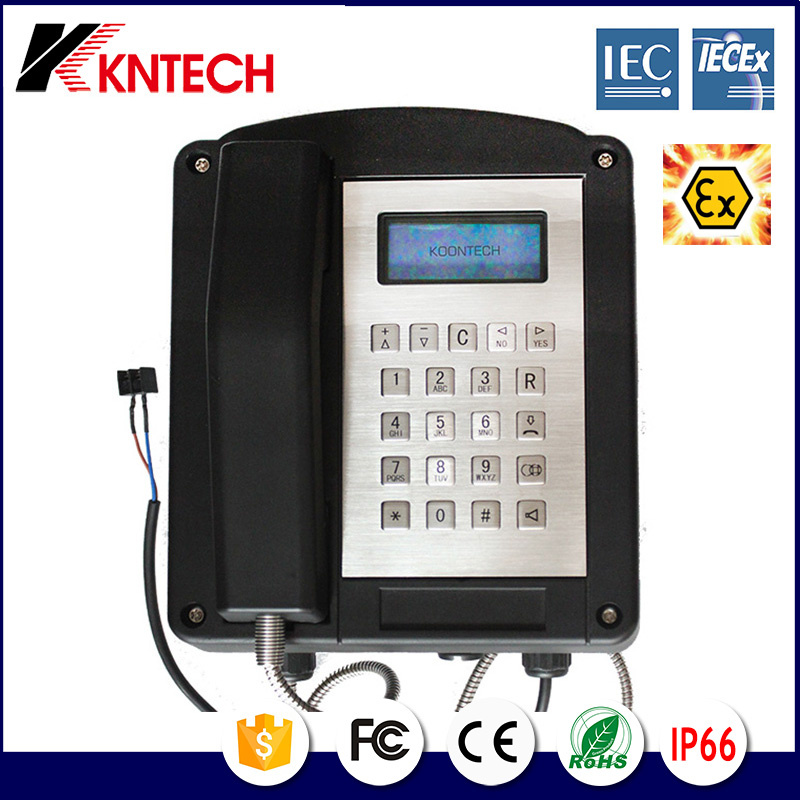

Explosion Proof Telephone Exproof Telephone Knex1 Emergency Telephone Kntech
| Price: |
US $ 500-600/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
Exproof telephone KNEX1 |
| Color: |
Black |
| Hook: |
Magnetic Reed Hook-Switch |
| Phone Book: |
50 Memory Address Number |
| Keypad: |
21 Digit Metal Keypad |
| Main Material: |
SMC(Sheet Molding Compound) |
| Size: |
227*293*135mm |
| Weatherproof Degree: |
IP66, Can up to IP67 |
| Handset Free: |
Support |
| Analogue, VoIP: |
Optional |
| Listening By Loudspeaker: |
70dB in 1m |
Product Description
Explosion proof telephone Exproof telephone KNEX1 Emergency telephone kntech
Product Name: | Kntech Explosion proof Telephone |
Product model: | Kntech KNEX1 |
size: | 227 x 293 x 135mm |
material: | SMC(Sheet Molding Compound) |
Miki Mok - Sales manager
Cell: +86 135 3042 8923
IEXEx telephone Product Application
IEXEx telephone robust Telephone for rough ambient conditions in hazardous areas of zone 2
Application: Indoors and outdoors (IP66)
Ex e ib mb IIC T6 Gb
Ex tb IIIc T80°C Db -25°C ≤Ta≤+60°C
Housing: SMC(Sheet Molding Compound)
Keypad and all metal parts are made by stainless steel
Integrated display
Integrated telephonebook
Handsfree operation
Steel armoured handset cord
The telephone can be operated ar r.H. 95%
Marine phone exproof telephone KNEX1 IEXEx telephone weatherproof telephone
IEXEx telephone SPECIFICATIONS |
Unit dimension | 227 x 293 x 135mm |
Unit Weight | 5.8kg |
LCD Display: | 2 line alphanumerical display ICON or number or letter
Up to 4 level back light selectable |
Keypad | stainless steel flash mount Waterproof IP66. Ice protection
21 keys with number and ACE letter for program |
Handset: | dynamic receiver with inductive coupling for hearing aids
Electret type microphone with noice cancelling
Stainless steel armoured handset hold over 170kg |
Waterproof protection | IP66 |
Impact protection: | IK09 |
Call Flash transfer: | max:120ms | | |
Dialling procedure: | DTMF | | |
External function: | external louder speaker | | |
IEXEx telephone | additional earpiece | | |
IEXEx telephone | headset | | |
IEXEx telephone | ringl sounder | | |
operation temperature: | -25°C to 60°C | | |
Storage temperature: | -30°C to +70°C | | |
Option feature with howler and flashing beacon
Marine phone exproof telephone KNEX1 IEXEx telephone weatherproof telephone
Exproof telephone Alarm sounders & beacon light
Option feature headset socket Headset version headphones compatible for industrial telephones:
Option feature headset socket Headset version headphones compatible for industrial telephones
IEXEx telephone Main Features
Analogue telephone matching with most PABX, PBX and PAX system
Robust SMC 2600 glassfibre reinforced polyester die-cast body, Vandal resistant and tamper-resistant hardware, simple installation.
Busy tone detection for auto release the line if line busy
Dry contact for external control automation
Auto answer
Full Soft lock: only dial out from phone book 50 memory address number
Half soft lock: limit to dial out starting number, e.g. "00852" area code
High temperature approval
Ring sound 95 dB dfd in 1 m and 10 ringing tone melodies selectable
Listening by loudspeaker: 70dB in 1m
Phone book memory: 50 address ( name & number) programmable
Stainless steel keypad for dial and manuel
Magnetic reed hook-switch
Telephone line powered. No external power or battery required
Marine phone exproof telephone KNEX1 IEXEx telephone weatherproof telephone
Certifications
Marine phone exproof telephone KNEX1 IEXEx telephone weatherproof telephone
IECEx certify
Fast and safe delivery
Waterproof rating IP66
Wall mounted type
Handset free
Marine phone exproof telephone KNEX1 IEXEx telephone weatherproof telephone
IEXEx telephone Main Features
Analogue telephone matching with most PABX, PBX and PAX system
Robust SMC 2600 glassfibre reinforced polyester die-cast body, Vandal resistant and tamper-resistant hardware, simple installation.
Busy tone detection for auto release the line if line busy
Dry contact for external control automation
Marine phone exproof telephone KNEX1 IEXEx telephone weatherproof telephone
IEXEx telephone LCD display include
Manu setting
Welcome text programmable e.g: welcome to koontech telephone
Full soft lock or half soft lock
Phone book up to 50 address number selectable
Ring speaker up to 4 level selectable
Hands free talking sound up to 4 level selectable
Handset receiver sound up to 4 level selectable
Up to 9 Ring tone melodies selectable
Back light up to 4 level selectable
The dialing number
Calling time counting
Exproof Alarm sounders & beacon light Model D7
power rating: 15W
sound intensity: ≥120DB
Type of Lamp-house: LED light resource
Protection grade:IP65
guide number: 150 times/min
Product Weight: 2.56KG
Installation way: wall type
voltage rating: AC220V 50HZ
IEXEx telephone Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
IEXEx telephone After-Sales Service
* Guide how to instal the device, guide how to use the device.
* Engineers available to service online .
* Online 7*24 hours service
Miki Mok - Sales manager
Cell: +86 135 3042 8923
IEXEx telephone Production |
Accept | OEM/ODM |
Procedure | Professional assembly line |
| Rigorous testing and international standard certificate |
IEXEx telephone Packaging |
| 227 x 293 x 135mm |
| 5.8kg |
|
Packaging material: pearl cotton, carton
4pcs/carton
CAN according to customer's requirement
|
