Export Power Limit Function, 500 Watt Grid Tie Inverter (SUN-500GTIL-LCD)

Name: Export Power Limit Function, 500 Watt Grid Tie Inverter (SUN-500GTIL-LCD)
Brand: all-electronics-online.com
SKU: 752549555
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 80-97/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUN-500GTIL-LCD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC Input Voltage Range:	10.8-30V or 22-60V
AC Output Voltage:	110VAC or 230VAC
Frequency:	50Hz/60Hz
Power Source:	Solar Power
Phase:	Single
Brand:	Masspower
Application:	All Kinds of Power Consumers

Product Description

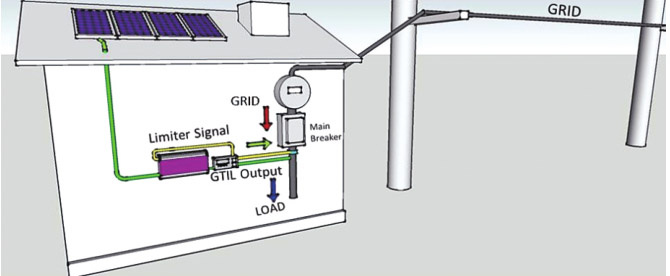

On-Grid System Using Grid Tie Inverter With Limiter (GTIL)

1.The Grid Tie Inverter with Limiter delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid.
2.The heart of the Grid Tie Inverter with Limiter is the Limiter Module (LM). The LM continuously sampled the power needed by the load through the current sensor connected after the Main Circuit Breaker. The LM then will process the signal. It then sends signal to Grid Tie Inverter how much power to deliver to the load in real time.
3.The user, after installing and connecting the GTIL correctly, need not do anything and the unit will do its work automatically.

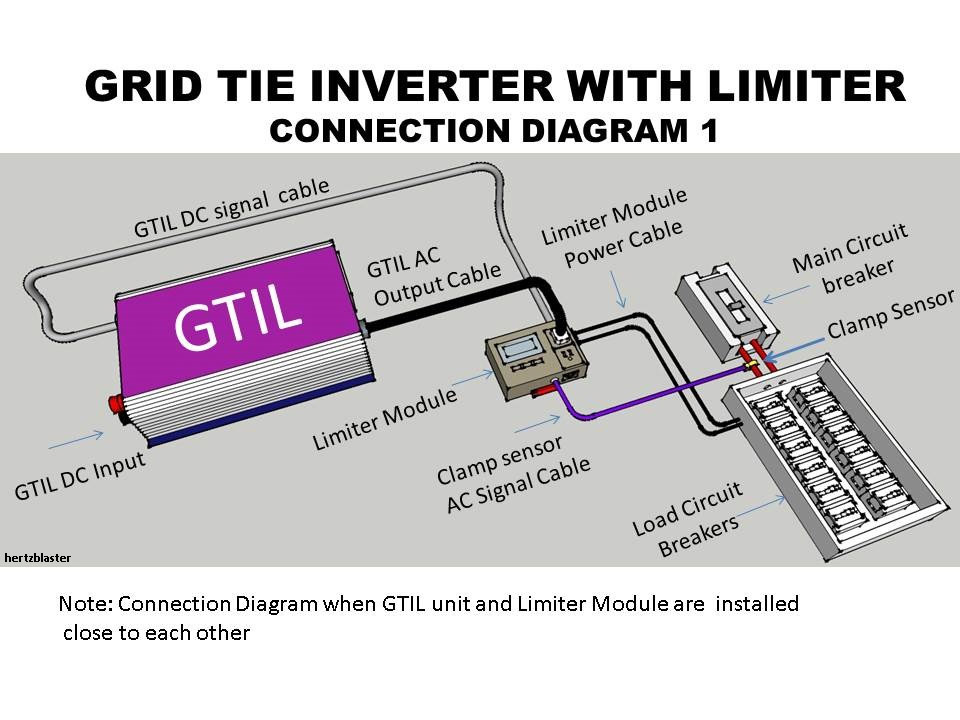

1st generation grid tie inverter with limit function

2nd generation grid tie inverter with limit function(internal limiter)

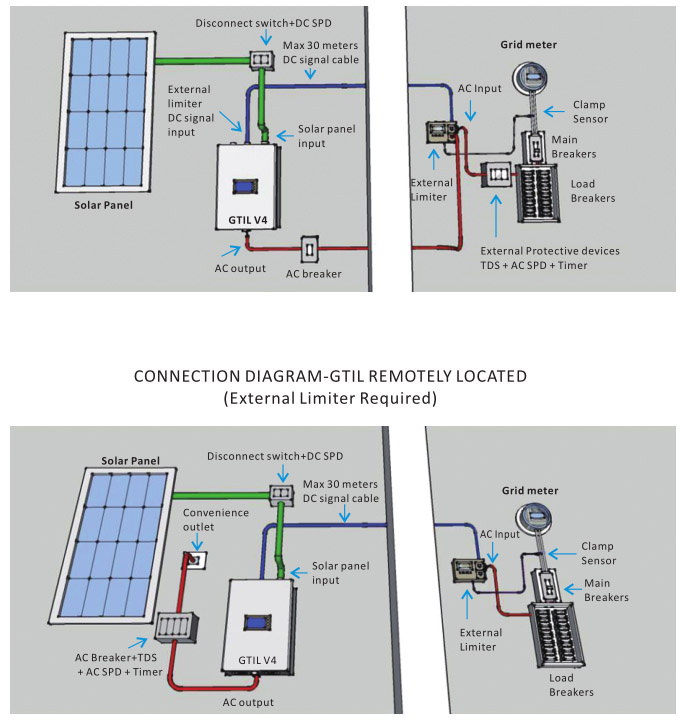

2nd generation grid tie inverter with limit function(external limiter)

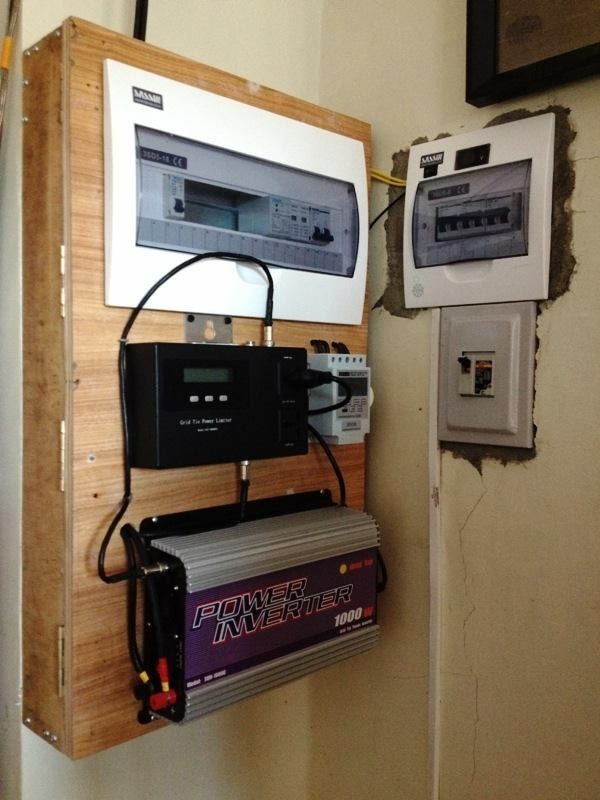

Product image

Available Masspower GTIL Model
500W- Model SUN-500GTIL
600W -Model SUN-600GTIL
1000W -Model SUN-1000GTIL
1500W -Model SUN-1500GTIL
2000W- Model SUN-2000GTIL

Any question, please feel free to contact us
Mr.Blake

Ningbo Deye Inverter Technology Co., Ltd. Which predecessor is Sunshine Technology (China)Co., Ltd. is a professional High-Tech company developing, producing and marketing Solar related products including Grid tie inverter, Off grid inverter, MPPT solar charge controller etc. Our company has got the national software enterprise certification. We own provincial engineering technology center. We have one of the most experienced reserch team who are experienced in development of solar related products. We have a remarkable power of technology, which has reached the national and international level. In recent years, in the field of solar inverter, we invested an huge amount of energy in developing and popularizing, we have established solid symbiosis with a couple of industry-leading enterprises including Texas Instruments, the biggest semiconductor manufacturer in the world. Deye group now own a 120 thousand square meters of development and production base and high presision automatic equipment. With a determined will to be better, a sustained innovation, and the pursuing of outstanding, we sincerely look forward to your partnership to make a better future.
