Extract Analog Temperature Information by Implementing The Ntc Thermistor

Prod Model:	NXRT15XH103FA1B040
Category:	Sensors, Transducers
Family:	Ntc Thermistors
Thermal Time Constant Range (S):	< 5
Operating Temperature Range:	-40 to 125 Degree C
Resistance Range:	@ 25c (Ohm) 6000 to 25000
Sensitivity Index Range (K):	3400 to 3600
Percentage Of Resistance Tolerance Range:	@ 25c (%) < +/-2
Number Of Terminals:	2
Terminal Pitch (mm):	2.5
Product Length (mm):	4(Max)
Installation Type:	Through Hole

Product Description

MANUFACTURER
Murata Manufacturing

PRODUCT CATEGORY
Thermistors

DESCRIPTION
Thermistor NTC 10K Ohm 1% 2-Pin Radial 3434K

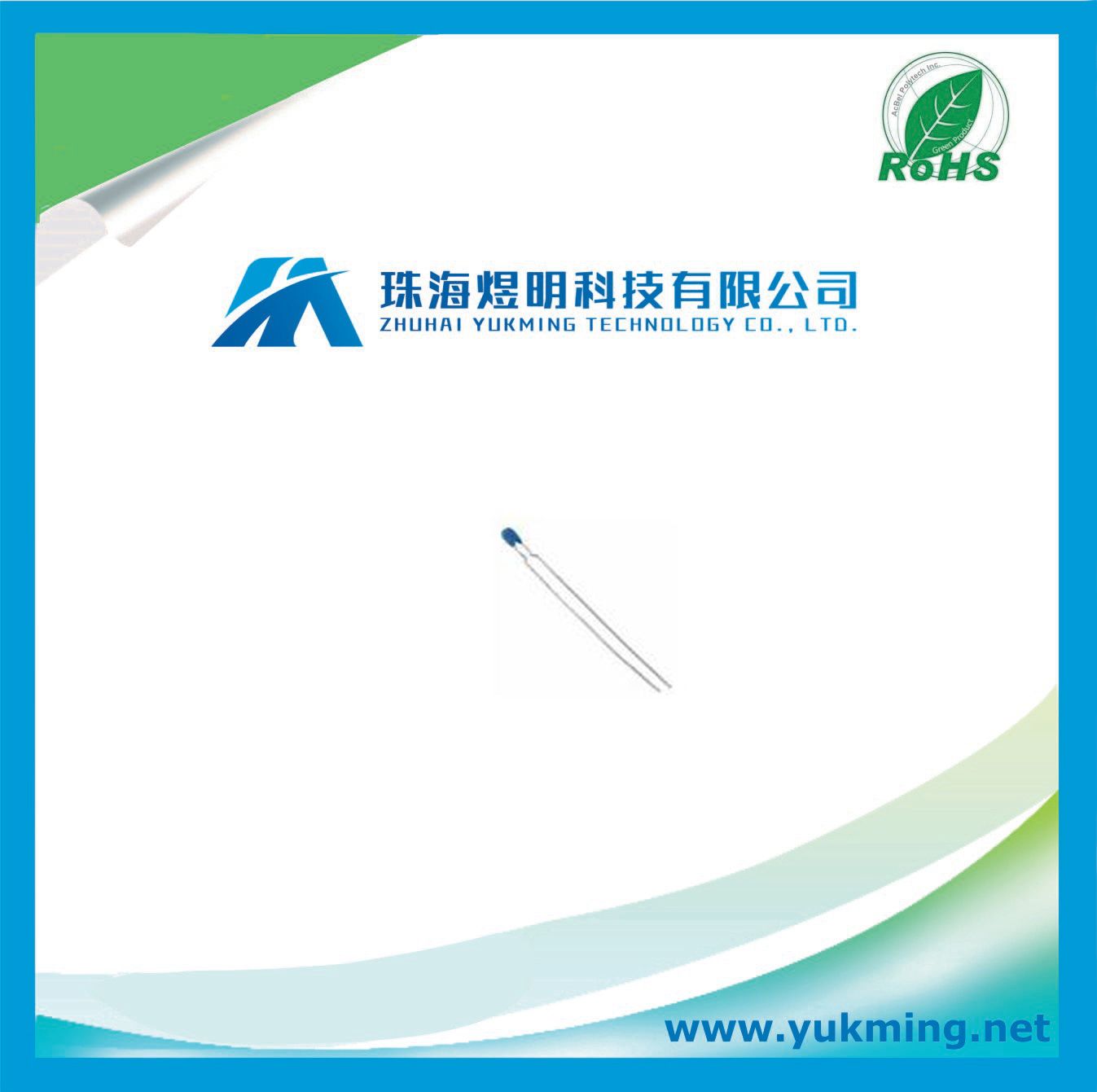

Extract analog temperature information by implementing this NXRT15XH103FA1B040 thermistor developed by Murata. This part has a temperature range of -40 °C to 125 °C. It has 2 terminals. This product is 4(Max) mm long and 2(Max) mm deep.

Specifications
EU RoHS Compliant
Type NTC
Mounting Through Hole
Thermal Time Constant Range (s) < 5
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Resistance Range @ 25C (Ohm) 6000 to 25000
Sensitivity Index Range (K) 3400 to 3600
Percentage of Resistance Tolerance Range @ 25C (%) < ±2
Number of Terminals 2
Terminal Pitch (mm) 2.5
Application Rechargeable Battery|Battery Charging Circuit|Head of Printer|DC Fan Motor
Product Length (mm) 4(Max)
Resistance @ 25C (Ohm) 10000
Product Depth (mm) 2(Max)
Percentage of Resistance Tolerance @ 25C (%) ±1
Thermal Time Constant (s) 4
Sensitivity Index (K) 3434
Supplier Temperature Grade Automotive
Minimum Storage Temperature (°C) -10
Maximum Storage Temperature (°C) 40
Lead Diameter (mm) 0.4
Wire Form Inside Crimp Standoff
Construction Radial
Minimum Temperature Sensing (°C) -40
Maximum Temperature Sensing (°C) 125
Minimum Output Resistance (Ohm) 0.531k
Maximum Output Resistance (Ohm) 195.652k
Linearity No
