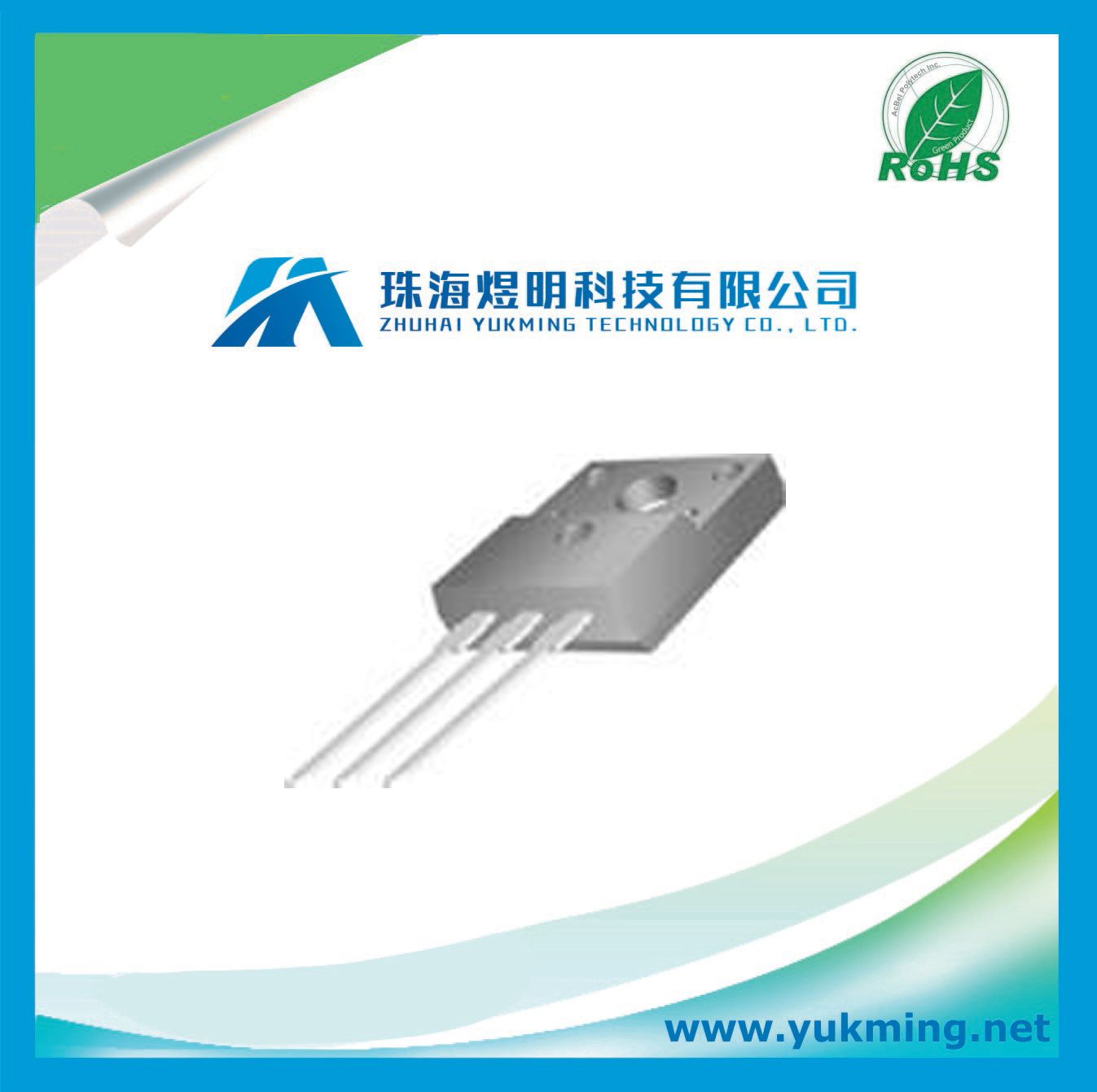

Transistor Electronic Component of 600V N-Channel Mosfet Fqpf5n60c

Name: Transistor Electronic Component of 600V N-Channel Mosfet Fqpf5n60c
Brand: all-electronics-online.com
SKU: 802040085
Availability: InStock
Rating: 4.9 (34 reviews)

Price:	US $ 0.2670/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQPF5N60C
Low Gate Charge:	Typical 15 Nc
Low Crss:	Typical 6.5 PF
Operation Temperature Range:	-55~150
Mounting:	Through Hole
Power Dissipation:	33 W

Product Description

600V N-Channel MOSFET

Description
These N-Channel enhancement mode power field effect
transistors are produced using Fairchild's proprietary,
planar stripe, DMOS technology.
This advanced technology has been especially tailored to
minimize on-state resistance, provide superior switching
performance, and withstand high energy pulse in the
avalanche and commutation mode. These devices are well
suited for high efficiency switched mode power supplies,
active power factor correction, electronic lamp ballasts
based on half bridge topology.

Features
• 4.5A, 600V, RDS(on) = 2.5Ω@VGS = 10 V
• Low gate charge ( typical 15 nC)
• Low Crss ( typical 6.5 pF)
• Fast switching
• 100% avalanche tested
• Improved dv/dt capability
