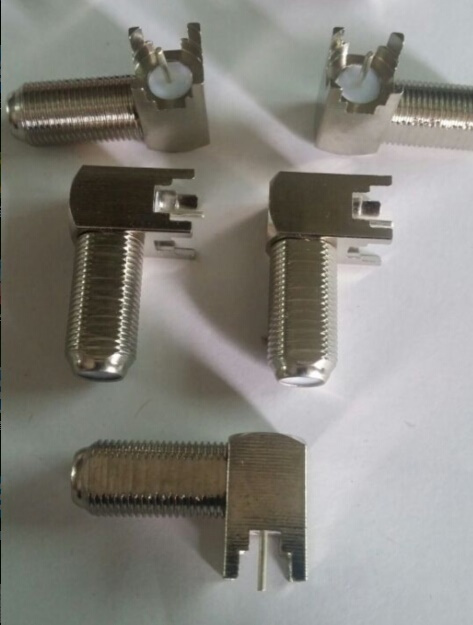

F Female Right Angle PCB Mount Connector F Type Connector

Prod Model:	DT-PMC-90 PCB Mount Connector
Apply For:	PCB
Gender:	Female
Type Name:	F Type Connector
Connector Type:	3/8-32 F Connector
Material:	Zinc Alloy/Copper
Plated:	Nickel/Gold
Impedance:	75
Pin:	Brass, Copper
Durability:	500 Times
Insulators:	ABS/PP/PVC/PTFE
Type:	PCB Coaxial Connector
Coupling Mechanism:	PCB Mount Connector
Shape:	Right Angle
Brand:	Daytai

Product Description

F Female Right Angle PCB Mount Connector F Type Connector
Hot sell F connetors for electronic:
F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications.F type joining devices use for 75 Ω cable assign system,especially CATV,broadcast television network,It can already be used for having impedance to mate the occasion required and can be used in not mating the occasion too.It is joined ,inserts helping jointly that its characteristic is whorl ,the price is suitable.

Major technical characteristics:

Temperature Range		-40 to +60°c
Vibration		100m/s2 (10-500Hz). 10g
Impedance		50Ω,75Ω
Frequency Range		DC to 1GHZ
Working Voltage		170V r.m.s at sea level
Withstanding Voltage		500V r.m.s at sea level
Contact Resistance	Center contact	≤10m Ω
	Outer contact	≤5m Ω
Insertion Loss		≤0.24dB(6GHz)
Insulation resistance		≥1000M Ω
Center Conductor Retention Force		≥0.2N
Voltage Standing Wave Ratio	Straight	≤ 1.20/6GHz
	Right angle	≤ 1.30/6GHz
Durability(mating)		≥ 500cycles

Material and plating:

Body	zinc alloy	Nickel plated
Pin contact	Annealed copper, Brass with gold, nickel, zinc, silver plated	Gold plated
Socket contact	Beryllium or tin bronze	Nickel plated
Resilient Contact	Beryllium-copper	Nickel plated
Insulator	PTFE, PE, Teflon, POM, PP
Crimp Ferrule	zinc alloy	Nickel or gold plated
O-ring Sealing	6146 silicon rubber

F Connector Application:

Antennas	Broadcast	Radios
Electronic test equipment	Serial digital and analog interface	terminals
airport	bank buildings	highways
prison	electricity	Telecommunications
railway stations	schools	factories
Non-professional radio antenna connections

We manufacture the following products:
1) RF coaxial connectors and adapters up to 50GHz
2) Flexible, semi-flexible and semi-rigid Cable Assemblies up to 40GHz, we test each cable assembly for your order with the test report.
3) RF Impedance converter 75 ohm to 120 ohm, such as BNC and 1.6/5.6 (L9) type.
Our Quality:Quality is the life of DOSIN We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Warranty:We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Payment:We accept payment via TT (Bank transfer), Western Union, Palpal.
We accept bank transfer for large orders. For small order, you'd better pay via Western union or Palpal.
Shipping:We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS.
Do you have any question? Contact me now! We look forward to cooperating with you!


If you can not find the exact products you want in this page, please send enquiry to us, you will get an immediate reply within 1 hour at our working time, thanks for your visiting!~

We are glad to make samples according to your drawings or specifications.
FAQ:
Q:What' your MOQ?
A:500 pieces
Q:What's you pay ment?
A:Usually we accept T/T,also can accept Paypal and Western Union.
Q:What's your delivery?
A:----Via Express: Generally 3-7 working days.
   ----Via Air Mail: Generally 1-3 working days.
Q:What about your warranty?
A:1.We can provide1 year warranty.
2.With CE,ROSH,FCC certificate to ensure the quality.
3.All productshave been checked and packaged in good condition by QC before dispatch.
