Jiangsu Telaisi Electronical Equipment Co., Ltd. >> F Male Plug to SMA Female Jack RF Adapter

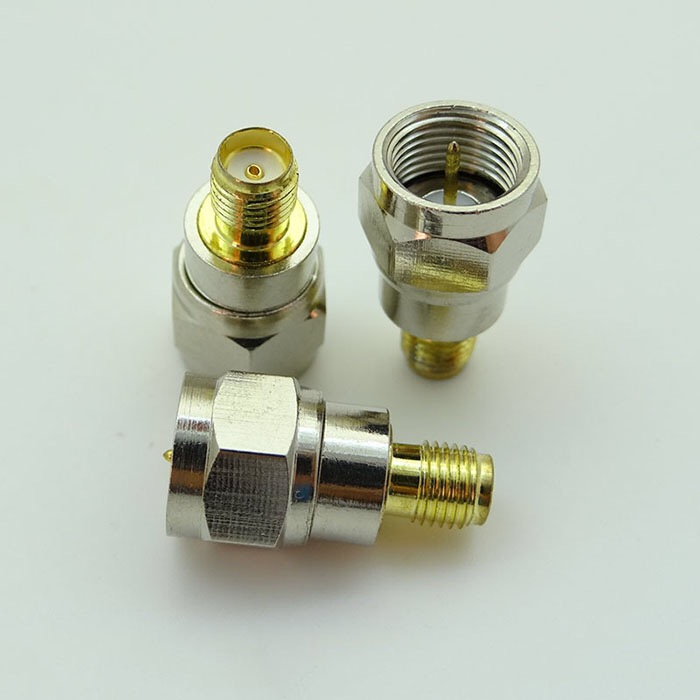

F Male Plug to SMA Female Jack RF Adapter

F Male Plug to SMA Female Jack RF Adapter
Price: US $ 0.01-1/Piece
Min Order: 5000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Description

Packaging & Delivery
Packaging Details
1 piece in one plastic bag 2 100 pieces in one paper carton 3 Clear Plastic Bag/ Standard Export Carton 4 According to customers requirement
Delivery Time
5-7 days



Product Description



Temperature Range

-55~+155°C (PE Cable -40~+85°C)

Impedance

50Ω

Vibration

98m/S2 (10~2000Hz), 10g

Frequency Range

DC-12.4GHz(semi-rigid cable DC-18 GHz)

Insertion Loss

≤ 0.15dB/6GHz

Withstanding Voltage

1000V r.m.s   at sea level

Working Voltage

335Vr.m.s   at sea level

Insulation Resistance

≥ 5000 MΩ

Durability

≥ 500(cycles)

Contact resistance:

CenterContact   ≤ 3mΩ

Outer Contact   ≤ 2.5mΩ

Voltage Standing Wave Ratio:

Straight

flex cable          ≤ 1.10+0.02f

Semi-rigid cable   ≤ 1.07+0.018f

Right angle

flex cable         ≤ 1.20+0.03f

Semi-rigid cable   ≤ 1.17+0.02f



 TYPE:     F male to SMA female adapter





Jiangsu Telaisi Electronical Equipment Co., Ltd was founded in 1995 and located in Jiangsu Province. Our factory is a professional manufacturer of R&D, producing RF connectors and cable assemblies, processing various components.

The factory independently developed products commonly used specifications of SMA\SMB\SMC\BNC\L9\MCX\MMCX\TNC\FME\RCA connectors, RG59\RG6\RG11 series connector heads and all kinds of waterproof connector. The factory has a professional R&D team, combined with years of R&D experience, can address the specific customer needs and can provide customers with professional technical support.

Our factory is not only committed to continue to build and improve the product platform but also to establish Quality Management System and Environmental Management System at the same time, and provide solid backing for the factory's sustainable and stable development. The factory passed ISO9001 quality management system certification and ISO10041 environment system certification in 2008. Our products obtained from Taiwan\Japan\Vietnam\Thailand\Europe&America and the domestic customer's recognition and praise.

Since the plant, we have taken the market as the core, taken the product as the guideline, taken technology as the foundation, taken the quality as the lifeblood. For the domestic and foreign markets, we implement brand strategy and take brand development.

Our factory has a broad market prospects. Products are widely used in CATV communication digital network\aerospace industry\satellite transmission\photoelectric transmission and other types of industrial, civil and military fields.

We sincerely welcome domestic and foreign customers to come to discuss cooperation and common development.
