Jiangsu Telaisi Electronical Equipment Co., Ltd. >> Waterproof SMA Plug to N Plug Adaptor Thread N RF Application

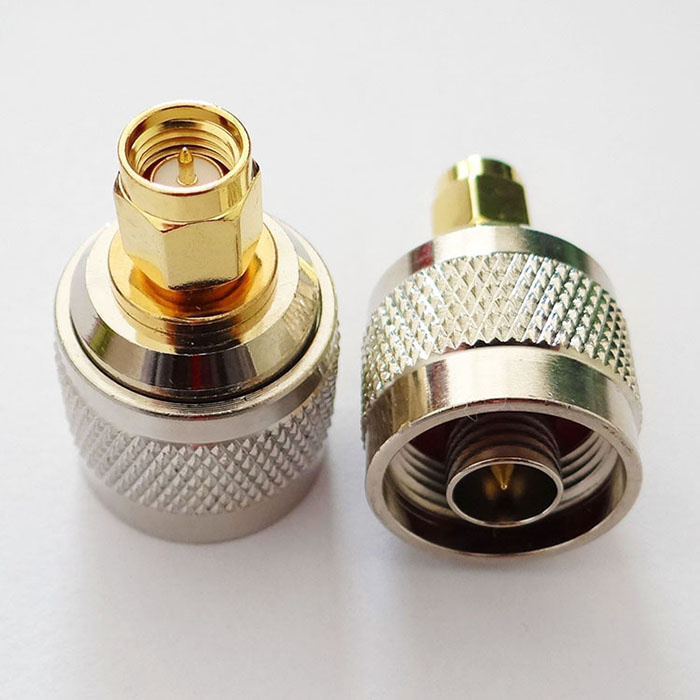

Waterproof SMA Plug to N Plug Adaptor Thread N RF Application

Waterproof SMA Plug to N Plug Adaptor Thread N RF Application
Price: US $ 0.01-1/Piece
Min Order: 5000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: N-SMA

Product Description




Packaging & Delivery
Packaging Details
1 piece in one plastic bag
2 100 pieces in one paper carton
3 Clear Plastic Bag/ Standard Export Carton
4 According to customers requirement
Delivery Time
3-7days

Product Description



We are manufactory,Can be customized by customer..





Temperature Range

-55~+155°C (PE Cable -40~+85°C)

Impedance

50Ω

Vibration

100m/S2 (10~500Hz)

Frequency Range

DC-7.5GHz

Insertion Loss

≤ 0.15dB/6GHz

Withstanding Voltage

4000V r.m.s at sea level

Working Voltage

2700Vr.m.s at sea level

Average power

3Kw max

Insulation Resistance

≥ 10000 MΩ

Center conductor retention force

≥ 6N

Durability

≥ 500(cycles)

Contact resistance:

CenterContact ≤ 0.4mΩ

Outer Contact ≤ 1.5mΩ

Voltage Standing Wave Ratio:

Straight

≤ 1.20/6GHz

Right angle

≤ 1.35/6GHz


Microstrip female n







Jiangsu Telaisi Electronical Equipment Co., Ltd was founded in 1995 and located in Jiangsu Province. Our factory is a professional manufacturer of R&D, producing RF connectors and cable assemblies, processing various components.

The factory independently developed products commonly used specifications of SMA\SMB\SMC\BNC\L9\MCX\MMCX\TNC\FME\RCA connectors, RG59\RG6\RG11 series connector heads and all kinds of waterproof connector. The factory has a professional R&D team, combined with years of R&D experience, can address the specific customer needs and can provide customers with professional technical support.

Our factory is not only committed to continue to build and improve the product platform but also to establish Quality Management System and Environmental Management System at the same time, and provide solid backing for the factory's sustainable and stable development. The factory passed ISO9001 quality management system certification and ISO10041 environment system certification in 2008. Our products obtained from Taiwan\Japan\Vietnam\Thailand\Europe&America and the domestic customer's recognition and praise.

Since the plant, we have taken the market as the core, taken the product as the guideline, taken technology as the foundation, taken the quality as the lifeblood. For the domestic and foreign markets, we implement brand strategy and take brand development.

Our factory has a broad market prospects. Products are widely used in CATV communication digital network\aerospace industry\satellite transmission\photoelectric transmission and other types of industrial, civil and military fields.

We sincerely welcome domestic and foreign customers to come to discuss cooperation and common development.
