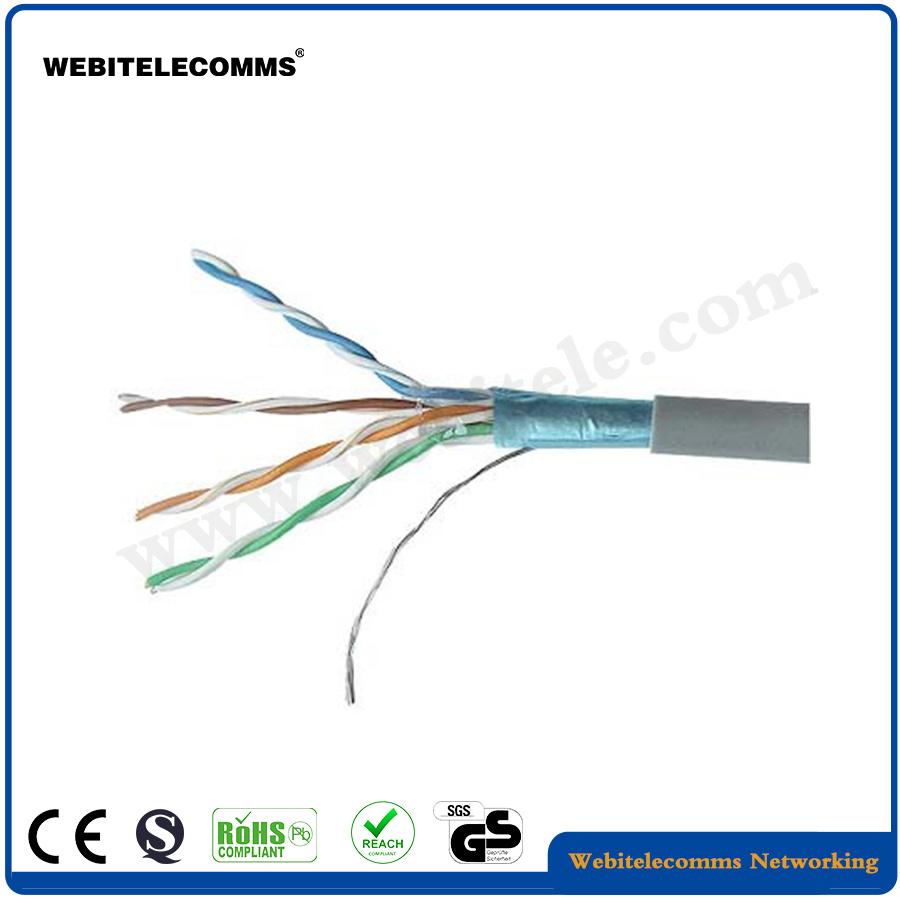

F/UTP Shielded Cat 5e Twisted Pair Installation Cable /LAN Cable / Network Cable

Name: F/UTP Shielded Cat 5e Twisted Pair Installation Cable /LAN Cable / Network Cable
Brand: all-electronics-online.com
SKU: 692827272
Availability: InStock
Rating: 4.7 (36 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WB-LC-32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	Solid Bare Copper
AWG:	24
Insulation:	HDPE
Packing Way:	Easy Pull Box, Wooden Drum
Application:	LAN Cable
Conductor Material:	Copper
Certification:	VDE
Cover Material:	Cmx/Cm/Cmr/LSZH/LDPE
Type:	Cat5e
Model:	Cat5e F/UTP Data Cable
Brand:	Webit or OEM

Product Description

Feature:

Application structured cabling for computer networks such as Ethernet over twisted pair.
CAT5e cable will support Ethernet,and Gigabit Ethernet. It can completely backwards compatible .
Product testing is using MEA network analyzer that imported from Germany.

Model	cat5e cable
Conductor Size	24AWG
Conductor Size	421/0.51mm (0.50mm, 0.48mm, 0.45mm, 0.4mm, 0.38mm)
Conductor Material	BC/CCU/CCA/OFC/CCS
Nuber Of Conductor	2P, 4P
Shiled	UTP/FTP/STP/SFTP /SSTP
Flammability Grade:	CMX,CM,MP,CMG,MPG,CMR,MPR
Indoor / Outdoor	Single jacket / Double jacket
Insulation Material	PE , HDPE
Insulation Thickness	0.55mm
Number of pairs: 4 pairs	Pair1: Orange/White Orange Pair2: Blue/ White Blue Pair3: Green/ White Green Pair4: Brown/White Brown
Jacket Material	PVC, ROHS PVC, LSZH PVC
Jacket Thickness	0.92-0.95mm
DC Resistance(Max.)	9.5Ω/100m
DC Resistance Imbalance	2.50%
Working Capacitance(Max.)	5.4nF/100m
Insulation Resistance	10000MΩ.km
Transmission Velocity	65%
Operating Temperation	-20 °C - +75 °C
PVC Jacket Color	As client's request.
Print Words On Cable	CAT5E 4P 24AWG VERIFIED TO EIA/TIA 568B.ISO/IEC 11801 EN501 or clients' request.


Certifications

==Our Services==
Sample Service: We will collect some sample fees, will refund after you place order.

Package design support: We have brand team for your customized design.

==Company Information==
WEBITELECOMMS was established in 2003 and was awarded the rights of import and export in 2010.

Products range: 19''network cabinet,network rack,server cabinet,server rack,patch panel,PDU,network

cable,fiber cable,outdoor cabinet,battery cabinet,IPAD charging cabinet

Audit Report: CE,ROHS,ISO.

Showroom: About 100 square meters showroom.

WEBITELECOMMS, believe that our professional team and service will help you stay step ahead in the market.

==FAQ==

1)    What is your Payment term?
---TT, LC, Western Union could be accepted.

2)    What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.

3)    What is the Loading Port?
--- Ningbo,Shanghai.

4)    What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item
in the price list.

5)    What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market,international safety standard certificate also could be provided.

WebiTelecomms, An energetic and dynamic company which specializes in INTEGRATED CABLING service, built in 2003. For these years, WebiTelecomms present her trustworthy and comprehensive products around the world.

Whether you are a small and medium enterprise or a large corporate customer, we understand that you require a high level of support at both pre-sales and post-sales side. At Webitelecomms, Everything will be shared to you.

Qualified design is given by engineers team with the latest feature.

Considerate quotation to be offered by sales team in-time as per your indeed need.

80, 000 sqm workshop field stands and looks for large challanges.

Trained labors and managements will be basic support.

So, WHAT YOU CAN GET from our team?

Creative and thoughtful idea

Honest and Responsible service

Flexible and technical response.

The point is: Trusted and affordable products

We never stop asking ourselves how we can make the customer experience better, and every day, we find an answer.

Choosing our services will not be the last good decision you make!
