| Prod Model: |
F24+ |
| Brand Name: |
Nante |
| Export Area: |
Whole World |
| Place Of Origin: |
Zhejiang,China |
| Means Of Transport: |
Ocean |
| Speed: |
Single/Double Speed |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
Product Description
Making your own remote control
ONE for ALL Great flexibility for expanding & upgrading your system with hardware / software.
i.e.: Plug in auxiliary relay module to expand the number of relay contacts.
One single transmitter fits all models - making maintenance service easier than ever and reducing spare parts spending.
Patented Receiver Housing
Extraordinary design with all components/ parts/ cables fixing on the upper part of receiver instead of lower casing.
When it comes to service, simply remote the upper casing instead of the entire receiver. This makes maintenance easier and safer specially on the crane with very limited space. Self - tapping screws provided to fix the receiver on the control box easily and efficiently.
Receiver Multifunctional LED Indicator
The large size LED indicator provides crucial messages to guide the ground operator such as: receiver power status, crane operation, malfunction etc.

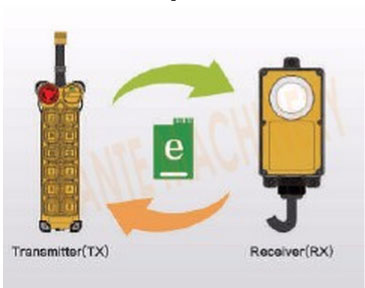

e - Card( Plug and Play)
e - Card works similar to SIM in the mobile phone.
All system data are carried on a small e - Card for easy transfer to a spare system when needed.
e - Card is interchangeable between transmitter & receiver. It allows spare transmitter or receiver to resume to work without any downtime.

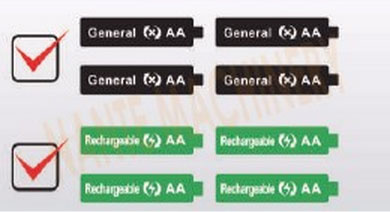

Budget & Environmentally Friendly
Transmitter with extremely low battery power consumption.
Using 4 AA size batteries. (Carbon Zinc, Alkaline, Ni - Cd are all accepted)
With adjustable operating range, it saves and extends battery life.

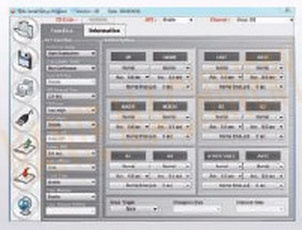

Powerful Customized Software
A free software derived from millions of worldwide user's experiences.
Total solution for industrial remote controllers( Available for most of applications).
Capable of reprogramming numbers of parameters, such as operational function, emission power, and receiver off time, etc.

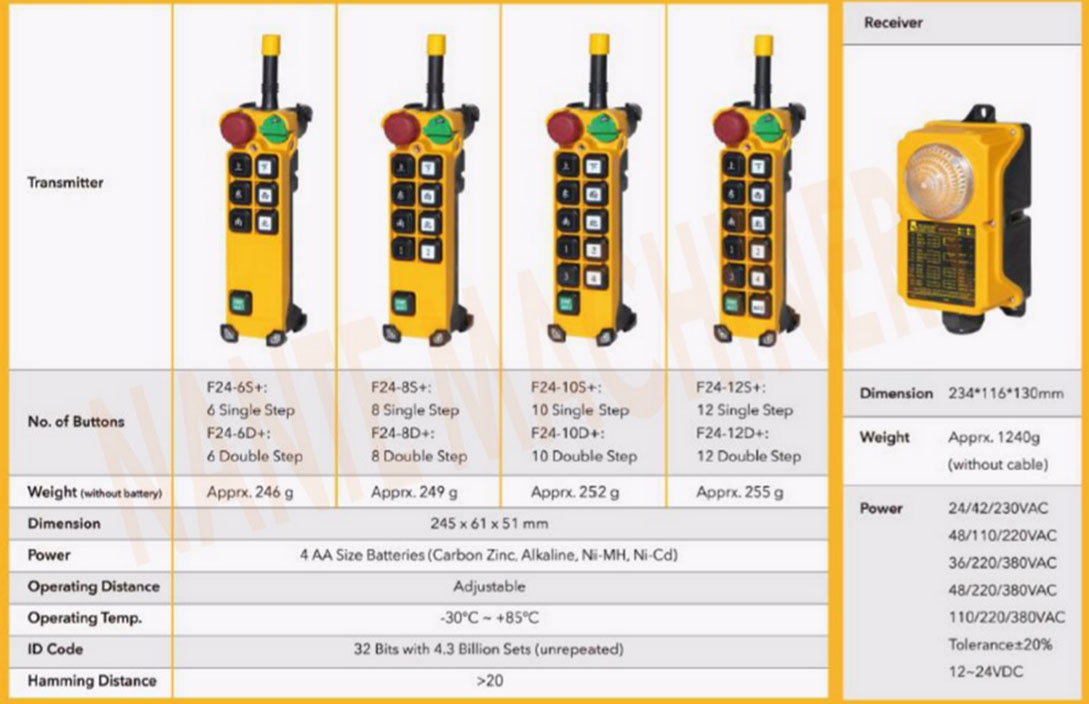

General Specification
Nante Machinery is a subsidiary company of Zhejiang Zhongjian Road & Bridge Machinery Co, . Ltd. Zhongjian was founded in 1994. After nearly two decades' sound and rapid development, we have grown into one of China's leading heavy machinery cranes and crane components manufacturers. We covers an area of more than 100, 000 square meters, and above 500 experienced employees, among which, a rough 10% are engineers. Our production lines are all equipped with world-leading brand tools and devices. In recent years, our annual revenue has steadily exceeded 20 million USD, in which a 20% contribution is from foreign trading. We have established long term business relationship with lots of clients from USA, Singapore, Indonesia, Kenya, India, Cambodia, South Africa, Albania, Chile etc.
As a mature crane components manufacture, we not only produce normal crane components, but also deliver an end-to-end solution to crane projects.
We have more than 100models of products
1. From wheel, whell sets to wheel block and end carriage
Open geared type to Hollow shaft model
110mm wheel to 700mm diameter
2. From Lowhead room electirc hoist to chain hoist
3. From Enclosed conductor rail to unipole insulated conductor
HFP56, HFP52(AKAPP model), HFP95(max. 10poles), NSP(max. 1250ampers)
4. From C track festoon system to beam trolley, wire rope trolley to angle steel trolley
5. From Crane cabin to electric panel
6. From industrial remote control to pendant control
7. From limited switch to overload device
As a mature heavy machinery manufacturer, we not only produce individual industrial equipments, but also deliver an end-to-end solution to cover the entire project lifecycle including machinery design, manufacturing, installation and on-going maintenance. We have more than 50 models of products, which can be divided into five major categories as following:
1. Series of construction cranes
Bridge launching crane, form traveller, bridge deck launching gantry, tower crane etc.
2. Series of workshop, shipyard, and port cranes
Overhead crane, gantry crane, jib crane and portal crane etc.
3. Various parts of cranes
Electric hoist, winch, motors, rails, bus bars etc.
4. Structural steel projects
Contractor of industrial steel structures such as new-built workshops, towers, chutes, etc
5. Steel Bailey bridges
Two standard models called Compact 100 and 200 in International market
Quality concept lies deeply in our blood. We are awarded Class-A license of specialized equipment manufacturing and repairing officially by China's State Administration of Quality Supervision, Inspection and Quarantine. All of our deliverables have been certified against ISO9001-2008 quality management system.
Fact is always more persuading than paper works. The quality of our products and services has been testified by their successful implementations in a number of key national construction projects, to name some of them: Hangzhou bay Bridge, Jiubao Bridge, Shanghai-hangzhou high-speed railway, Shenzhen-Guangzhou highway, etc.
We pursue the value of innovation, quality, efficiency and excellence in our company's long term development strategy. We target to become one of China's top manufacturer and solution provider in the heavy machinery industry and a competitive player in the overseas market.
