Factory Competitive Price 24 Core Optical Fiber Cable in Gyxtc8s

Prod Model:	GYTC8S fiber optic cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Style:	Aerial
Messenger Material:	Steel Wires
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE / Lszh
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Central Stranding Member:	Steel Wire or FRP
Color Of Fiber /Loose Tube:	Blue,Orange,Green,Brown,Grey,White,Red,Black,Yello
Application:	Glass Fiber
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable
Sheath Material:	HDPE,MDPE,LSZH

Product Description

Specifications


   · OEM 6 Core Optical Fiber Cable
   · Cutomer LOGO
   · Factory price
   · 2-5 days delivery time
   · 25 years quality guaranteed


Technical data:
Fiber core	Stranded Wire	Cable   diameter (mm)	Messenger cable Diameter (mm)	Cable Height (mm)	Cable weight (kg/kg)	Min. bend radius		Max.   Running tension (N)	Safe running tension (N)	Min. Breaking tension (N)	Max. crush loading (N/100mm)
						Static	Dynamic				Short term	Long term
2-30	1× 7-4.2	9.8	6.4	18.8	210	10times cable diameter	20times cable diameter	7000	3500	15550	2000	1000
32-36		10.3		19.3	230
38-60		10.7		19.7	230
62-72		11.3		20.3	255
74-96		12.9		21.9	290

Why Choose Us:
1.Introduction of foreign advanced production equipment and technology, have 12 years production  experience, 80% employees have more than 10 years experience, excellent enterprise culture and manag  ement team.
2.FAST SHIPPING from factory
3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according to ur requirement and description;
6.With more than 12 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprise.

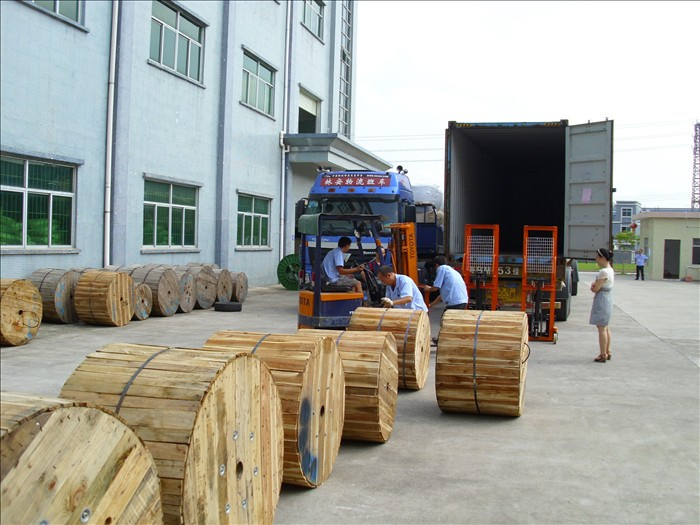

Packaging Detail: GYTC8S 6 Core Optical Fiber Cable package are with export wooden drum. Outdoor 6 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM. Outdoor cable's delivery length according to 6 Core Optical Fiber Cable cores. Also accept custom cable drum from customers. welcome to contact us!
