| Prod Model: |
GYTY53 Multi Mode Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
GYTY53 Multi Mode Fiber Optic Cable |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jelly |
| Color Of Loose Tube: |
Blue,Orange,Green, Brown, Grey, White, Red etc |
| Central Strength Member: |
Steel Wire or FRP |
| Single Armour Material: |
Corrugated Steel Tape Under PE Sheath |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Direct-Burial, Duct |
| Application: |
Multi Mode Fiber Optic Cable |
| Type: |
Multi-mode Fiber |
| Certification: |
Reach,Tlc,etc |
| Connection Structure: |
Multi Mode Fiber Optic Cable |
| Allowed Lateral Pressure: |
Short Term 3000n; Long Term 1000n |
| Allowed Tensile Strength: |
Short Term 3000n; Long Term 1000n |
| Core: |
2-288 Core |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / Lszh PE |
Product Description

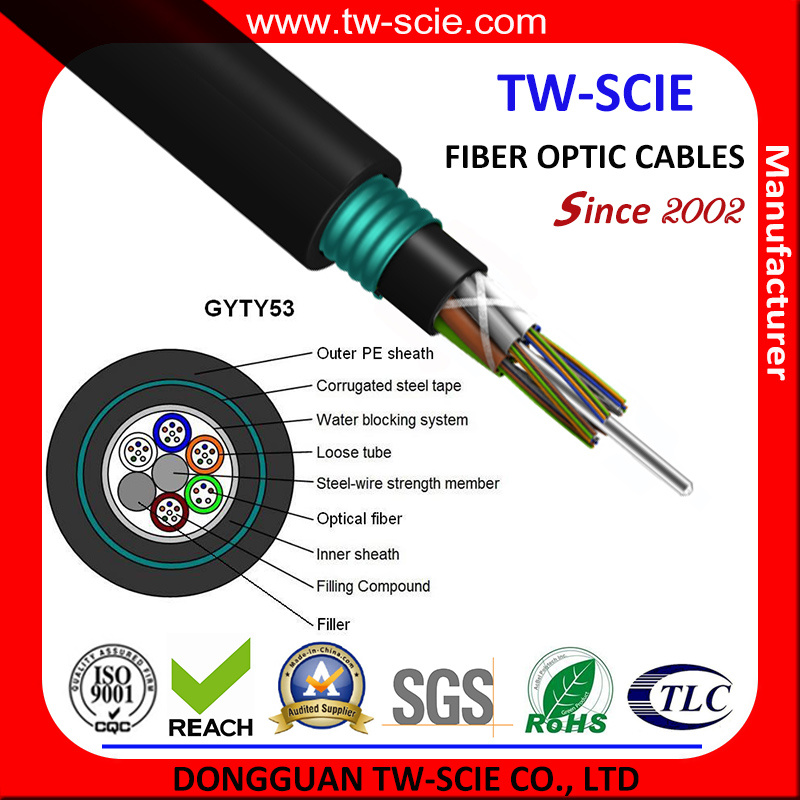

GYTY53 Factory Competitive Price Multi Mode Fiber Optic Cable Details:
Multi Mode Fiber Optic Cable Product Description
This GYTY53 Multi Mode Fiber Optic Cable are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. Multi Mode Fiber Optic Cables are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Multi Mode Fiber Optic Cable Features & Application:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible bending radius
Long haul / backbone application
Multi Mode Fiber Optic Cable Optical Fiber Technical data:
Technical data: |
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-24 | 12.6 | 185 | 12.5 times O.D. | 25 times O.D. | 3000 | 1000 | 3000 | 1000 |
| 26-36 | 12.9 | 195 |
| 38-60 | 13.4 | 200 |
| 62-72 | 13.9 | 230 |
| 74-96 | 15.5 | 275 |
| 98-120 | 17 | 320 |
| 122-144 | 18.4 | 365 |
| 146-216 | 18.9 | 385 |
| 218-240 | 22.1 | 495 |
| 242-288 | 24.3 | 580 |
GYTY53 Multi Mode Fiber Optic Cable Packaging Detail:
GYTY53 2-288 Core Optical Fiber Cable package are wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Contact with me for this GYTY53 Factory Competitive Price Multi Mode Fiber Optic Cable.
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
