Factory Competitive Prices 48 Core -Dielectric Fiber Optical Cable GYFTY

Prod Model:	GYFTY fiber optic cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Fiber Optic Cable / Fiber Cable / Optic Cable / Op
Fiber Cores:	36cores
Fiber Type:	Yofc Corning
Installation:	Outdoor Use
Application:	Fiber Optic Cable
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable
Sheath Material:	LSZH,HDPE,MDPE

Product Description

Factory Competitive Prices 48 Core -Dielectric Fiber Optical Cable GYFTY

Product Description

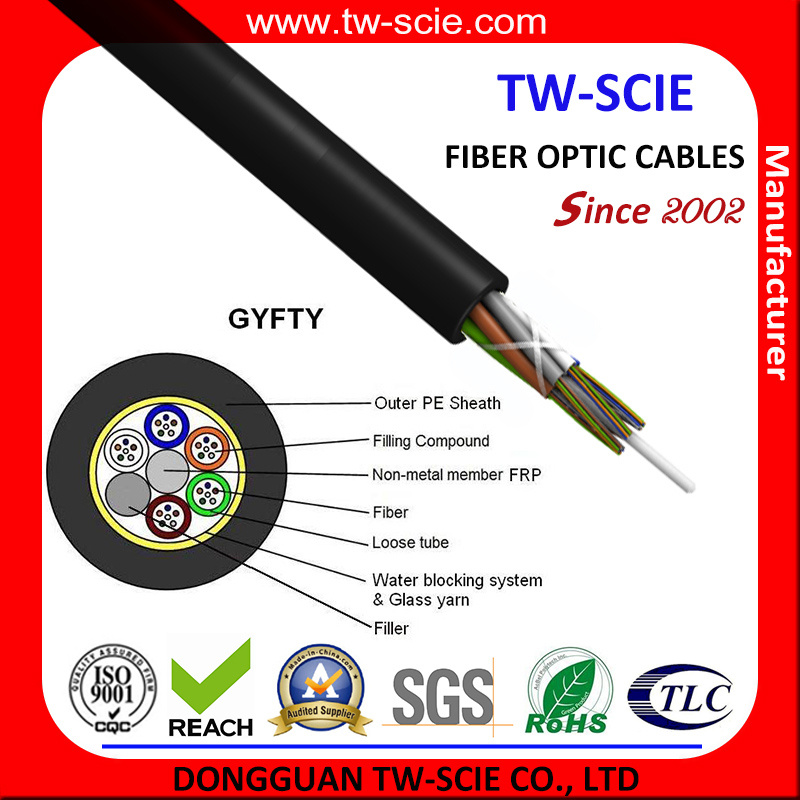

GYFTY Loose Tube Non-metallic Strength Member Non-armored Fiber Optic Cable

The fibers, 250um, are positioned in a loose tube made of a high modulus plastics. The tubes are filled with a water-resistant filling compound . A fiber Reinforced Plastics (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. Then the cable core is covered with a thin Polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water blocking material is applied around the cable core to prevent it from water ingress all the same. After a corrgated steel tape armor is applied, the cable is completed with a PE outer sheath.

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexbility
5. The following measures are taken to ensure the cable waterlight:
a. Single Fiber Reinforced Plastics as the central strength member
b. Loose tube filling cmpound
c.100% cable core filling
d. PSP enhancing moisture-proof
e. Water-blocking material

Standards: Comply with Standard YD/T 901-2009 as well as IEC 60794-1.

Application: Duct/Aerial/ Direct buried


			µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
	@1300nm		≤1.0	≤1.0
	@1310nm	≤0.36
	@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
	@1300nm		≥1200	≥600
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)		≤1260

Package

Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX
