Factory Direct Price Fzk 011 Mechanical Control Temperature Heating Thermostat

Name: Factory Direct Price Fzk 011 Mechanical Control Temperature Heating Thermostat
Brand: all-electronics-online.com
SKU: 794227045
Availability: InStock
Rating: 4.8 (122 reviews)

Price:	US $ 2-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FZK 011
Switch Temperature Difference:	4k(±1.5k Tolerance)
Permissible Air Velocity:	Thermostatic Bimetal
Contact Type:	Snap-Action Contact
Contact Resistance:	<10mΩ
Service Life:	>100,000 Cycles
EMC:	Acc.to En 55014-1-2,En 61000-3-2,En 61000-3-3
Mounting:	Clip for 35mm DIN Rail, En60715 or for Exit Filter
Casing:	Plastic According to UL94 V-0, Light Grey
Weight:	Approx.0.10kg
Fitting Position:	Variable

Product Description

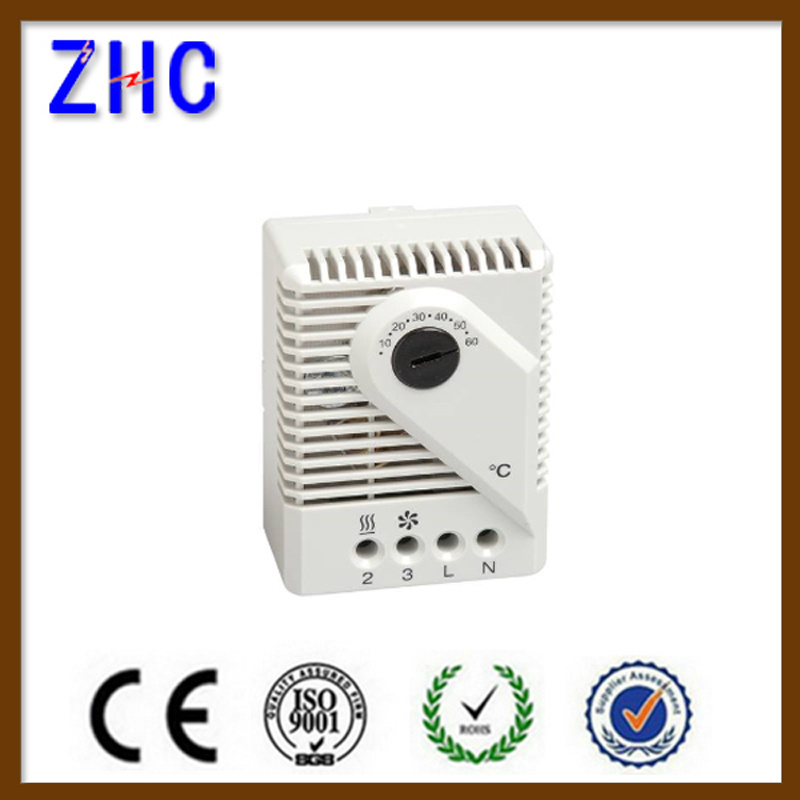

factory direct price Mechanical control temperature heating Thermostat FZK 011

Usage of product

The mechanical thermostat is used for controlling heating and cooling equipment,filter fans or signal devices. The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact.

Product advantage

1. Adjustable temperature
2. High switching capacity
3. Small hysteresis
4. Terminals easily accessible
5. Clip fixing
Technical Data

Switch temperature difference	4K(±1.5K tolerance)
Permissible air velocity	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	<10mΩ
Service life	>100,000 cycles
Max. Switching capacity	250VAC,10(4)A 120VAC,10(4)A DC 30W
Max. Switching capacity,NC	250VAC,5(2)A 120VAC,5(2)A DC 30W
EMC	acc.to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3
Connection	4-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² trande wire(with wire end ferrule)1.5mm²
Mounting	Clip for 35mm DIN rail, EN60715 or for exit filter EF 118 series
Casing	Plastic according to UL94 V-0, light grey
Dimensions	675038mm
Weight	approx.0.10kg
Fitting position	Variable
Operating/Storage temperature	-20 to +80 °C (-4 to +176°F)/-45 to 80°C(-49 to +176°F)
Protection type	IP20

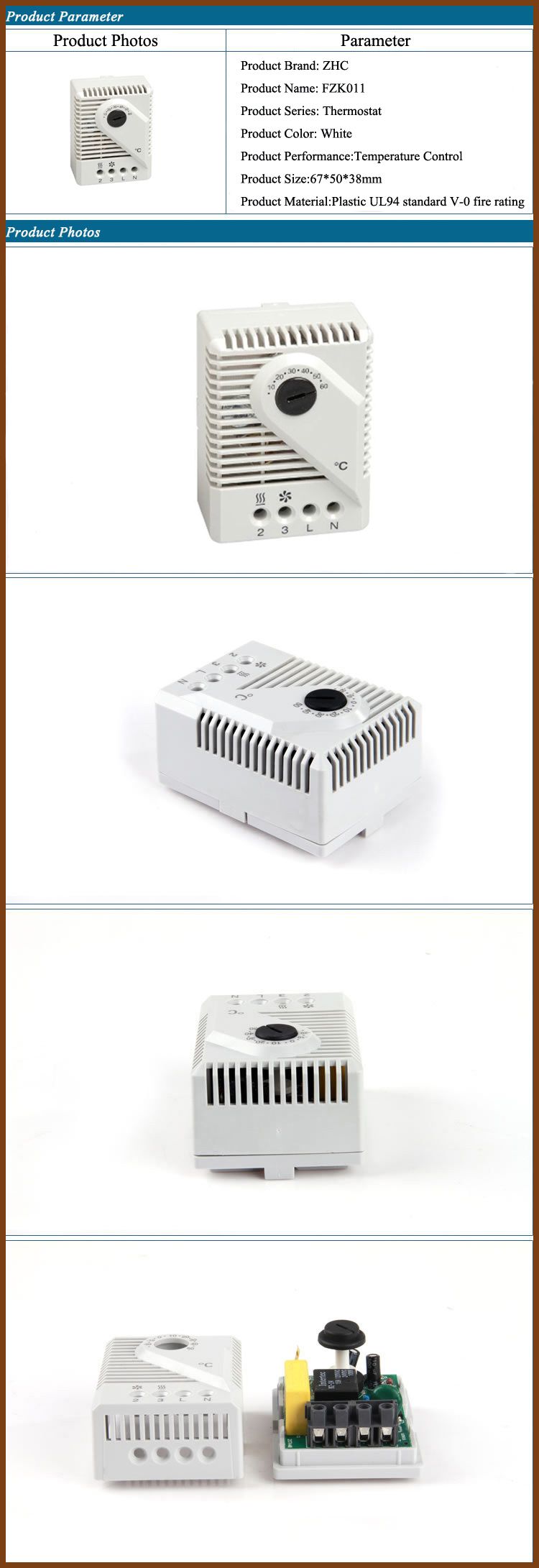

Product show

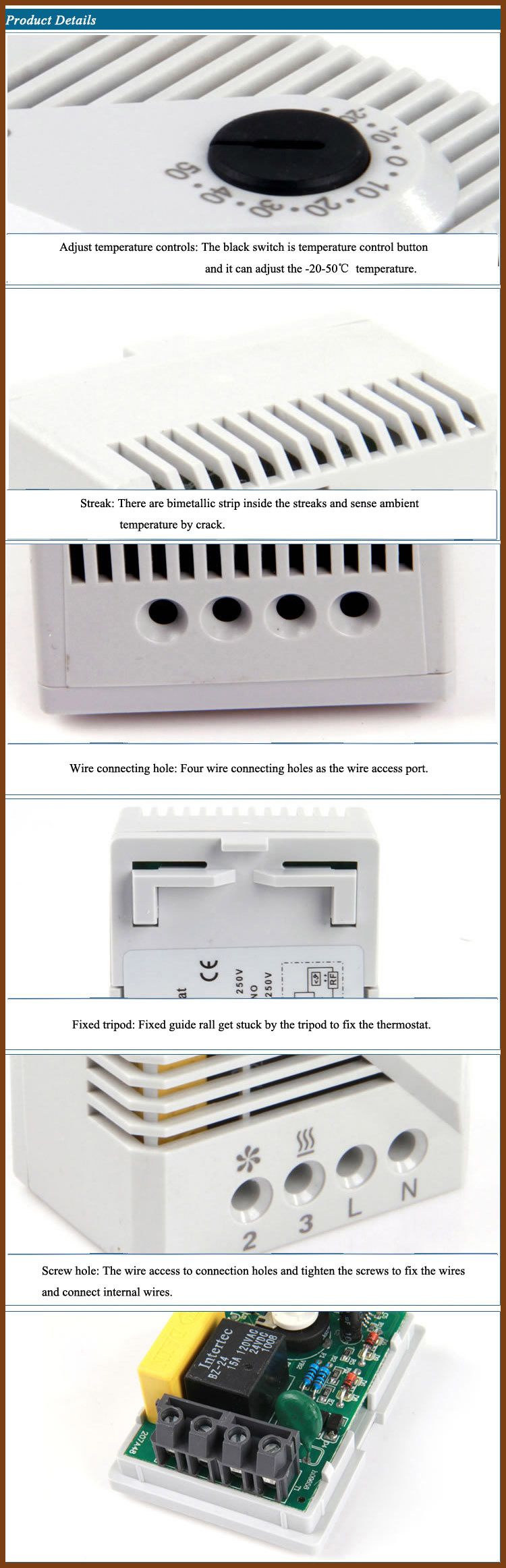

Product details
