Product Description

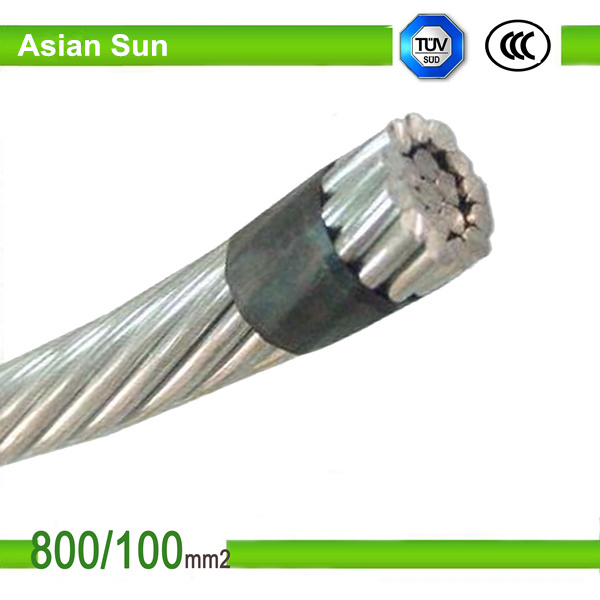

Factory Direct Sale High Quality ACSR Strand Power Cable
ACSR Conductor DESCRIPTION
Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Steel core wire is available in Class A , B or Class C galvanization for corrosion protection. Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.
The proportion of steel and aluminium in an ACSR conductor can be selected based on the mechanical strength and current carrying capacity demanded by each application.
ACSR conductors have a long service record due to their economy, dependability and favourable strength to weight ratio. Such conductors combine the light weight and high conductivity of the aluminum wires with the tensile strength and ruggedness of the steel core. For overhead line design, this enables higher tensions to be used with less conductor sag and longer spans than would be possible with most other types of conductors.
Featureshigh Tensile strengthbetter sag propertieseconomic designbest suited for transmission lines with long spansACSR Conductor Specification
ACSR BS 215
| Code name | Nominal
Aluminium Area | Stranding and
wire diameter | Sectioanal
area
of aluminium | Total
Sectional area | Overall
Diameter | Linear
mass |
|
|
| mm² | Aluminium | Steel | mm² | mm² | mm | kg/km |
| Mole | 10 | 6/1.50 | 1/1.50 | 10.62 | 12.39 | 4.50 | 43 |
| Squirrel | 20 | 6/2.11 | 1/2.11 | 20.94 | 24.43 | 6.33 | 85 |
| Gopher | 25 | 6/2.36 | 1/2.36 | 26.24 | 30.62 | 7.08 | 106 |
| Weasel | 30 | 6/2.59 | 1/2.59 | 31.61 | 36.88 | 7.77 | 128 |
| Fox | 35 | 6/2.79 | 1/2.79 | 36.66 | 42.77 | 8.37 | 149 |
| Ferret | 40 | 6/3.00 | 1/3.00 | 42.41 | 49.48 | 9.00 | 172 |
| Rabbit | 50 | 6/3.35 | 1/3.35 | 52.88 | 61.7 | 10.05 | 214 |
| Mink | 60 | 6/3.66 | 1/3.66 | 63.18 | 73.71 | 10.98 | 255 |
| Shunk | 60 | 12/2.59 | 7/2.59 | 63.27 | 100.30 | 12.95 | 465 |
| Beaver | 70 | 6/3.99 | 1/3.99 | 74.82 | 87.29 | 11.97 | 302 |
| Horse | 70 | 12/2.79 | 7/2.79 | 73.37 | 116.2 | 13.95 | 538 |
| Raccon | 75 | 6/4.10 | 1/4.10 | 79.2 | 92.4 | 12.30 | 320 |
| Otter | 80 | 6/4.22 | 1/4.22 | 83.88 | 97.86 | 13.98 | 339 |
| Cat | 90 | 6/4.50 | 1/4.50 | 95.4 | 111.30 | 15.90 | 386 |
| Hare | 100 | 6/4.72 | 1/4.72 | 105.0 | 122.50 | 17.50 | 425 |
| Dog | 100 | 6/4.72 | 7/1.57 | 105.0 | 118.5 | 14.15 | 394 |
| ASTM-B 232/B 232M METRIC UNITS |
|
| Code Name | Size | Stranding | Section | Overall
Diameter | Conductor
Weight | Rated
Strength |
| No x Ømm | mm2 | mm | kg/km |
| AWG-MCM | Al. | Steel | Total | Al. | Total | Core | Total | Al. | kN |
|
| TURKEY | 6 | 6X1,68 | 1x1,68 | 15,52 | 13,3 | 5,04 | 1,68 | 53,8 | 36,5 | 5,295 |
| SWAN | 4 | 6X2,12 | 1X2,12 | 24,71 | 21,18 | 6,36 | 2,12 | 85,4 | 58 | 8,28 |
| SWANATE | 4 | 7X1,96 | 1x2,61 | 26,47 | 21,12 | 6,53 | 2,61 | 99,7 | 58 | 10,5 |
| SPARROW | 2 | 6X2,67 | 1X2,67 | 39,2 | 33,6 | 8,01 | 2,67 | 135,9 | 92,3 | 12,68 |
| SPARATE | 2 | 7X2,47 | 1X3,30 | 42,09 | 33,54 | 5,24 | 3,3 | 158,8 | 92,3 | 6,2 |
| ROBIN | 1 | 6X3,00 | 1X3,00 | 49,48 | 42,41 | 9 | 3 | 171,4 | 116,4 | 15,8 |
| RAVEN | 1/0 | 6X3,37 | 1X3,37 | 62,44 | 53,52 | 10,11 | 3,37 | 216,1 | 146,7 | 19,49 |
| QUAIL | 2/0 | 6X3,78 | 1X3,78 | 78,55 | 67,33 | 11,34 | 3,78 | 272,5 | 185 | 23,63 |
| PIGEON | 3/0 | 6X4,25 | 1x4,25 | 99,31 | 85,12 | 12,75 | 4,25 | 343,5 | 233,2 | 29,46 |
| PENGUIN | 4/0 | 6X4,77 | 1X4,77 | 125,09 | 107,22 | 14,31 | 4,77 | 433,2 | 294,2 | 37,16 |
| WAXWING | 266,8 | 18X3,09 | 1X3,09 | 142,5 | 135 | 15,45 | 3,09 | 431,6 | 372,9 | 30,62 |
| PARTRIDGE | 266,8 | 26X2,57 | 7X2,00 | 156,9 | 134,9 | 16,28 | 6 | 546,1 | 374,3 | 50,28 |
| ORSTRICH | 300 | 26X2,73 | 7X2,12 | 176,9 | 152,2 | 17,28 | 6,36 | 614,6 | 421,3 | 56,52 |
| MERLIN | 336,4 | 18X3,47 | 1X3,47 | 179,7 | 170,2 | 17,35 | 3,47 | 543,2 | 469,7 | 38,36 |
| LINNET | 336,4 | 26X2,89 | 7X2,25 | 198,4 | 170,6 | 18,31 | 6,75 | 689 | 472,2 | 62,75 |
| ORIOLE | 336,4 | 30X2,69 | 7X2,69 | 210,3 | 170,5 | 18,83 | 8,07 | 784,3 | 473,2 | 76,98 |
IEC ACSR
| Code Name | Area | Number of Wire | Wire dia | Diameter | Linear Mass |
| Aluminium | Alum | Steel | Core | Cond |
| mm² | Al | St | mm | mm | mm | mm | kg/km |
| 16 | 16 | 6 | 1 | 1.84 | 1.84 | 1.84 | 5.53 | 64.6 |
| 25 | 25 | 6 | 1 | 2.30 | 2.30 | 2.30 | 6.91 | 100.9 |
| 40 | 40 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 |
| 63 | 63 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11.0 | 254.4 |
| 100 | 100 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 |
| 125 | 125 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 |
| 125 | 125 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 |
| 160 | 160 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 508.3 |
| 160 | 160 | 26 | 7 | 2.80 | 2.18 | 6.53 | 17.7 | 644.9 |
| 200 | 200 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 |
| 200 | 200 | 26 | 7 | 3.13 | 2.43 | 7.30 | 19.8 | 806.2 |
| 250 | 250 | 22 | 7 | 3.80 | 2.11 | 6.34 | 21.6 | 880.6 |
| 250 | 250 | 26 | 7 | 3.50 | 2.72 | 8.16 | 22.2 | 1007.7 |
| 315 | 315 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.6 |
| 315 | 315 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 |
We are professional acsr conductor Mamufacturer since 2006, we supply our acsr to global market with ISO 9001 certificate, we have a hight quality and very competitive acsr price in this market, welcome inquiry or pay a visit to our factory.
Asian Sun manufacture and supply ACSR on Non-Returnable wooden/steel reels or Returnable steel reels depending on customer requirement.
Please contact us for more information about acsr conductor or other kinds of wire and cables.
