Factory Direct Supply 1800c U Shape Mosi2 Heating Element with Best Price
| Price: |
US $ 15/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MoSi2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Mosi2 Heating Element |
| Grade: |
1700,1800 |
| Temperature: |
U,L,W,Special |
Product Description

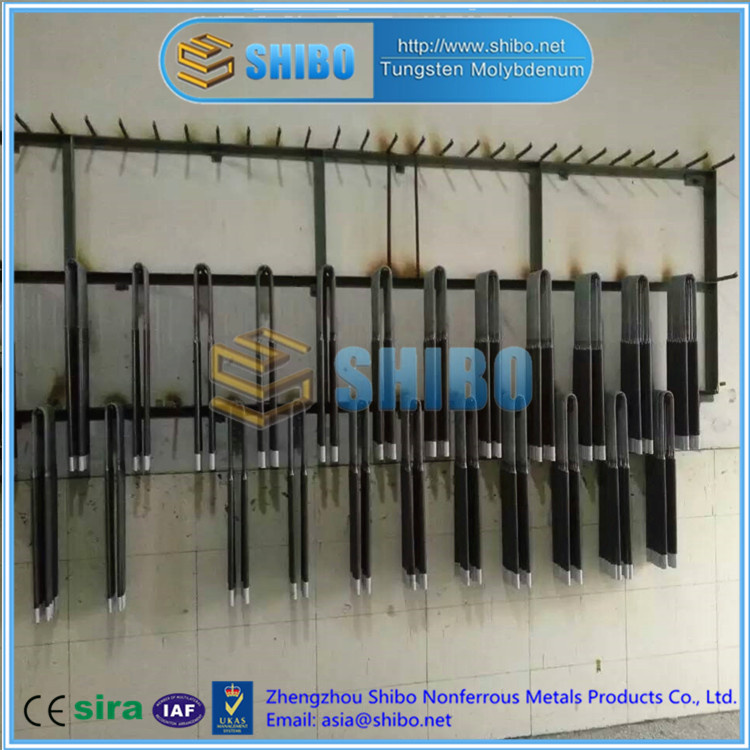

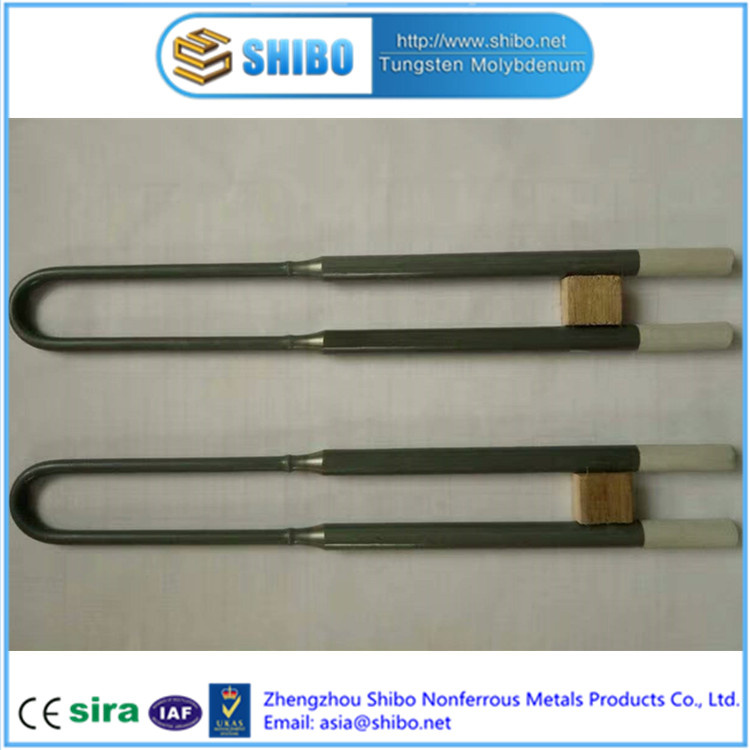

MoSi2 heating elementMoSi2 electric resistance heating element is made of molybdenum disilicide. It has the unique features of high temperature resistance and oxidation resistance. When it is used in high temperature and oxidizing atmosphere, a shining and dense layer of quartz (SiO2) glass membrane generates on the appearance of the MoSi2 heating element, which protects the inner side of the MoSi2 rod from being further oxidized.
Specification:Grade: 1700 / 1800Dia: 3/6, 4/9, 6/12, 9/18, 12/24, etc.
Type: U,L,W, Pole, special shape
And we can produce according to your requests.Physics Characters| Volume Density | Bending Strength | Vickers Hardness | Porosity | Water absorption | Heating Elongation Rate |
| 5.5g/cm3 | 15-25 kg/cm3 | (HV)570kg/mm2 | 7.4% | 1.2% | 4% |
Chemistry CharacterMoSi2 heating element is used in the high temperature under oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400C and 700C for a long time, otherwise the element will be cremated under the strong oxidizing function in the low temperature.The Using Temperature Under Different Atmosphere| Atmosphere | Using Temperature | Max Temperature |
| 1700 | 1800 |
| No2 ,Co2 ,O2 ,Air | 1700°C | 1800°C |
| He ,Ar ,Ne | 1650°C | 1750°C |
| So2 | 1600°C | 1700°C |
| CO ,H2 | 1500°C | 1600°C |
| Wet H2 | 1400°C | 1500°C |
| Dry H2 | 1350°C | 1450°C |
We provide special designed MoSi2 elements according to customer needs, enabling an optimized element design for each particular application
About UsWe're professional manufacturer of molybdenum and tungsten products, MoSi2 and SiC heating element, laboratory furnace. Our products are exported to USA, Europe, Middle East and Southeast Asia, etc. We're a factory with ISO quality system certification. We can produce as per customer's request and provide products with good quality and best price!Our products include: | Molybdenum Product | Molybdenum Sheet/Plate/Rod/Bar/Electrode/Wire |
| Molybdenum Crucible/Tube/Boat/Disc/Nut |
| Molybdenum Special Shape Product |
| Tungsten Product | Tungsten Sheet/Plate/Rod/Bar/Wire |
| Tungsten Crucible/Tungsten heat shield |
| Tungsten Special Shape Product |
| Alloy Product | TZM Alloy/Mo-La Alloy |
| Tungsten Copper Alloy |
| MoSi2 heating element | U, L, W, Special shape |
| SiC heating element | U, W, ED, Dumbbell, SC, SCR shape |
| Laboratory furnace | Muffle furnace, Tube furnace
Atmosphere furnace, Vacuum Furnace |
| Accessories | Holders, Straps, Alumina tube |
Why choose Shibo?1. More than 20 years' manufacturing experience, leading factory2. Reasonable factory direct wholesale prices3. Steady and top quality, timely delivery, reliable after-sale service
Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.
Zhengzhou Shibo locates at Zhongyuan Industry Area, Zhengzhou City, Henan Province, where is a hub of communications, commercial and trading center in China. Holding the enterprise spirit of "Unity, Hard-working, Innovation, Efficiency", Zhengzhou Shibo enjoys high reputation for its high quality products and knight service in domestic and abroad, at the same time, the Company grows very fast with a total area of about 25, 000 square meters and 103 employees. The products are exported to USA, Europe, Middle East, South East Asia, Russia, Japan and Korea and so on owing to the keen consciousness of quality and commercial reputation.
Products of Zhengzhou Shibo are widely used in the applications of glass, Chinaware, lighting, magnetism materials, fluorescent materials, false crystal, Machinery, Electro Vacuum materials, industrial apparatus etc. There are four main categories of Products: Electric heating elements, Nonferrous metals products, Furnace and fire-proof material.
Zhengzhou Shibo values product quality and keeps pursuing excellent quality. Holding the concept of "Creating the value for customers and seeking for development with mutual benefit", Zhengzhou Shibo will sincerely serve the customers at home and abroad with quality products for a better future.
We sincerely welcome all the friends at home and abroad to visit our company.
