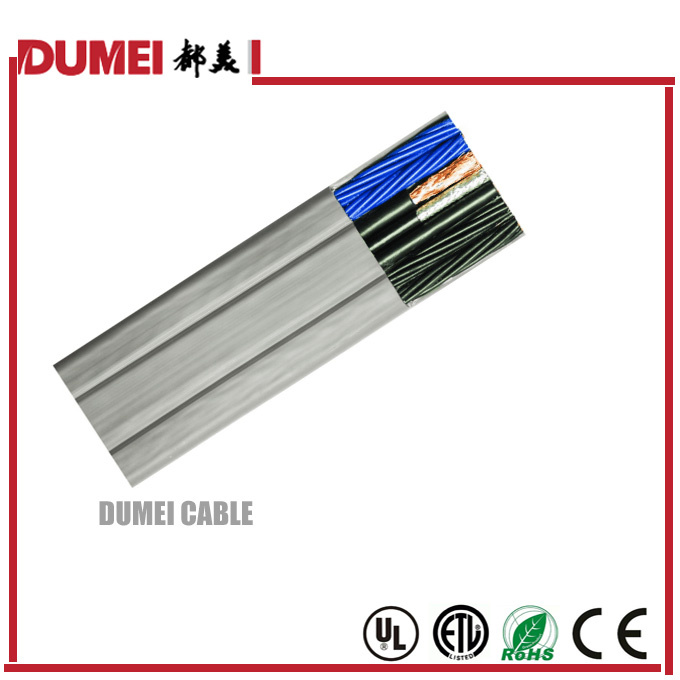

Factory Flat Traveling Cable for Low Rise Elevator

Name: Factory Flat Traveling Cable for Low Rise Elevator
Brand: all-electronics-online.com
SKU: 727453592
Availability: InStock
Rating: 4.9 (92 reviews)

Price:	Negotiable/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TVVP
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	3C
Type:	Flat Traveling Cable for Low Rise Elevator
Model:	Flat Traveling Cable for Low Rise Elevator
Brand:	Dumei or OEM

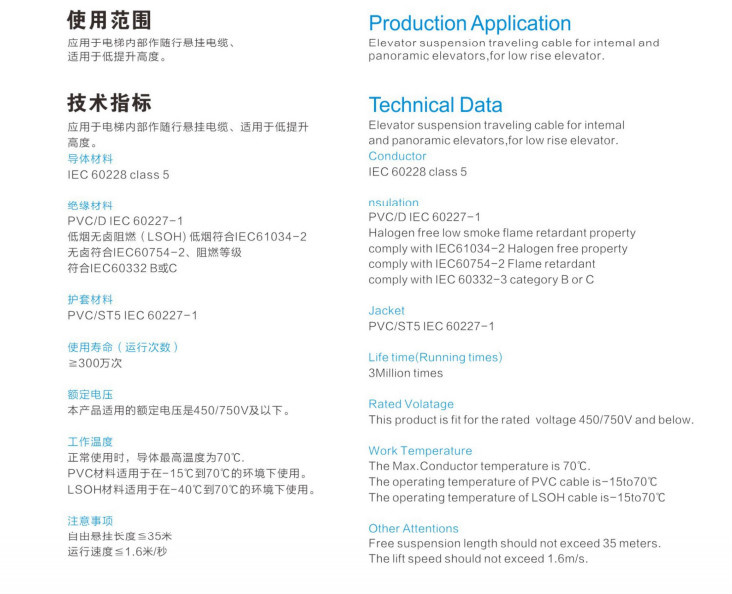

Product Description

1\ product describe

60227 IEC71f (TVVB)
(Product Standard):GB/T 5023.6/IEC 60227-6
	mm²				20ºC
Type	Specification	Conductor Structure	Diameter.(mm)	Uo/U(V)	20ºC conductor DCR(Ω/KM)
60227 IEC71f(TVVB)	3×0.75	30/0.18	4.75×8.2	300/500	<=26
60227 IEC71f(TVVB)	3×1.0	40/0.18	4.95×11.5	300/500	<=19.5
60227 IEC71f(TVVB)	6×0.75	30/0.18	4.75×18	300/500	<=26
60227 IEC71f(TVVB)	6×1.0	40/0.18	4.95×19.2	300/500	<=19.5
60227 IEC71f(TVVB)	9×0.75	30/0.18	4.75×25	300/500	<=26
60227 IEC71f(TVVB)	9×1.0	40/0.18	4.95×26.8	300/500	<=19.5
60227 IEC71f(TVVB)	12×0.75	30/0.18	4.75×33.7	300/500	<=26
60227 IEC71f(TVVB)	12×1.0	40/0.18	4.95×36.1	300/500	<=19.5
60227 IEC71f(TVVB)	16×0.75	30/0.18	4.75×44	300/500	<=26
60227 IEC71f(TVVB)	16×1.0	40/0.18	4.95×47.2	300/500	<=19.5
60227 IEC71f(TVVB)	18×0.75	30/0.18	4.75×48.8	300/500	<=26
60227 IEC71f(TVVB)	18×0.75	40/0.18	4.95×52.2	300/500	<=19.5
60227 IEC71f(TVVB)	20×0.75	30/0.18	4.75×53.5	300/500	<=26
60227 IEC71f(TVVB)	20×1.0	40/0.18	4.95×57.5	300/500	<=19.5
60227 IEC71f(TVVB)	24×0.75	30/0.18	4.75×64.5	300/500	<=26
60227 IEC71f(TVVB)	24×1.0	40/0.18	4.95×65.5	300/500	<=19.5
60227 IEC71f(TVVB)	3×1.5	29/0.25	5.6×12.7	450/750	<=13.3
60227 IEC71f(TVVB)	3×2.5	48/0.25	6.25×15	450/750	<=7.98
60227 IEC71f(TVVB)	6×1.5	29/0.25	5.6×24.6	450/750	<=13.3
60227 IEC71f(TVVB)	6×2.5	48/0.25	6.25×27.5	450/750	<=7.98
60227 IEC71f(TVVB)	9×1.5	29/0.25	5.6×30.9	450/750	<=13.3
60227 IEC71f(TVVB)	9×2.5	48/0.25	6.25×39.8	450/750	<=7.98
60227 IEC71f(TVVB)	12×1.5	29/0.25	5.6×41.6	450/750	<=13.3
60227 IEC71f(TVVB)	12×2.5	48/0.25	6.25×50.7	450/750	<=7.98

TVVBP,TVVBPG
(Product Standard):JB/T 8734.6
	mm²				20ºC
Type	Specification	Conductor Structure	Diameter.(mm)	Uo/U(V)	20ºC conductor DCR(Ω/KM)
TVVBP()	2×2P×0.75	30/0.18	9.0×15.2	300/500	<=26
TVVBP()	3×2P×0.75	30/0.18	9.0×20.8	300/500	<=26
TVVBP()	16×0.75+2×2P×0.75	30/0.18	9.0×38.8	300/500	<=26
TVVBP()	18×0.75+2×2P×0.75	30/0.18	9.0×37.6	300/500	<=26
TVVBPG-TV()	18×0.75+2×2P×0.75+1×0.75+6×0.5+75-5	30/0.18 20/0.18	9.0×46.8	300/500	<=26/39
TVVBPG-TV()	18×0.75+2×2P×0.75+1×0.75+6×0.5+75-5	30/0.18 20/0.18	9.0×46.8	300/500	<=26/39
TVVBP()	24×0.75+2×2P×0.75	30/0.18	9.0×43.4	300/500	<=26
TVVBP()	16×0.75+2×2P×0.75	30/0.18	9.0×38.8	300/500	<=26
TVVBP()	24×0.75+2×2P×0.75	30/0.18	9.0×43.4	300/500	<=26

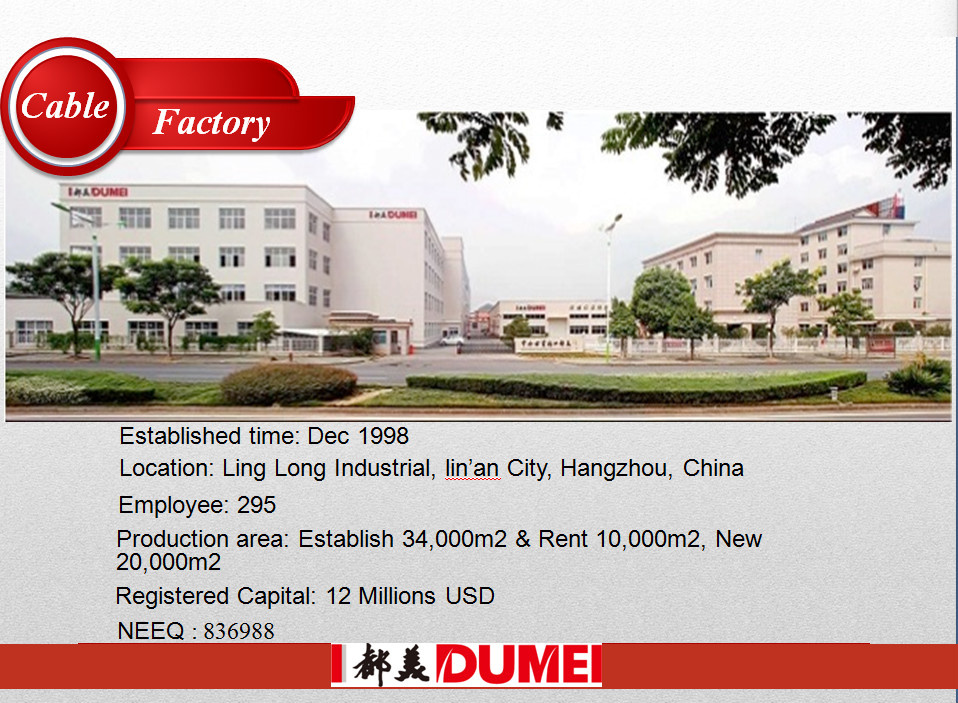

2\Cable Factory

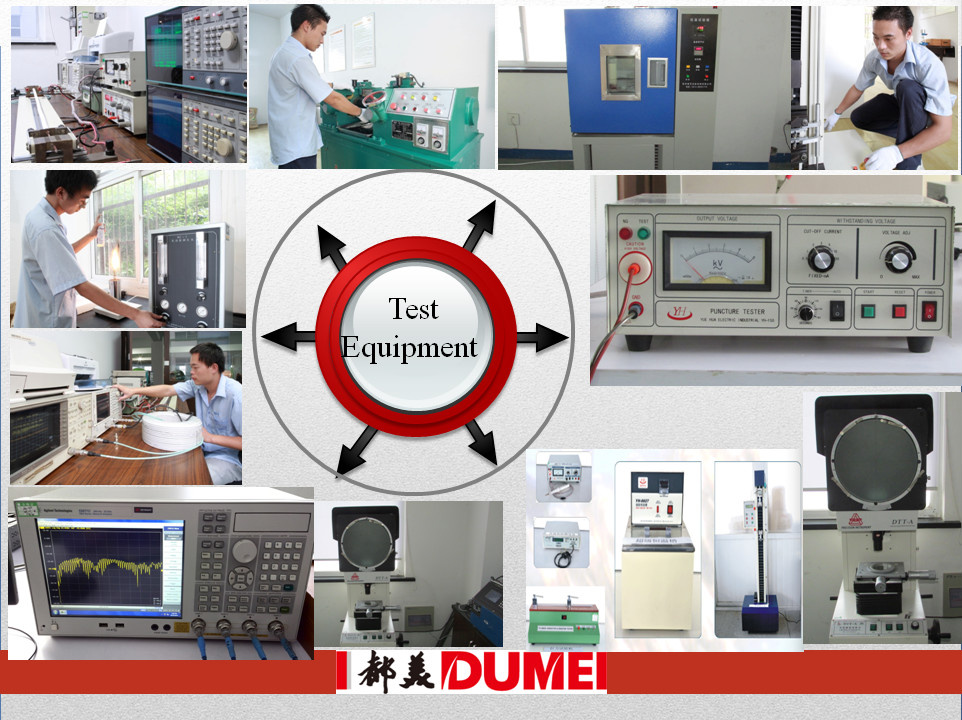

3\Advanced Measurement Equipments

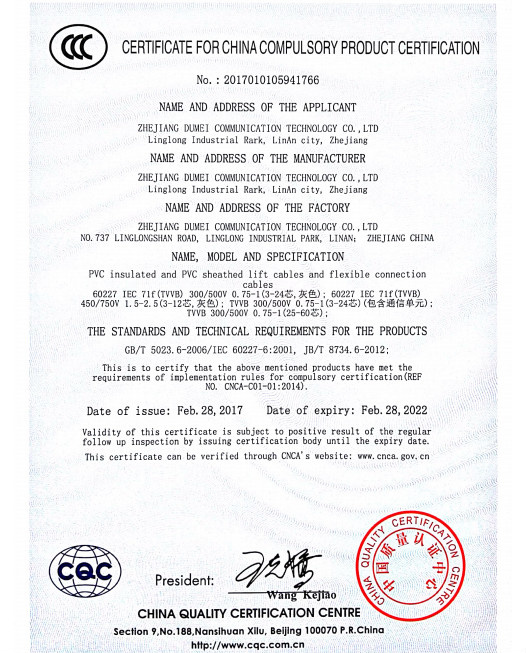

4\ Certificates

5\Contact now

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
