Flat Tvvb Traveling Elevator Cable for Middle Rise

Name: Flat Tvvb Traveling Elevator Cable for Middle Rise
Brand: all-electronics-online.com
SKU: 727970352
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	Negotiable/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TVVB
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	3c
Type:	Flat Traveling Cable for Low Rise Elevator
Model:	Flat Traveling Cable for Low Rise Elevator
Brand:	Dumei or OEM

Product Description

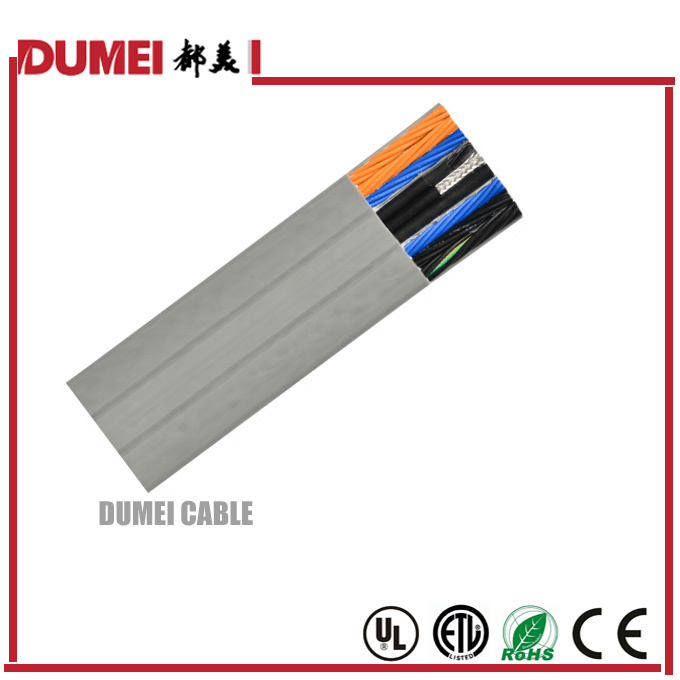

Flat TVVB Traveling Elevator Cable for Middle Rise

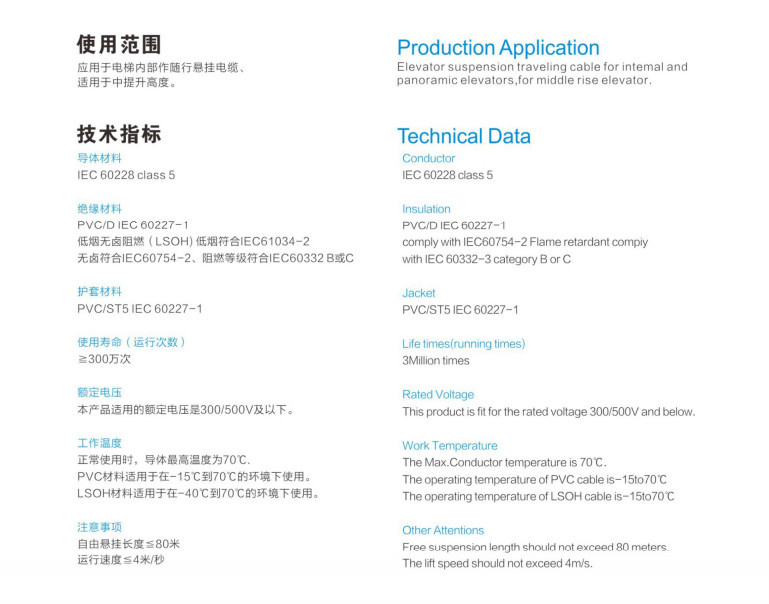

1\ product describe

TVVB
(Product Standard):JB/T 8734.6
	mm²				20ºC
Type	Specification	Conductor Structure	Diameter.(mm)	Uo/U(V)	20ºC conductor DCR(Ω/KM)
TVVB	30×0.75	30/0.18	8.4×38	300/500	<=26
TVVB	36×0.75	30/0.18	9.0×43	300/500	<=26
TVVB	40×0.75	30/0.18	8.4×50.4	300/500	<=26
TVVB	42×0.75	30/0.18	9.0×49.6	300/500	<=26
TVVB	48×0.75	30/0.18	9.0×55	300/500	<=26
TVVB	54×0.75	30/0.18	9.0×61.6	300/500	<=26
TVVB	60×0.75	30/0.18	9.0×67	300/500	<=26
TVVBP-CAT5()	24×0.75+2×2P×0.75+1×2+CAT5	30/0.18 38/0.25	9.0×50.5	300/500	<=26/10.2

TVVBP-TV()	26×0.75+2×2P×0.75+75-5	30/0.18	9.0×49.4	300/500	<=26
TVVBP-TV()	28×0.75+2×2P×0.75+75-5	30/0.18	9.0×49.4	300/500	<=26
TVVBP-TV()	30×0.75+2×2P×0.75+75-5	30/0.18	9.0×57.8	300/500	<=26
TVVBP-TV()	36×0.75+2×2P×0.75+75-5	30/0.18	9.0×61.4	300/500	<=26
TVVBP()	24×0.75+2×2P×0.75+1×2	30/0.18 38/0.25	9.8×44.2	300/500	<=26/10.2

TVVBP()	24×0.75+2×2P×0.75+2×0.75	30/0.18	9.0×43.4	300/500	<=26

TVVBP-TV()	30×0.75+2×2P×0.75+1×2+75-5	30/0.18 38/0.25	9.0×55.8	300/500	<=26/10.2

TVVBP-TV()	36×0.75+2×2P×0.75+75-5	30/0.18	9.0×61.4	300/500	<=26

TVVBP-TV()	40×0.75+2×2P×0.75+1×2+75-5	30/0.18 38/0.25	9.0×67.3	300/500	<=26/10.2

TVVBP()	40×0.75+2×2P×0.75	30/0.18	9.0×60.8	300/500	<=26

TVVBP-TV()	24×0.75+2×2P×0.75+1×2+2×1P+75-5	30/0.18 38/0.25	9.0×58.8	300/500	<=26/10.2

TVVBP()	30×0.75+2×2P×0.75+1×2	30/0.18 38/0.25	9.0×51.6	300/500	<=26/10.2

TVVBP-TV()	36×0.75+2×2P×0.75+1×2+75-5	30/0.18 38/0.25	9.0×60.2	300/500	<=26/10.2

TVVBP()	44×0.75+2×2P×0.75+1×2+2×1P	30/0.18 38/0.25	9.0×73.3	300/500	<=26/10.2

TVVBP()	46×0.75+2×2P×0.75+2×0.75	30/0.18	9.0×68.8	300/500	<=26

TVVBP-TV()	48×0.75+2×2P×0.75+75-5	30/0.18	9.0×71.4	300/500	<=26

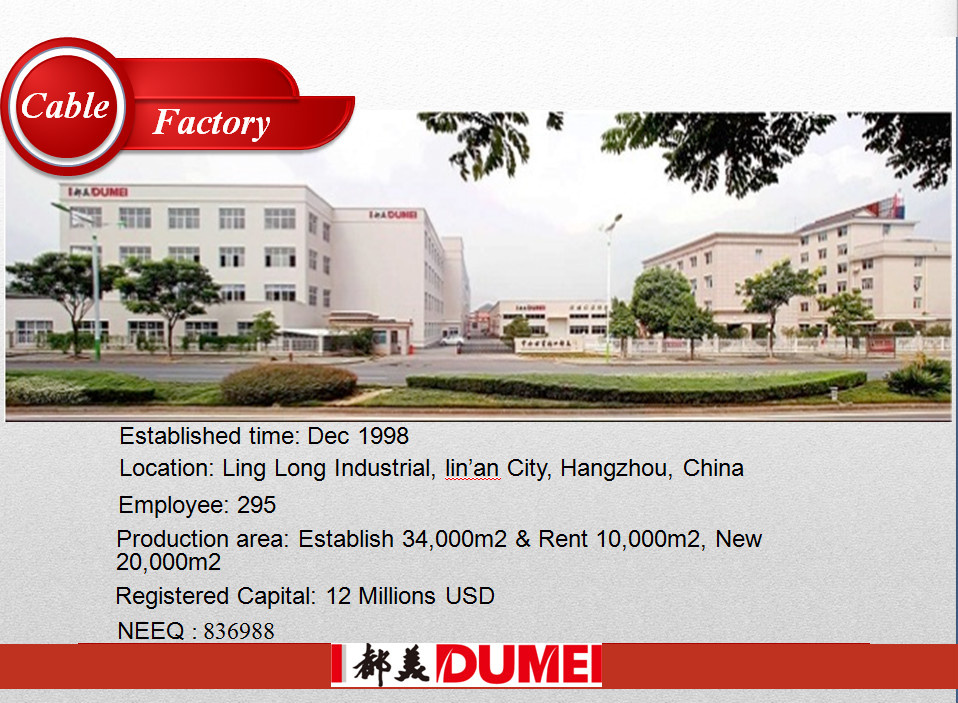

2\Cable Factory

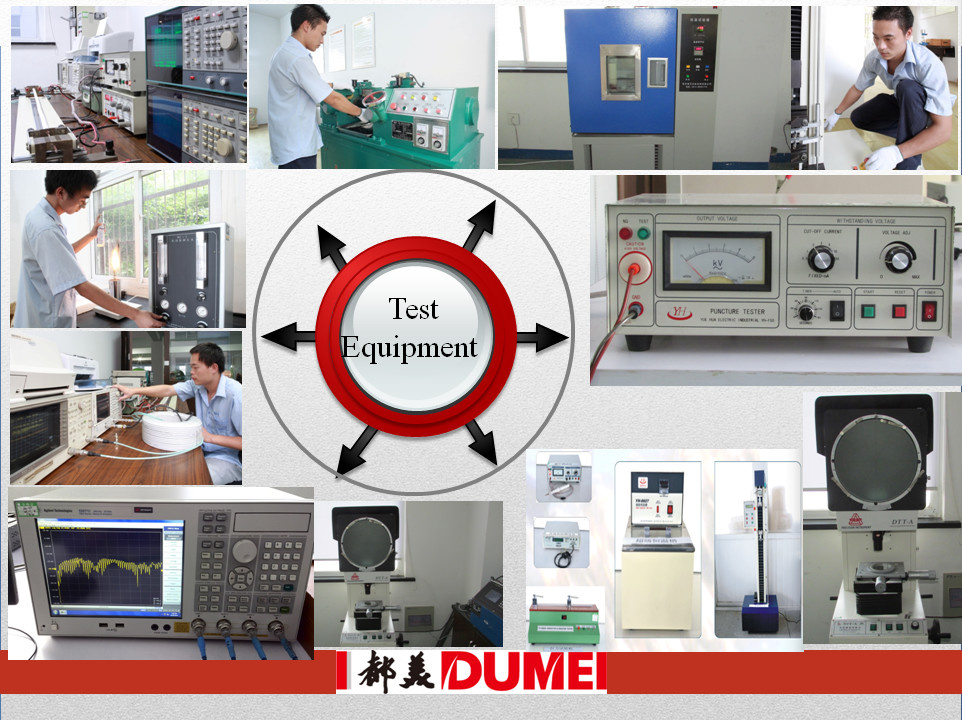

3\Advanced Measurement Equipments

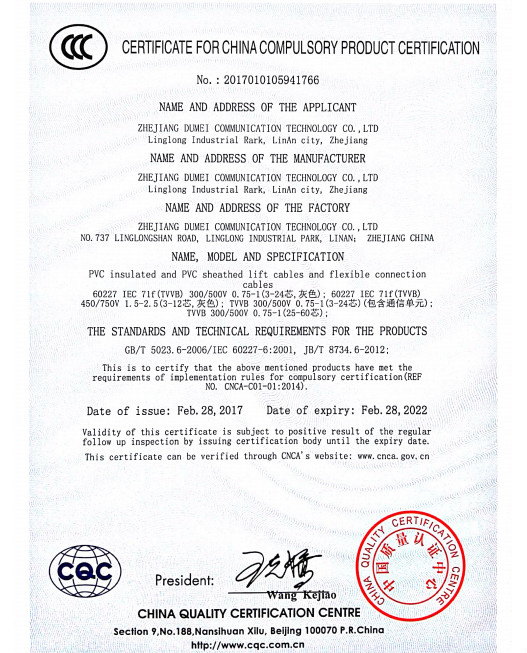

4\ Certifications

5\Contact now

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
