Factory Flexible Control Cable Avvr Escalator and Elevator Cable

Name: Factory Flexible Control Cable Avvr Escalator and Elevator Cable
Brand: all-electronics-online.com
SKU: 727968712
Availability: InStock
Rating: 4.3 (46 reviews)

Price:	Negotiable/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AVVR
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	3c
Type:	Flexible Control Cable
Application:	Elevator Escalator Cable
Brand:	Dumei or OEM

Product Description

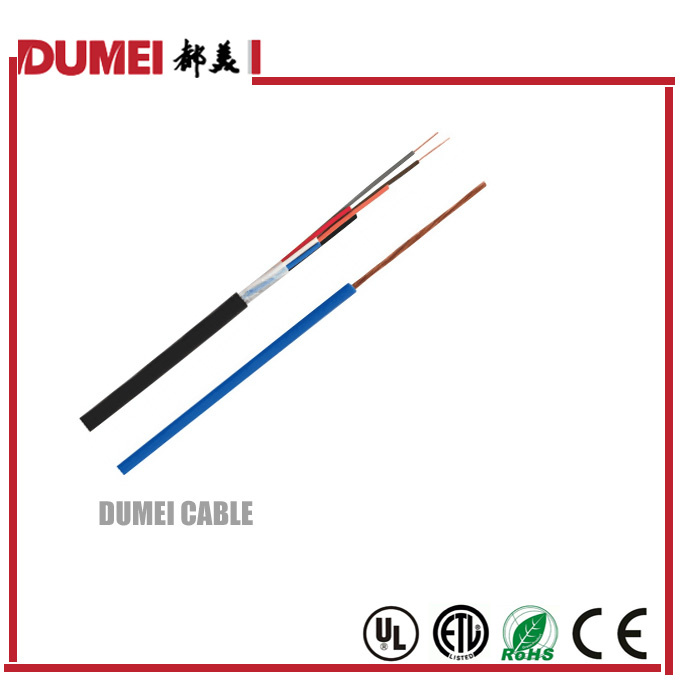

Factory Flexible Control Cable AVVR Escalator and Elevator cable

1\ product describe

/
Flexibie Control Cable (Escalator&Elevator)
AVR,AVVR
(Product Standard):JB/T 8734.4
	mm²					20ºC	70ºC
Type	Specification	Conductor Structure	Min. diameter(mm)	Max.diameter (mm)	Uo/U(V)	(Ω/KM)20ºC conductor DCR(Ω/KM)	(MΩ/KM)70ºC Min.insulation resistance
AVR	1×0.2	12/0.15	/	1.6	300/300	<=92.3	0.014
AVR	1×0.3	16/0.15	/	2	300/300	<=69.2	0.014
AVR	1×0.4	23/0.15	/	2.1	300/300	<=48.2	0.012
AVVR	2×0.2	12/0.15	3.6	4.7	300/300	<=92.3	0.014
AVVR	2×0.3	16/0.15	4.1	5.3	300/300	<=69.2	0.014
AVVR	2×0.4	23/0.15	4.4	5.7	300/300	<=48.2	0.013
AVVR	3×0.2	12/0.15	3.8	4.9	300/300	<=92.3	0.014
AVVR	3×0.3	16/0.15	4.4	5.7	300/300	<=69.2	0.014
AVVR	3×0.4	23/0.15	4.7	6	300/300	<=48.2	0.013
AVVR	4×0.2	12/0.15	4.2	5.4	300/300	<=92.3	0.014
AVVR	4×0.3	16/0.15	4.8	6.2	300/300	<=69.2	0.014
AVVR	4×0.4	23/0.15	5.1	6.6	300/300	<=48.2	0.013
AVVR	5×0.2	12/0.15	4.5	5.8	300/300	<=92.3	0.014
AVVR	5×0.3	16/0.15	5.3	6.7	300/300	<=69.2	0.014
AVVR	5×0.4	23/0.15	5.6	7.2	300/300	<=48.2	0.013
AVVR	(6,7)×0.2	12/0.15	4.9	6.3	300/300	<=92.3	0.014
AVVR	(6,7)×0.3	16/0.15	5.7	7.3	300/300	<=69.2	0.014
AVVR	(6,7)×0.4	23/0.15	6.2	7.8	300/300	<=48.2	0.013
AVVR	8×0.2	12/0.15	5.6	7.2	300/300	<=92.3	0.014
AVVR	8×0.3	16/0.15	6.5	8.2	300/300	<=69.2	0.014
AVVR	8×0.4	23/0.15	7	8.6	300/300	<=48.2	0.013
AVVR	9×0.2	12/0.15	6	7.6	300/300	<=92.3	0.014
AVVR	9×0.3	16/0.15	7.2	9	300/300	<=69.2	0.014
AVVR	9×0.4	23/0.15	7.8	9.2	300/300	<=48.2	0.013
AVVR	10×0.2	12/0.15	6.3	8	300/300	<=92.3	0.014
AVVR	10×0.3	16/0.15	7.8	9.7	300/300	<=69.2	0.014
AVVR	10×0.4	23/0.15	8.3	10.4	300/300	<=48.2	0.013
AVVR	12×0.2	12/0.15	6.5	8.2	300/300	<=92.3	0.014
AVVR	12×0.3	16/0.15	8	10.1	300/300	<=69.2	0.014
AVVR	12×0.4	23/0.15	8.6	10.8	300/300	<=48.2	0.013
AVVR	14×0.2	12/0.15	7.2	9.1	300/300	<=92.3	0.014
AVVR	14×0.3	16/0.15	8.4	10.6	300/300	<=69.2	0.014
AVVR	14×0.4	23/0.15	9.1	11.3	300/300	<=48.2	0.013
AVVR	16×0.2	12/0.15	7.6	9.6	300/300	<=92.3	0.014
AVVR	16×0.3	16/0.15	8.9	11.1	300/300	<=69.2	0.014
AVVR	16×0.4	23/0.15	9.6	11.9	300/300	<=48.2	0.013
AVVR	18×0.2	12/0.15	8.6	10	300/300	<=92.3	0.014
AVVR	18×0.3	16/0.15	9.5	11	300/300	<=69.2	0.014
AVVR	18×0.4	23/0.15	10.5	11.6	300/300	<=48.2	0.013
AVVR	19×0.2	12/0.15	8.1	10.1	300/300	<=92.3	0.014
AVVR	19×0.3	16/0.15	9.4	11.7	300/300	<=69.2	0.014
AVVR	19×0.4	23/0.15	10.1	12.6	300/300	<=48.2	0.013

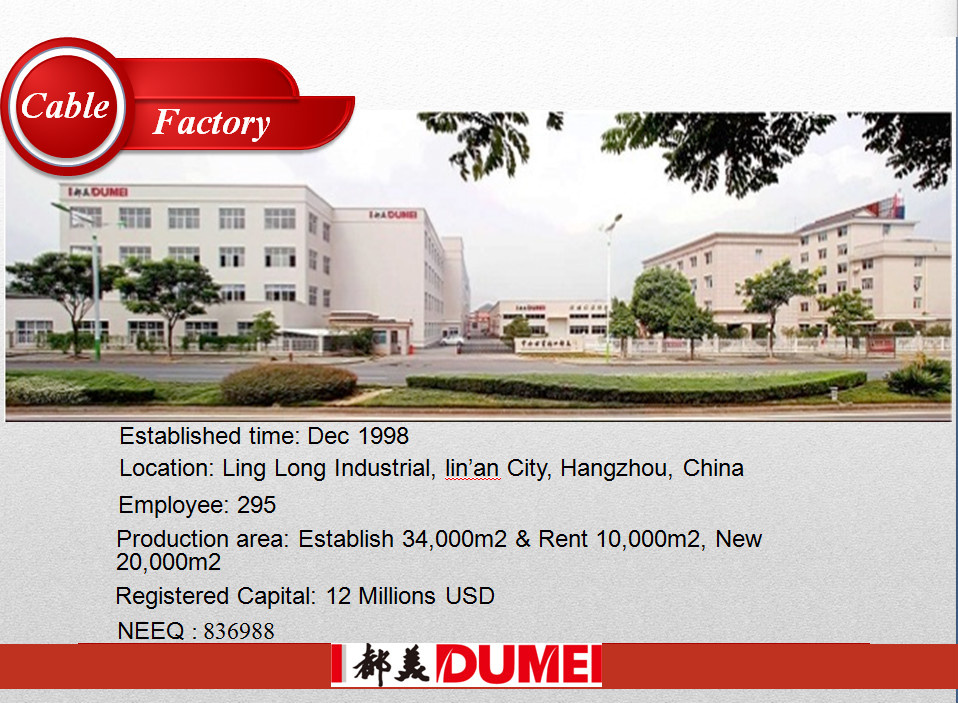

2\Cable Factory

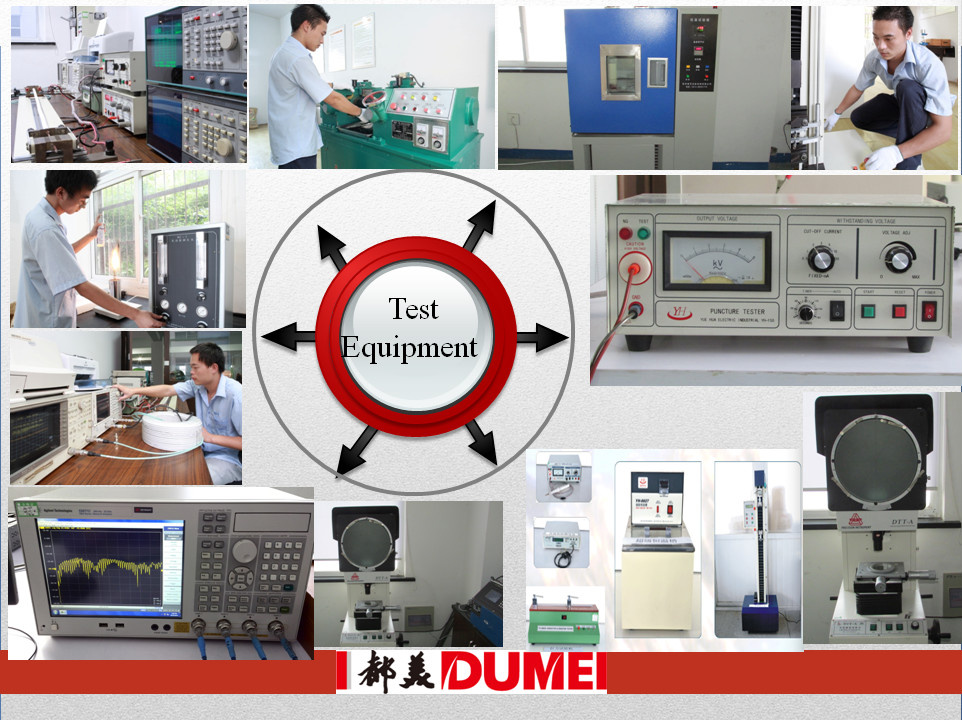

3\Advanced Measurement Equipments

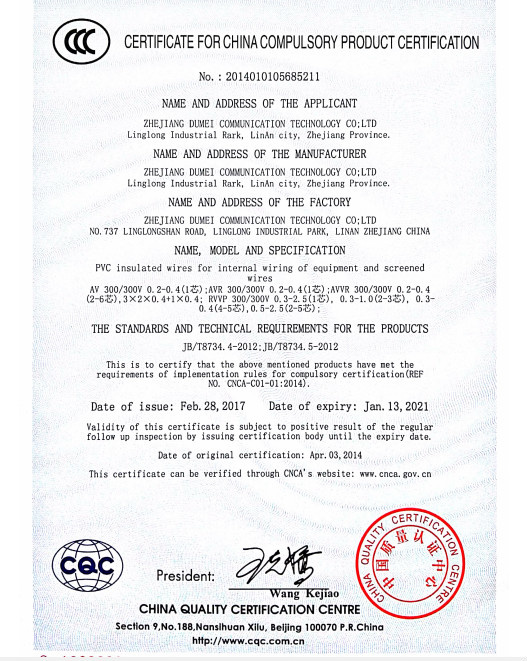

4\ Certifications

5\Contact now

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
