Factory Flexible Control Cable Rvv Escalator and Elevator Cable

Name: Factory Flexible Control Cable Rvv Escalator and Elevator Cable
Brand: all-electronics-online.com
SKU: 727968982
Availability: InStock
Rating: 4.9 (43 reviews)

Price:	Negotiable/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RVV
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	3c
Type:	Flexible Control Cable
Application:	Elevator Escalator Cable
Brand:	Dumei or OEM

Product Description

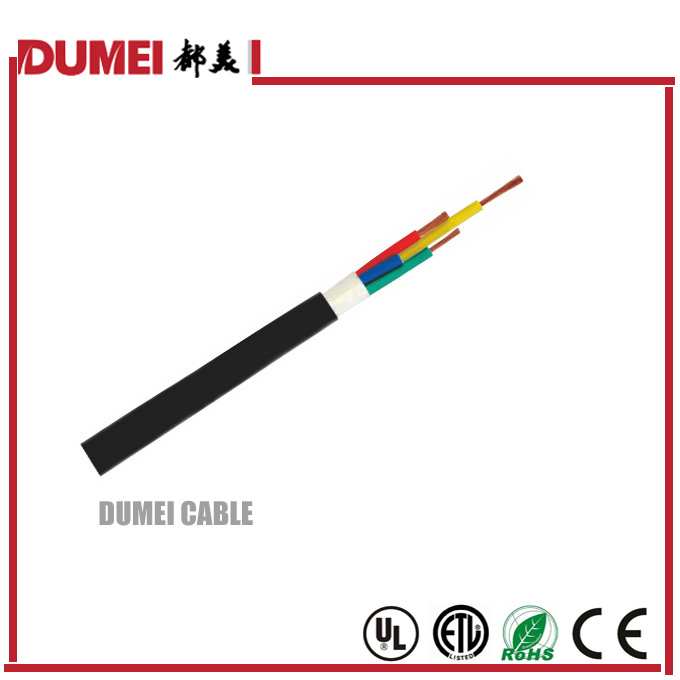

Factory Flexible Control Cable RVV Escalator and Elevator cable

1\ product describe

/
Flexibie Control Cable (Escalator&Elevator)
RVV
(Product Standard):JB/T 8734.3
	mm²					20ºC	70ºC
Type	Specification	Conductor Structure	Min. diameter(mm)	Max.diameter (mm)	Uo/U(V)	(Ω/KM)20ºC conductor DCR(Ω/KM)	(MΩ/KM)70ºC Min.insulation resistance
RVV	6×0.75	30/0.18	6.5	9.6	300/500	<=26	0.011
RVV	7×0.75	30/0.18	6.5	9.6	300/500	<=26	0.011
RVV	8×0.75	30/0.18	7.5	10.6	300/500	<=26	0.011
RVV	10×0.75	30/0.18	9	13.2	300/500	<=26	0.011
RVV	12×0.75	30/0.18	9.5	13.2	300/500	<=26	0.011
RVV	15×0.75	30/0.18	10.7	14	300/500	<=26	0.011
RVV	16×0.75	30/0.18	10.7	14	300/500	<=26	0.011
RVV	19×0.75	30/0.18	11.3	15	300/500	<=26	0.011
RVV	20×0.75	30/0.18	11.6	15.5	300/500	<=26	0.011
RVV	24×0.75	30/0.18	13.5	17	300/500	<=26	0.011
RVV	25×0.75	30/0.18	13.6	17.1	300/500	<=26	0.011
RVV	30×0.75	30/0.18	14.3	19.5	300/500	<=26	0.011
RVV	37×0.75	30/0.18	15.5	21.6	300/500	<=26	0.011
RVV	40×0.75	30/0.18	16.2	21.8	300/500	<=26	0.011
RVV	6×1	32/0.2	8.7	11	300/500	<=19.5	0.01
RVV	7×1	32/0.2	8.7	11	300/500	<=19.5	0.01
RVV	8×1	32/0.2	9.8	13.2	300/500	<=19.5	0.01
RVV	10×1	32/0.2	11.7	14.5	300/500	<=19.5	0.01
RVV	12×1	32/0.2	11.9	14.8	300/500	<=19.5	0.01
RVV	15×1	32/0.2	11.6	15.5	300/500	<=19.5	0.01
RVV	16×1	32/0.2	11.6	15.5	300/500	<=19.5	0.01
RVV	19×1	32/0.2	14.1	17.8	300/500	<=19.5	0.01
RVV	20×1	32/0.2	14.6	18.3	300/500	<=19.5	0.01
RVV	24×1	32/0.2	16.8	20.5	300/500	<=19.5	0.01
RVV	25×1	32/0.2	17	20.8	300/500	<=19.5	0.01
RVV	30×1	32/0.2	18.1	22.6	300/500	<=19.5	0.01
RVV	37×1	32/0.2	19	23	300/500	<=19.5	0.01
RVV	40×1	32/0.2	20.6	25.5	300/500	<=19.5	0.01
RVV	2×0.75+1×2.0	32/0.2 38/0.26	6.3	8.5	300/500	<=19.5/10.2	0.011/0.009
RVV	5×0.75+1×2.0	32/0.2 38/0.26	7.7	9.8	300/500	<=19.5/10.2	0.011/0.009
RVV	6×0.75+1×2.0	32/0.2 38/0.26	8	11	300/500	<=19.5/10.2	0.011/0.009
RVV	7×0.75+1×2.0	32/0.2 38/0.26	8.4	11.5	300/500	<=19.5/10.2	0.011/0.009
RVV	11×0.75+1×2.0	32/0.2 38/0.26	9.5	14.2	300/500	<=19.5/10.2	0.011/0.009
RVV	12×0.75+1×2.0	32/0.2 38/0.26	9.7	14.5	300/500	<=19.5/10.2	0.011/0.009
RVV	18×0.75+1×2.0	32/0.2 38/0.26	12.2	15.5	300/500	<=19.5/10.2	0.011/0.009
RVV	19×0.75+1×2.0	32/0.2 38/0.26	12.8	16	300/500	<=19.5/10.2	0.011/0.009
RVV	24×0.75+1×2.0	32/0.2 38/0.26	14	18.8	300/500	<=19.5/10.2	0.011/0.009
RVV	29×0.75+1×2.0	32/0.2 38/0.26	14.5	19.5	300/500	<=19.5/10.2	0.011/0.009
RVV	36×0.75+1×2.0	32/0.2 38/0.26	15.8	22	300/500	<=19.5/10.2	0.011/0.009
RVV	6×1.5	48/0.2	9.9	13.3	300/500	<=13.3	0.01
RVV	8×1.5	48/0.2	10.8	14.2	300/500	<=13.3	0.01
RVV	10×1.5	48/0.2	13.5	16.7	300/500	<=13.3	0.01
RVV	6×2.5	47/0.26	12.4	15.8	300/500	<=7.98	0.009
RVV	8×2.5	47/0.26	14.5	16.5	300/500	<=7.98	0.009
RVV	10×2.5	47/0.26	16.2	20	300/500	<=7.98	0.009

2\Cable Factory

3\Advanced Measurement Equipments

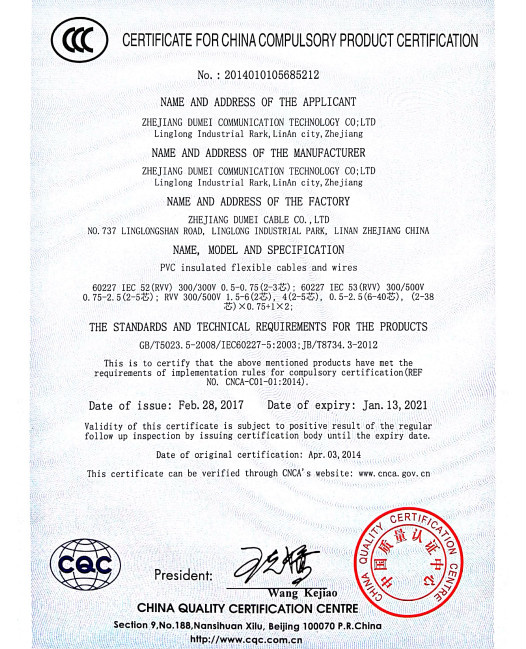

4\ Certifications

5\Contact now

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
