| Prod Model: |
TK-ADMPO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Urn Loss: |
PC >45dB APC>60dB |
| Type: |
Key up to Key up/ Key up to Key Down |
| Attenuation Value: |
-41 3 5 10 15 20 25dB |
| Operation Wavelenghth(Nm): |
1310/1550nm |
| Lead Time: |
5 Days |
| Color: |
Red,Green... |
| Warranty: |
3 Years |
| Delivery Time: |
Within 3 Days |
| Instertion Loss: |
0.3dB |
| Cores: |
12/24 |
| Transmission Medium: |
Sm & mm |
| Structure: |
All Kinds |
| Number Of Cores: |
Sx & Dx |
| Ferrule Endface: |
PC/Upc/APC |
| Connector Type: |
All Kinds |
| Brand: |
Takfly |
Product Description

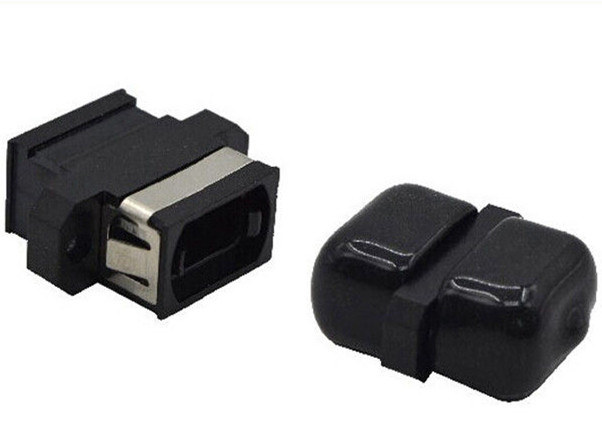

Factory Fiber optic MPO Adapter 12/24 cores, Black
Applications of MTRJ/MPO Fiber optic Patch Cords
Wiring of local area network between different enterprise buildings
Connection of optical links in optical active devices
Wiring in communication base station and distribution case
Production and testing of optical devices
Intensive building wiring system.
Fiber optic communication system, CATV and telecommunication network
LANs and WANs
FTTx systems
Specifications of MTRJ/MPO Fiber optic Patch Cords
Parameter |
Specifications |
Matched Connector Type |
MTRJ,MPO,MTP |
Fiber Type |
Single Mode |
Multimode |
Operating Bandwidth Range |
1250~1650nm |
850nm,1300nm |
Testing Wavelength |
1310,1550nm |
850nm,1300nm |
Ferrule End Face |
MPO:APC; MTRJ:PC |
PC |
Insertion Loss |
MTRJ:typical≤0.4dB,Max≤0.5dB
MPO:typical≤0.5dB,Max≤0.7dB |
MTRJ:typical≤0.25dB,Max≤0.3dB
MPO:typical≤0.4dB,Max≤0.5dB |
Return Loss |
APC≥50dB |
/ |
Applicable Cable Type |
MTRJ: duplex 2.0mm or single cable duplex 3.0mm
MPO: bunchy or ribbon type cable |
Repeatability |
≤0.10dB |
Exchangeability |
≤0.20dB |
Durability |
500 Mating, Typical≤0.20dB |
Tensile Force |
≥120N(except 0.9mm cable) or Customized |
Operating Temperature |
-20ºC to +70ºC |
Storage Temperature |
-40ºC to +85ºC |
4. Before Sale Service:
We provide professional offer. Provide detailed products test report and related specifications.
We provide professional technology support to meet the requirements of customers.
Within 12 hours of the corresponding customer inquiry, our commissioners will promptly get in touch with the customers.
5. After Sale Service:
Takfly Communications Co., Ltd. Is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides. We could not be held liable for damages to personal property due to misuse or improper care and maintenance of items. There is no fault rate for the items we delivered, if there is fiber optic equipment that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you. We are equipped with the good after service department and never escape our responsibility.
6. Why contact Takfly Communications Co., Ltd for fiber optic MPO adapter?
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry.
1. Fast delivery
2. Competitive price
3. Professional product and technical support
4. Prompt answer for any question or inquiry
5. Reliable quality, OEM service available
6. Longtime warranty
7. Value-added service: Except good products, we can provide good services on logistic and other help you may need.
7. FAQ
Q1. The MOQ Order?
A1: Fiber optical adaptor MOQ is 1000pcs.
Q2. What about the packing?
A2: The package will be packed according to standard export requirements.
Label printing: Customer logo are available
Inner packing: 25pcs or 50pcs in a plastic box
Outer packing: The carton will be packed with sack.
Q3. Payment term?
A3: T/T 30% deposit, 70% against the copy of BL. For our familiar customer, we can support good credit payments date.
Q4. Is there cheap shipping cost to import to our country?
A4: For small order, express will be best. And for bulk order, sea ship way is best but take much time.
For urgent orders, We suggest via air or airport plus our ship partner send to your door.
