GYFTY fiber optic cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Color: |
Black |
| Central Strangthen Material: |
FRP |
| Cable Type: |
GYFTY |
| Fiber Type: |
G652D |
| Recommended Installation Methods: |
Aerial |
| Loose Tube: |
PBT with jelly |
| Stranding Type: |
SZ |
| Water-blocking System: |
Filling compound |
| Application: |
Glass Fiber |
| Certification: |
Reach |
| Type: |
Single More or Multimode |
| Connection Structure: |
Fiber Optic Cable |
| Brand: |
OEM or Tw-Scie |
| Sheath Material: |
Lszh,HDPE,MDPE |
Product Description
Factory Price 12/24/36/72/144 Core Optic Fiber Cable GYFTY

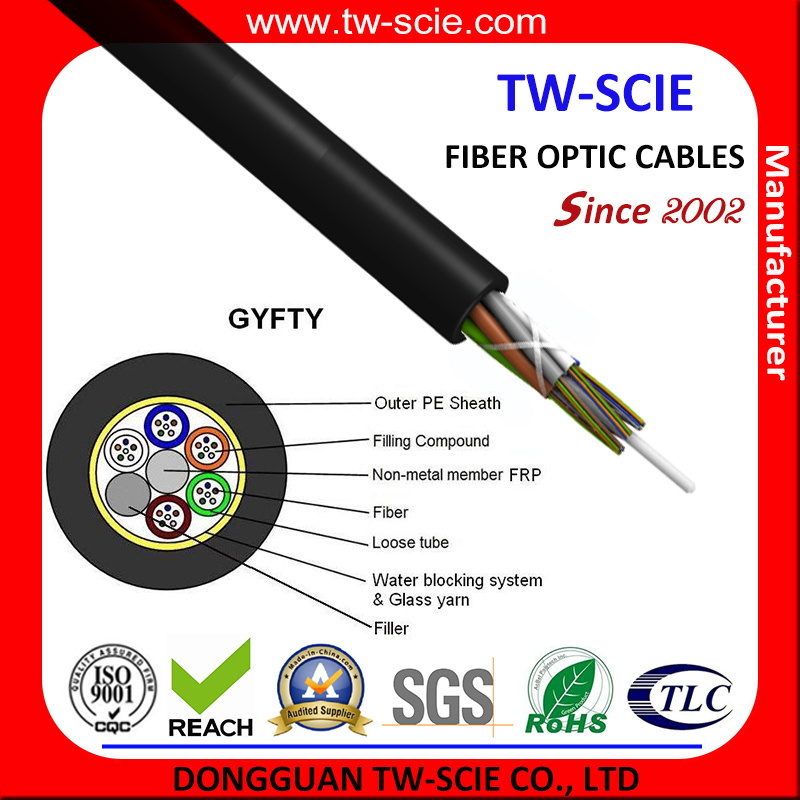

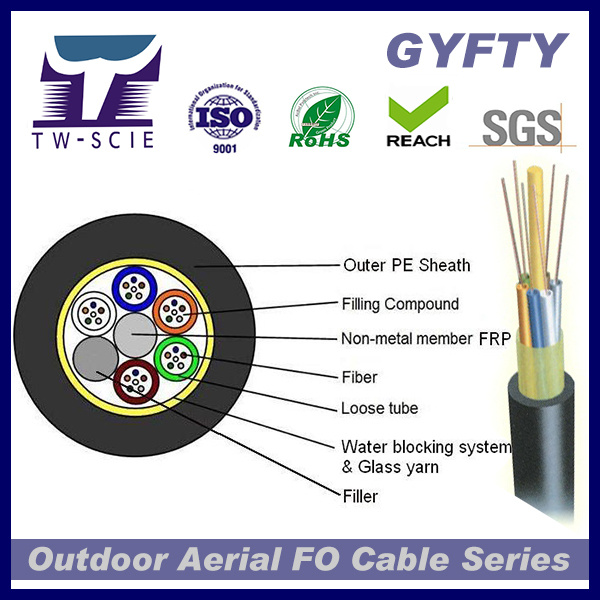

GYFTY Outdoor Sm 9/125 unarmored Fiber Cable
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.General Specifications| Cable Type | GYFTY |
| Fiber Type | G652D |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40ºC to 70ºC |
Fiber Specifications| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber |
| Optical Characteristics | | | |
| Mode field diameter (MFD) | 1310nm
1550nm | 9.2±0.4
10.4±0.8 | µm
µm |
| Cut-off wavelength (λcc) | | ≤1260 | nm |
| Attenuation coefficient | 1310nm
1383nm
1550nm | <0.35
<0.35
<0.22 | dB/km
dB/km
dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | | ≤0.05 | dB |
| Dispersion coefficient | 1288~1339nm
1271~1360nm
1550nm | ≤3.5
≤5.3
≤18 | Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km) |
| Zero dispersion wavelength | | 1300~1324 | nm |
| Max zero dispersion slope | | ≤0.093 | Ps/(nm2.km) |
| Group index of refraction (typical value) | 1310nm
1550nm | 1.466
1.467 | |
| Geometric characteristic | | | |
| Cladding diameter | | 125.0±1.0 | µm |
| Core/cladding concentricity error | | ≤0.8 | µm |
| Cladding non-circularity | | ≤1.0 | % |
| Coating diameter | | 245.0±10 | µm |
| Cladding/coating concentricity error | | ≤12.0 | µm |
| Coating non-circularity | | ≤8 | % |
| Diameter of colored coating | | 250.0±15 | µm |
| Mechanical characteristic | | | |
| Curling (radius) | | ≥4 | m |
| Proof stress | | >0.69 | Gpa |
| Coating strip force | Average value
Peak value | 1.0-5.0
1.3-8.9 | N
N |
| Dynamic stress corrosion susceptibility parameter (nd value) | | ≥20 | |
Standard Color Identification of Fiber| No. | 1 | 2 | 3 | 4 | 5 | 6 |

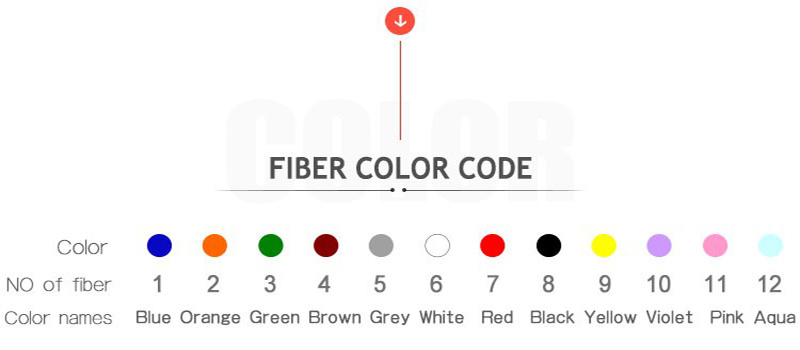

| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Design| Item | Description |
| Model No | GYFTY |
| 1. Fiber count | 96 | 72 | 48 | 24 | 12 |
| 2. Cable Diameter(MM) | 11.2±0.2 | 9.6 | 9.0 | 7.8 |
| 3. Cable Weight(KG) | 97 | 81 | 65 | 50 |
| 4. Central Strength member | |
| -Material | FRP |
| -Diameter | 2.0mm | 1.4mm |
| -PE sheath | Yes | No |
| 5. Loose Tube | |
| -Material | PBT |
| -Outer diameter | 2.0 mm | 1.4mm |
| -Thickness | 0.3mm |
| -Type of filling compound | Jelly |
| -No. of loose tube | 8 | 6 | 4 | 2 | 3 |
| 6. Filler | |
| -Material | PP |
| -Outer diameter | 1.6mm |
| -No. of fillers | 0 | 0 | 1 | 3 | 2 |
| 7. Tube Assembly | |
| -Tube Layout | 1+8 | 1+6 | 1+5 |
| -Stranding type | SZ |
| 8. Water-blocking system | |
| -Material | Filling compound |
| 9. Core wrap | |
| -Material | polyester tape |
| 10. Outer Sheath | |
| -Material | PE |
| -Thickness | 1.8mm±0.2mm |
| 12. Sheath marking | |
| -Type of marking | Laser printing |
Cable CoreThe loose tubes are stranded around the central strength member utilizing SZ. SZ stranding wraps the tubes in one direction for several turns, then in the other direction. Central Strength MemberThe central strength member is made of FRP. It provides both tensile and anti-buckling strength to the cable. Loose TubeOptical fibers are housed in jelly filled tube. The tube is manufactured with industry standard PBT. It is colored for easy identification according to the scheme shown above. Water Blocking MaterialFilling compound, the water blocking material between the loose tube and the sheath protect cable from water intrusion. Outer JacketA black Medium density polyethylene jacket is extruded over the cable core and corrugated steel tape armor as the sheath. Cable Sheath Marking Each cable have the following information clearly marked on the outer jacket of cables: a. Name of manufacturer. b. Year of manufacturer c. Type of cable and fiber d. Length mark (printing on each meter normally) e. Or as customer's requirements.Transportation:· All available shipping ways could be applied, by courier, air or sea.
