| Prod Model: |
JK Welding Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
VDE0282, IEC245-6, Isd473, BS638-4 |
| Cross Section(mm2): |
10/16/25/35/50/70/95/120/150/185/240/300/400 |
| Rated Voltage: |
250/440V ; 300/500V ; 450/750V |
| Advantage: |
Flame Resistant/Low Smoke/Halogen Free |
| Description: |
Welding Cable, Welding Machine Cable |
| Color: |
Red/White/Blue/Black/Green/Yellow(Optional) |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
Rubber |
| Certification: |
VDE |
| Application: |
Welding Machine |
| Sheath Material: |
Rubber |
| Range Of Application: |
Power Station/Welding Machine |
| Brand: |
Jiukai/OEM |
Product Description

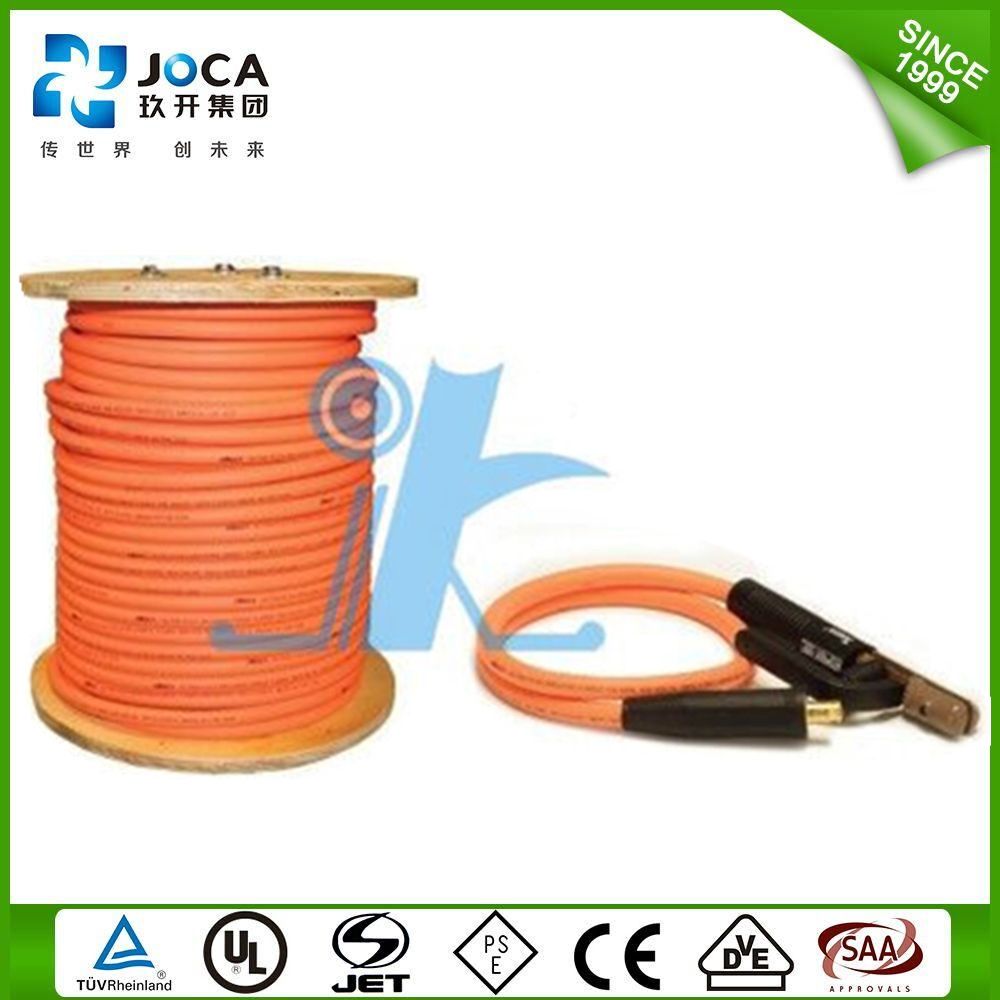

Item: factory price high quality 16mm2 Rubber Insulated Copper Welding Cable --- Code:JK Welding Cable Product Description & Parameters| Product Name | Welding Cable |
| Product standard | AS/NZS 3191 Generally to AS/NZS 5000.1 |
| Core | Single (optional) |
| Working life | <25years |
| Type of conductor | class 5 copper,tinned copper |
| Material of conductor | Copper/Aluminum |
| Material of insulation | PVC/Rubber |
| Color of core insulation | Red/White/Blue/Black/Green/Yellow(Optional) |
| Material of Jacket | PVC/Rubber/As your requirement |
| Voltage | 250/440V ; 300/500V ; 450/750V |
| Advantage | Flame resistant/Low smoke/Halogen free |
| Section | 10mm2~400mm2 |
| Property | Heat-resistant |
| Cross Section | Resistance | Thicknees of Sheath | Min.OD | Max. OD | Current |
| mm2 | Ω/km | mm | mm | mm | amp |
| 10 | 1.9100 | 2.00 | 7.80 | 10.00 | 110 |
| 16 | 1.2100 | 2.00 | 9.00 | 11.50 | 138 |
| 25 | 0.7800 | 2.00 | 10.00 | 13.00 | 187 |
| 35 | 0.5540 | 2.00 | 11.50 | 14.50 | 233 |
| 50 | 0.3860 | 2.20 | 13.00 | 17.00 | 295 |
| 70 | 0.2720 | 2.40 | 15.00 | 19.00 | 372 |
| 95 | 0.2060 | 2.60 | 17.50 | 21.50 | 449 |
| 120 | 0.1610 | 2.80 | 19.50 | 24.00 | 523 |
| 150 | 0.1290 | 3.00 | 21.50 | 26.00 | 608 |
| 185 | 0.1060 | 3.20 | 23.00 | 29.00 | 690 |
| 240 | 0.0801 | 3.40 | 27.00 | 32.00 | 744 |
| 300 | 0.0641 | 3.60 | 30.00 | 35.00 | 840 |
| 400 | 0.0486 | 3.80 | 33.00 | 39.00 | 970 |
| Application: |
| Leading wire for welding machine. |
Packaging & Shipping
| HS CODE | 8544492100 |
| Packaging Details | 1. Hollow/Plastic/Wooden Drum: 100M/Drum,500M/Drum,1000M/Drum. |
| 2. According to customer requirement. |
| Delivery Detai | 1: 5-10days if the goods are in stock |
| 2: 15-20 days if the goods are not in |
Certification
Related productItem:Rubber Insulated Welding Cable For Welding Machine.
Cross Section(mm2):10/16/25/35/50/70/95/120/150/185/240/300/400.
Color:Red/White/Blue/Black/Green/Yellow(Optional). Why Choose US1.Jiukai sends all the items with Outgoing Quality Inspection Report;
2.The copy of TUV certification will be sent along with the products;
3.We guarantee100% good quality when the products are sent out of factory;
4.Jiukai is ship to world wide;
5.Most orders ship within 7 days on payment received;
6.We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days;
7.Once we shipped the products,our after-sale service will send you the tracking number;
8.If your item is not as described or faulty when you receive it,we will send replace it for you with no additional charge;
9.If the item is found non-defective,the item will be sent back to the buyer at buyer's expense. Company Information
FAQQ:How long is the product's service life?
A: Very long service life more zhan 25 years at 90ºC
Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
2.High temperature resistant,the materials do not metl or flow
3.Good cold flexibility
Q:Scope of application?
A:Compatible to all popular connectors
Q:What is the size of your company?
A:JOCA holding group is an enterprise group, integrated research, manufacture & trade.
The group has he group total registered capital RMB 250 million & occupied area 1800 thousand sqm including building area 1000 thousand sqm.
The group has more than 800 sets nowadays domestic & foreign advanced cable equipment, yearly production capacity RMB 1.6 billion,600 employees and nearly domestic & overseas representative offices or branch companies.
Subsidiary company Shanghai Jiukai Wire & Cable Co., Ltd, Jiukai Communication Technology (Shangshai) Co., Ltd & Wuxi City Qunxing Wire & Cable Co., Ltd are fully invested Wholly owned companies by JOCA group in cable, telecommunication & integrated general wiring industry.
Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.
Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE certificate and so on,
And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 " and so on.
Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico
Contact US| Name | Cathy |
| Tel/Mob | 0086-21-57186991
0086-15216837384 |
| Your enquiry will be highly appreciated! |
factory price high quality 16mm2 Rubber Insulated Copper Welding Cable
...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler
Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.
Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
