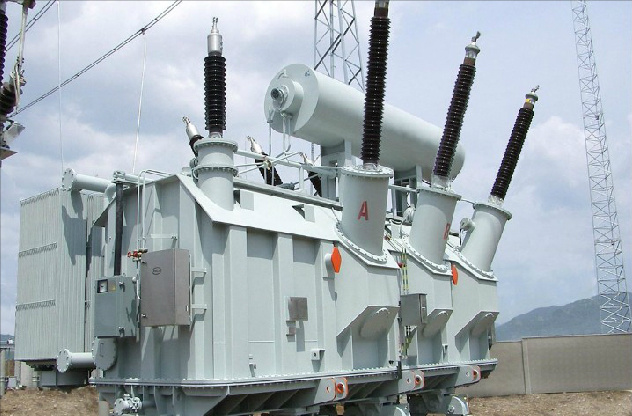

Factory Supply 220kv Power Transformer

Name: Factory Supply 220kv Power Transformer
Brand: all-electronics-online.com
SKU: 707857815
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	US $ 1500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	sc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Transformer
Phase:	Three
Application:	Audio
Coil:	Core-type Transformer
Winding Type:	Two-winding Transformer
Cooling Method:	Oil-immersed Type Transformer
Brand:	Refine
Certification:	SGS

Product Description

- Rated Voltage: 220 KV

- Capacity: 31500kVA~360000 kVA

- Windings: Copper / Aluminum / as required

- Vector Group: YNd11

- Standard: IEC60076

- Service Conditions:
Outdoor use,
Altitude: 0~2200m
Temperature range: -1 ~ +40 oC
Humidity: Up to 95%
Pollution Severity Level: Heavy

- This series transformers have various types, the following technical parameter is for your reference and different voltage value or tapping position can be adopted according to the users' requirement:

Rated Capacity (KVA)	Voltage combination (KV/KV)		Vector Group	Losses (KW)		No-load current (%)	UK (%)
Rated Capacity (KVA)	HV	LV	Vector Group	No-load	load	No-load current (%)	UK (%)
31500	220 ± 2 x 2.5% 242 ± 2x 2.5%	6.3 6.6 10.5 11	YNd11	26.20	128.20	0.35	12-14
40000				30.60	149.20	0.35
50000				36.60	179.50	0.32
63000				43.50	209.00	0.32
75000		10.5 11 13.8		50.20	237.50	0.30
90000				57.60	273.60	0.28
120000				70.50	327.70	0.28
150000		11 13.8 15.75 18 20		84.00	384.70	0.25
160000				87.60	403.70	0.25
180000				96.00	436.00	0.23
240000				120.00	538.60	0.21
300000		15.75 18 20		141.60	641.20	0.19
360000		15.75 18 20		162.60	735.30	0.19

Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
