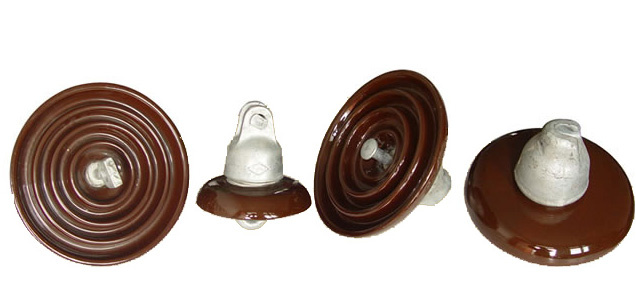

Factory Supply Disc Suspension Insulator

Name: Factory Supply Disc Suspension Insulator
Brand: all-electronics-online.com
SKU: 707704855
Availability: InStock
Rating: 4.3 (34 reviews)

Price:	US $ 18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mechnical Strength: 70-400kn:	Power Frequency: 42-50kv
Structure:	Suspension Insulator
Material:	Porcelain
Type:	A Type Insulator
Application:	High-temperature
Brand:	Refine
Color:	Brown

Product Description

Model No.: U40B, U70B, U100B...
Material: Porcelain
Rated Voltage: As required
Standard: IEC, ANSI, BS, DIN

Our porcelain insulators have been exported to more than 20 countries, they are well recognized by our customers because of the high quality and good price.

IEC Disc insulators have more model types, for your reference under below is the main technical parameter of each model type.

Class Type	Fig No.	Unit Spacing	Disc Diameter	Leakage Distance	Rated E& M Failing Load	Rountime Tension Load	Impact Failing Load	Wet Poer Frequency Withstand Voltage	Lighting Impulse Withstand Voltage	Radio Influence Voltage		Power-freq Puncture Voltage
		Unit Spacing	Disc Diameter	Leakage Distance	Rated E& M Failing Load	Rountime Tension Load	Impact Failing Load	Wet Poer Frequency Withstand Voltage	Lighting Impulse Withstand Voltage	Test Voltage to Ground	Max Riv at 1 MHz	Power-freq Puncture Voltage
		mm	mm	mm	kN	kN	mm	kV	kV	kV	V	kV
U40B	1	110	170	190	40	20	5	30	75	7.5	50	90
U40BP	1	110	210	295	40	20	5	35	90	10	50	90
U70BS	3	127	255	295	70	35	6	40	100	10	50	110
U70BL	3	146	255	295	70	35	6	40	100	10	50	110
U70C	2	146	255	295	70	35	6	40	100	10	50	110
U70BLP	3	146	280	440	70	35	6	42	110	10	50	120
U70CP	2	146	280	440	70	35	6	42	110	10	50	120
U100BS	3	127	255	295	100	50	7	40	100	10	50	110
U100BL	3	146	255	295	100	50	7	40	100	10	50	110
U100C	2	146	255	295	100	50	7	40	100	10	50	110
U100BLP	3	146	255	440	100	50	7	42	110	10	50	120
U100CP	2	146	255	440	100	50	7	42	110	10	50	120
U120B	3	146	280	295	120	60	7	40	100	10	50	110
U120C	2	146	280	295	120	60	7	40	100	10	50	110
U120BP	3	146	280	440	120	60	7	42	110	10	50	120
U120CP	2	146	280	440	120	60	7	42	110	10	50	120
U160BS	4	146	280	315	160	80	10	40	100	10	50	110
U160BSP	4	146	280	440	160	80	10	45	125	10	50	110
U160BL	4	146	280	340	160	80	10	42	105	10	50	110
U160BLP	4	146	330	525	160	80	10	45	130	10	50	110
U210B	4	170	330	370	210	105	10	42	110	10	50	120
U210BP	4	170	330	525	210	105	10	45	130	10	50	120
