| Prod Model: |
PIR500BP |
| Model: |
PIR500bp |
| Encapsulation: |
to-5 |
| Element Type: |
Dual |
| Window Material: |
Si |
| Window Size: |
4*3mm |
| Pass Band: |
5-14μm |
| Operating Temperature: |
-30 Degree - +70degree |
| Sensitivity: |
3300V/W |
| Operating Voltage: |
2.2-15V |
| Material: |
Si+ Matel |
Product Description
Factory Supply Passive Infrared Motion Sensor(PIR500BP)Brief Introduction:
- Part No.: PIR500BP
- Usage: Universal big window probe, can be used for automatic lighting,automatic door, toy,into alarming, etc
- Sensitive type: double type series
- Size: TO-5 packaging
Specifaction| Model | PIR500BP |
| Encapsulation | TO-5 |
| Element Size/Type | 2.0mm ×1.1mm ×Gap 0.9mm Dual |
| Window Material | Si |
| Window Thickness | 0.5mm |
| Window Size | 4×3mm |
| Pass Band | 5-14μm |
| Transmittance | >75% |
| Signal [Vp-p] | >2.2V |
1. Blackbody temperature 420K( 147˚C)
2. Modulation frequency 1HZ
3. Magnification 72.5 dB |
| Sensitivity | 3300V/W |
| Detectivity | 1.5×108cmHz1/2/W |
| Noise(Vp-p) | <200mV |
| (mVp-p) (25ºC) |
| Balance | <20% |
| Operating Voltage | 2.2-15V |
| Operating Current | 8.5-24μA |
| (VD=10V,Rs=47kΩ,25ºC) |
| Source Voltage | 0.4-1.1V |
| (VD=10V,Rs=47kΩ,25ºC) |
| Operating Temperature | -30ºC- +70ºC |
| Storage Temperature | -35ºC- +80ºC |
| Field of View | 140°×130° |
Working Principle Pyroelectric infrared sensor would change charge when radiant energy changes. The effect can be used in detecting the change of infrared radiant.The sensors apply to human motion detector,passive infrared burglar alarm and automatic light switch. Based on the same theory, the pyroelectric infrared sensor applies to gas detection with infrared absorption.
Feature1. Low noise, high detection
2. Excellent common mode balance- dual elements
3. To-39, To-5 encapsulation
4. Apply to both narrow and broad band filters
5. Signal channel or double channels pattern
6. Dual pattern apply to burglar alarm
Typical Application 1. Passive infrared burglar alarm: strong anti-interference for strong with light and electromagnetic radiation
2. Human motion detector
3. Human motion detector of ceiling
4. Gas analysis
5. Non-contact infrared measurement

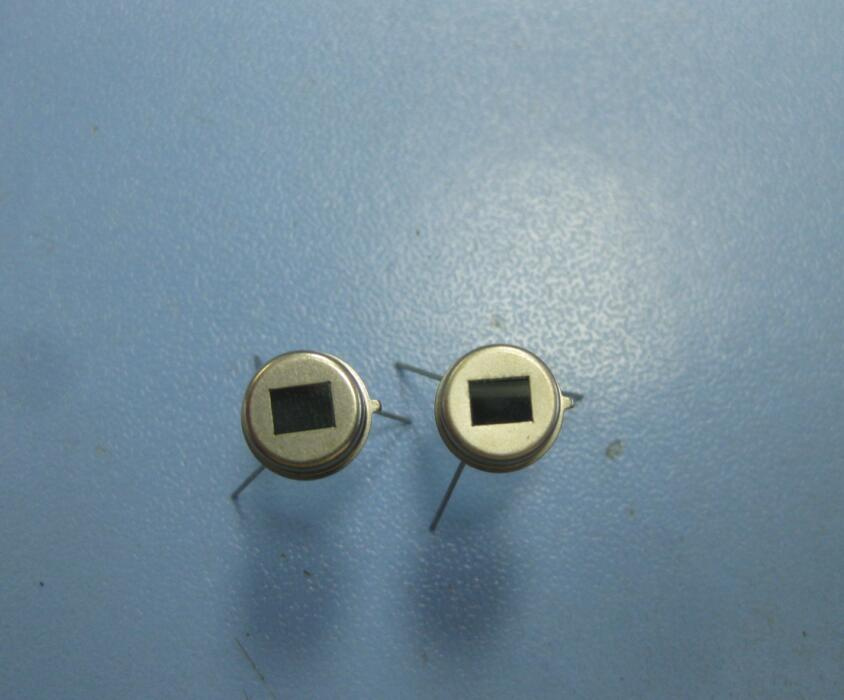

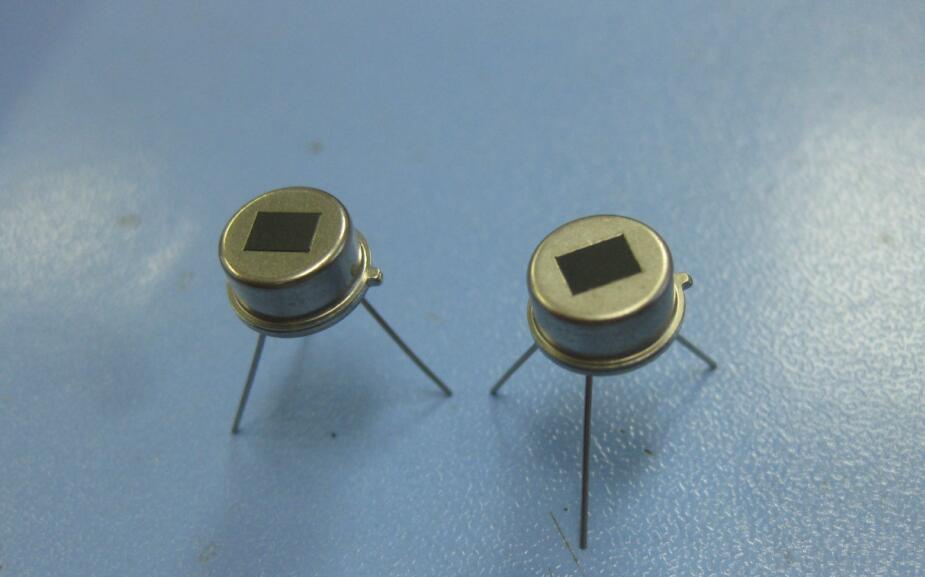

Picture Show:

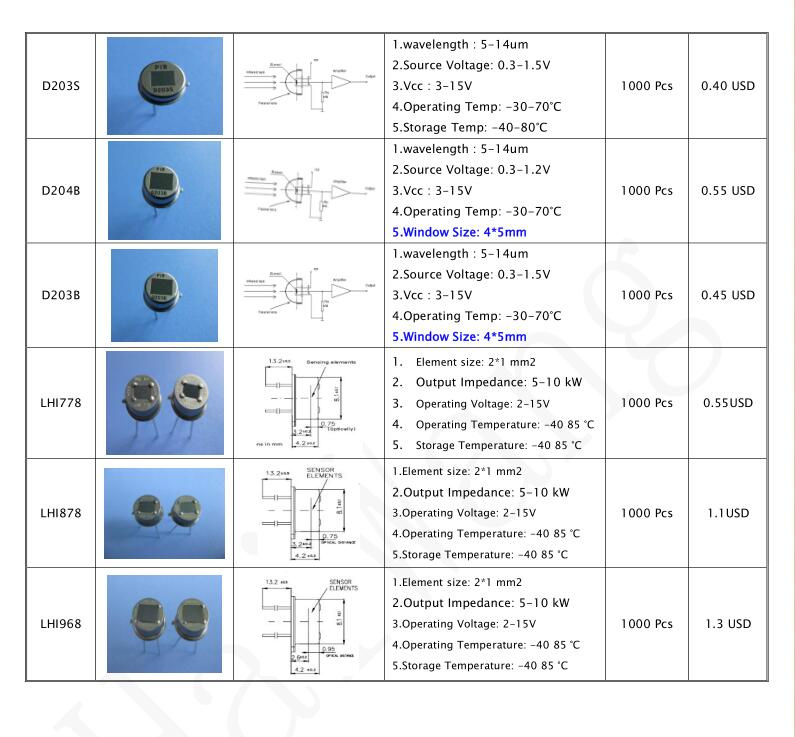

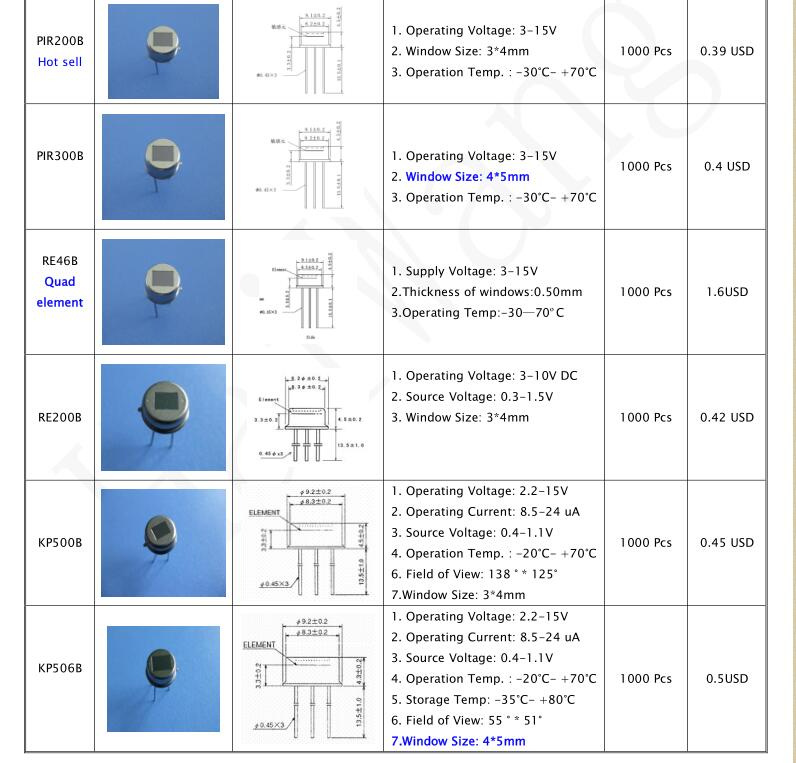

PIR Sensor Series for your choice:
