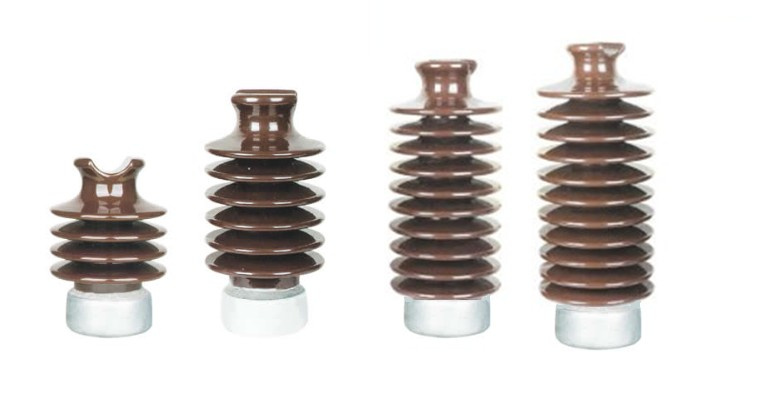

Factory Supply Pin Insulator (ANSI Standard)

Name: Factory Supply Pin Insulator (ANSI Standard)
Brand: all-electronics-online.com
SKU: 707778785
Availability: InStock
Rating: 4.7 (105 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ANSI:	Creepage Distance: 240-850mm
Withstand Voltage: 150-210kv:	Pin Insulator
Structure:	Pin Insulator
Material:	Porcelain
Type:	A Type Insulator
Application:	High-voltage
Brand:	Refine
Size Of Bearing Capacity:	11kn
Color:	Brown

Product Description

Material: Porcelain
Rated Voltage: As required
Standard: ANSI

Our porcelain insulators have been exported to more than 20 countries; They are well recognized by our customers because of the high quality and good price.

ANSI Porcelain Pin type insulators have more model types, for your reference under below is the main technical parameter of each model type.

Class ANSI		57-1S 57-1L	57-2S 57-2L	57-3S 57-3L	57-4S 57-4L	57-5S 57-5L
Fig No.		3	4	5	5	2
Main Dimension of the pin mm		M16	M20 / M16	M20	M20	M20
Creepage distance mm		356	559	737	1015	1145
Dry arcing distance mm		165	241	311	368	438
Cantilever Strength kN		12.5	12.5	12.5	12.5	12.5
Low Frequency flashover voltage	Dry flashover kV	80	110	125	150	175
Low Frequency flashover voltage	Wet flashover kV	60	85	100	125	150
Critical impulse flashover voltage	Positive kV	130	180	210	255	290
Critical impulse flashover voltage	Negative kV	155	205	260	340	380
Radio influence voltage data	Test Voltage to ground kV	15	22	30	44	44
	At 1000kHZ Max. RIV μ V	100	100	300	200	200

Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
