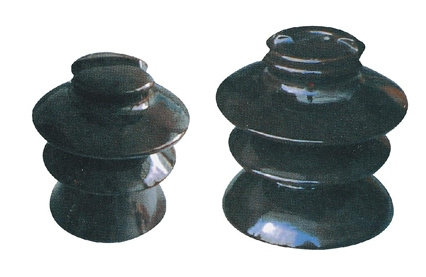

Factory Supply Pin Insulator (DIN Type)

Name: Factory Supply Pin Insulator (DIN Type)
Brand: all-electronics-online.com
SKU: 707778935
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	US $ 4.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RTL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC:	DIN
Application:	High-temperature
Material:	Porcelain
Structure:	Pin Insulator
Type:	A Type Insulator
Size Of Bearing Capacity:	12.5-13.6kn
Color:	Brown
Brand:	Refine

Product Description

Material: Porcelain
Rated Voltage: As required
Standard: DIN/IEC/ANSI

Our porcelain insulators have been exported to more than 20 countries; They are well recognized by our customers because of the high quality and good price.

ANSI Porcelain Pin type insulators have more model types, for your reference under below is the main technical parameter of each model type.

Fig No.			1	1	1	2
Type			st-10/J	st-15/J	st-20/J	P-20-D
Main Dimension (mm)	H		130	150	185	185
	h		55	60	65	52.63
	D		135	150	175	175
	d		31	31	35	27.78
	R1		10	10	10	10
	R2		12.5	12.5	12.5	12.5
Normal Voltage (kV)			10	15	20	20
Creepage Distance (mm)			240	270	340	340
Power Frequency Puncture Voltage (kV)			110	120	140	140
Electrical Failing Load (kN)			12	12	14.7	14.7
Flashover Voltage(min)	Power Frequency Voltage	Dry (kV)	70	75	90	80
	Power Frequency Voltage	Wet (kV)	42	53	65	50
	50% Critical Impulse		100	110	130	130
Weight (kg)			1.5	2.7	3.4	3.8

Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
