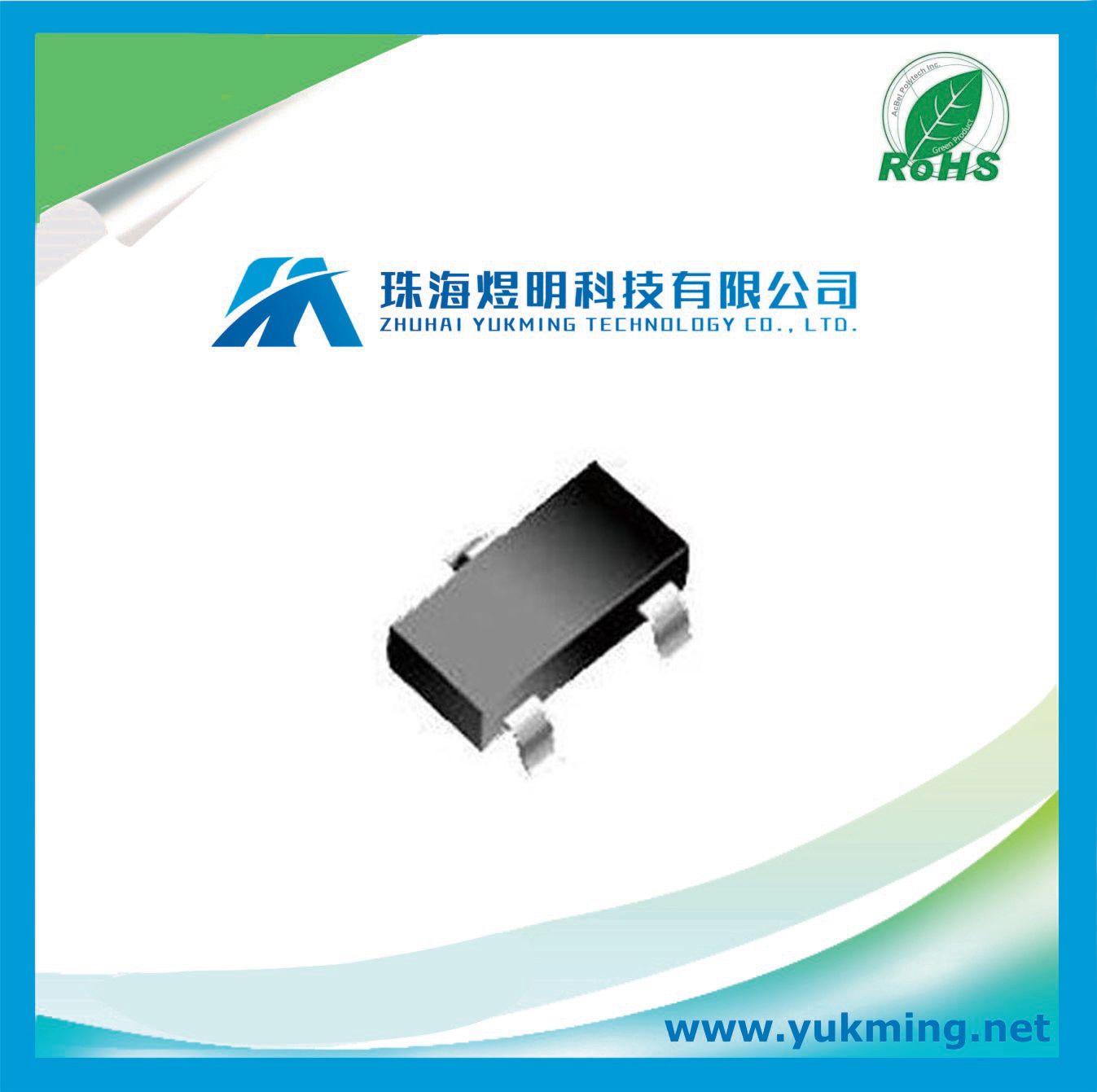

Fairchild Zener Diode of Electronic Component for PCB Assembly

Name: Fairchild Zener Diode of Electronic Component for PCB Assembly
Brand: all-electronics-online.com
SKU: 796650835
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 0.027/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZX84C5V1
Configuration:	Single
Test Current (Ma):	5
Nominal Zener Voltage (V):	5.1
Maximum Zener Impedance (Ohm):	60
Zener Voltage Tolerance:	5%
Maximum Reverse Leakage Current (Ua):	2
Maximum Power Dissipation (MW):	250
Encapsulation Structure:	Sot-23

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

PRODUCT CATEGORY
Zener

DESCRIPTION
Diode Zener Single 5.1V 5% 250mW 3-Pin SOT-23 T/R

This BZX84C5V1 zener diode from Fairchild Semiconductor is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 5 mA. Its maximum leakage current is 2 μA. Its maximum power dissipation is 350 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. This zener device has a nominal voltage of 5.1 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -55 °C to 150 °C.

Specifications
EU RoHS Compliant
Configuration Single
Test Current (mA) 5
Nominal Zener Voltage (V) 5.1
Maximum Zener Impedance (Ohm) 60
Zener Voltage Tolerance 5%
Maximum Reverse Leakage Current (uA) 2
Maximum Power Dissipation (mW) 250
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Temperature Grade Military
Mounting Surface Mount
Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing

Features
• Planar Die Construction
• 350mW Power Dissipation
• Zener Voltages from 2.4V - 39V
• Ideally Suited for Automated Assembly Processes
• Lead, Halogen and Antimony Free, RoHS Compliant "Green"
  Device (Notes 3 and 4)
• Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data
• Case: SOT-23
• Case Material: Molded Plastic. UL Flammability Classification
  Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
  (Lead Free Plating). Solderable per MIL-STD-202, Method 208

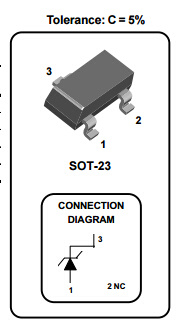

• Polarity: See Diagram
• Weight: 0.008 grams (approximate)
