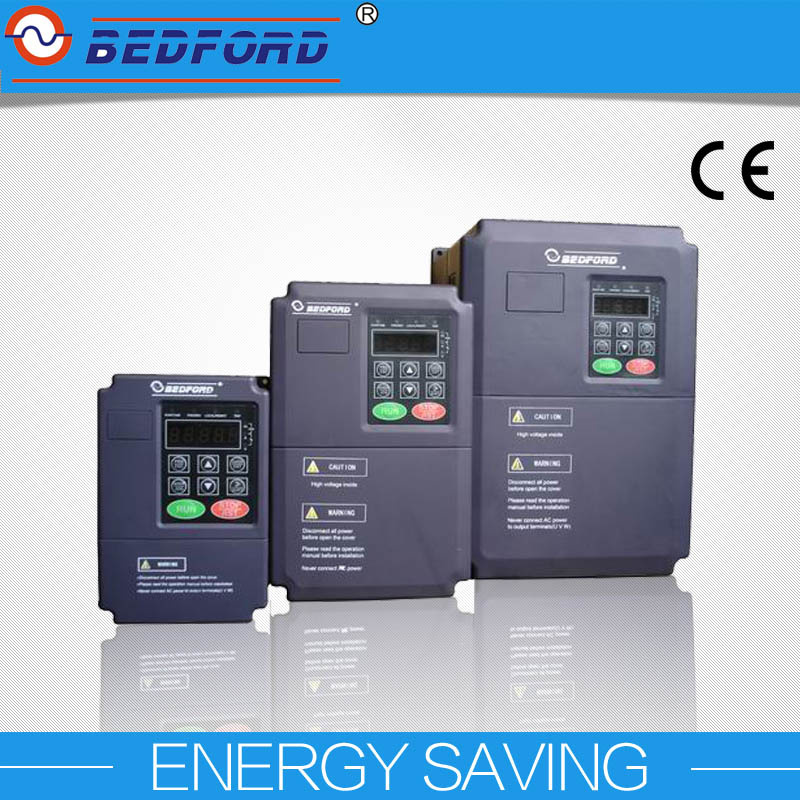

Famous Bedford Years of Strong Quality Sensorless Vector AC Drive

Prod Model:	B503 Series AC drive
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Black
Output Frequency:	0~50Hz/60Hz
G/W:	2kgs
Usage:	AC Motor Vector Inverter
Principle Of Work:	V/F Control Transducer
Main Circuit Type:	Voltage
Output Type:	Triple
Application:	General Transducer
Switch Mode:	PWM Control

Product Description

Famous BEDFORD years of AC drive

B503 Series AC drive

Product Brief
B503 series AC drive adopts DSP control system which supplies Sensorless Vector Control (SVC) and V/F control. Comparing with V/F control, the performance of DSP has greater superiority, which consists of inbuilt SVC and V/F control accuracy, it is widely applied to high speed control accuracy, rapid torque response and high performance at low frequency.


Main Control Function

Control Mode: Sensorless Vector Control (SVC), V/F Control
Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current.
Starting Torque: 150% of rated torque at 0.5Hz (SVC).
Speed Adjusting Range: 1: 100(SVC)
Speed Accuracy: ± 0.5% of maximum speed (SVC)
Carrier Frequency: 0.5kHz~15.0kHz AC drive
Reference Frequency Source: Keypad, analog input, serial communication,
Multi-step speed, PID and so on. The combination of multi-modes and
Switching between different modes can be realized. AC drive
Torque Control Function: Provide multiple torque setting source.
PID Control Function.
Multi-Step Speed Control Function: 8 steps speed can be set.
Traverse Control Function.
Non-Stop when power is instantaneously cut off.
Speed trace Function: Start the running motor smothly...5.
Key: User defined shortcut key can be realized. AC drive
AVR: Can output constant voltage automatically when input voltage is fluctuating.
Offer RS485 serial communication interface. Standard ModBus.
Over-troque Detection Function.


Applications:
B503 series AC drive (Output frequency range is 0~600Hz):
Textile machinery, plastic machinery, ceramic machinery, electric machinery, numerical control machine, foodstuff processing machinery, Light industry, Pharmacy machinery, Fan, Water pump, Air compressor, etc.

Power Range:
Single phase 220V 1HP~3HP(0.75KW~2.2KW)
Three phase 220V 1HP~75HP(0.75KW~55KW)
Three phase 380V 1HP~860HP(0.75KW~630KW)


Selection guide for AC drive



Typical Wiring Diagram for AC drive

Image of our factory






Why Always BEDFORD? ? ?

1. Professional--21 years Professional AC drive Export, 8 years manufacturer Experience, Patent products

2. Reliable--6 years Alibaba Gold Supplier

3. Hi-tech--Advanced R&D Team

4. Certifications--Applied with CE, ISO 9001, ISO14001

5. Good quality--BEDFORD Brand



Our factory produces all kinds of inverters, water pump inverters, solar inverters. We are happy to serve you from all over the world. Pls let us talk now.
