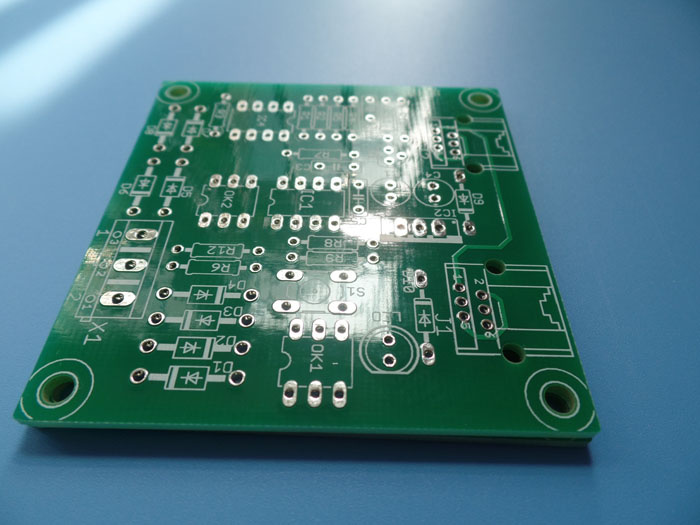

Fast Prototype PCB Service 2 Layer with HASL Lead Free
| Price: |
US $ 0.40/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC10373R3.7 |
| Solder Mask Color: |
Green |
| Board Thick: |
1.6mm |
| Copper Thick: |
1 Oz |
| Surface Finish: |
HASL Lead Free |
| Legend Color: |
White |
| Minimum Trace and Space: |
5 Mil/5 Mil |
| Minimum/Maximum Hole: |
0.5/1.6mm |
| Board Plating: |
0.0030" |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Fast PCB Prototype Service FR-4 Double Sided PCB HASL Lead Free Applied In
Preamplifier
Commodity Introduction
This is a type of FR-4 PCB for the application of Preamplifier. It's a 2 layer the board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Nanya and Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are pa
-cked separately.
Parameters & Data Sheet| PCB SIZE | 51 x 45mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17.8um(0.5oz)+PLATE |
| FR-4 1.5mm |
| copper ------- 17.8um(0.5oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5mil/5mil |
| Minimum/Maximum Holes: | 0.5/1.6mm |
| Number of Different Holes: | 4 |
| Number of Drill Holes: | 322 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | ITEQ, FR-4 Tg135, IT-140 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | HASL, Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Preamplifier, Wireless Card
Tracking Devices
Radio Frequency
DSL Router
Invertor |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
