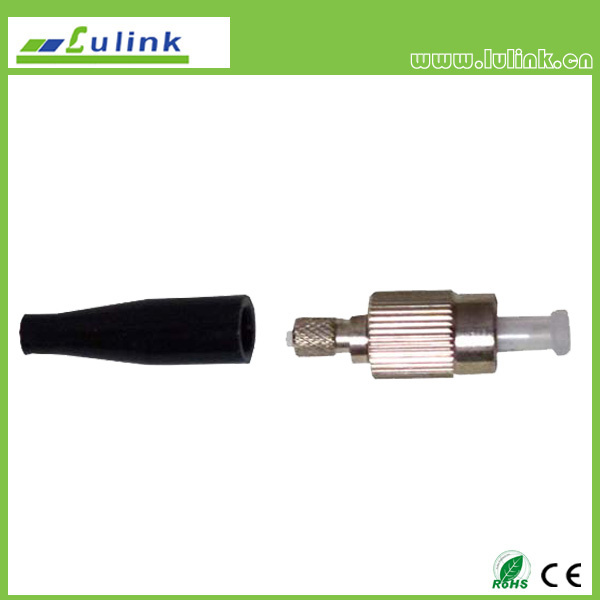

| Prod Model: |
LK01FC101 |
| Boot Type: |
Slotted Boot, Smooth Boot |
| Boot Size: |
0.9mm; 2.0mm; 3.0mm |
| Transmission Medium: |
Single-Mode |
| Structure: |
FC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description
| LK01FC101 |
| Description: |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.1dB <0.15dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability: <0.1dB typical change,500 mating | | Operating Temperature:-40 to +75ºC -40 to +75ºC |
Ordering choice:
FC SM SX PC
MM DX APC
Key Ring: Tunable; Fixed
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
Ferrule end (for APC): 8 degree angled; Not angled |
| LK01FC201 |
| Description: |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.1dB <0.15dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability: <0.1dB typical change,500 mating | | Operating Temperature:-40 to +75ºC -40 to +75ºC |
Ordering choice:
FC SM SX PC
MM DX APC
Key Ring: Tunable; Fixed
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
Ferrule end (for APC): 8 degree angled; Not angled |
| LK01FC301 |
| Description: |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key
---Nickel plated brass body
---Telcordia style boots
---Free-floating ceramic ferrule
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.1dB <0.15dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability: <0.1dB typical change,500 mating | | Operating Temperature:-40 to +75ºC -40 to +75ºC |
Ordering choice:
FC SM SX PC
MM DX APC
Key Ring: Tunable; Fixed
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
Ferrule end (for APC): 8 degree angled; Not angled |
| LK01LC101 |
| Description: |
Features:
--Low insertion loss and back reflection loss
---RJ-45 style interface
---Polarized and color coded (TIA568-A&ISO 11801)
---UL-rated plastic housing and boot
---Compact, pull-proof design
---Behind-the-Wall style short connector
Applications:
--CATV; Active device termination; Telecommunication networks; Metro; Local Area Networks; Data processing networks; Test equipment; Premise installations; Wide Area Networks
Parameter table| Single mode Multimode | | Insertion loss: <0.1dB <0.2dB | | Return loss ≥55dB | | ≥65dB(APC) | | Durability:<0.2dB typical change,500 mating | | Operating Temperature -40 to +75ºC -40 to +75ºC |
Ordering choice:
LC SM SX PC
MM DX APC
Ferrule size: 125.0μm, 125.5μm, 126.0μm, 127.0μm
Boot type: 45 degrees bent boot, 90 degrees bent boot, slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm |
| LK01LC201 |
| Description: |
Features:
--Low insertion loss and back reflection loss
---RJ-45 style interface
---Polarized and color coded (TIA568-A&ISO 11801)
---UL-rated plastic housing and boot
---Compact, pull-proof design
---Behind-the-Wall style short connector
Applications:
--CATV; Active device termination; Telecommunication networks; Metro; Local Area Networks; Data processing networks; Test equipment; Premise installations; Wide Area Networks
Parameter table| Single mode Multimode | | Insertion loss: <0.1dB <0.2dB | | Return loss ≥55dB | | ≥65dB(APC) | | Durability:<0.2dB typical change,500 mating | | Operating Temperature -40 to +75ºC -40 to +75ºC |
Ordering choice:
LC SM SX PC
MM DX APC
Ferrule size: 125.0μm, 125.5μm, 126.0μm, 127.0μm
Boot type: 45 degrees bent boot, 90 degrees bent boot, slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm |
| LK01SC101 |
| Description: |
Features
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key and corrosion resistant body
---UL-rated plastic housing
---Telcordia style boots
---Free-floating ceramic ferrule
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.1dB <0.15dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability:<0.1dB typical change,500 mating | | Operating Temperature: -40 to +75ºC -40 to +75ºC |
Ordering choice:
SC SM SX PC
MM DX APC
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Ferrule type (for APC): Stepped; Conical
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
Housing Color: Beige; Blue; Red |
| LK01SC201 |
| Description: |
Features
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key and corrosion resistant body
---UL-rated plastic housing
---Telcordia style boots
---Free-floating ceramic ferrule
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.1dB <0.15dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability:<0.1dB typical change,500 mating | | Operating Temperature: -40 to +75ºC -40 to +75ºC |
Ordering choice:
SC SM SX PC
MM DX APC
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Ferrule type (for APC): Stepped; Conical
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
Housing Color: Beige; Blue; Red |
| LK01SC301 |
| Description: |
Features
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key and corrosion resistant body
---UL-rated plastic housing
---Telcordia style boots
---Free-floating ceramic ferrule
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.1dB <0.15dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability:<0.1dB typical change,500 mating | | Operating Temperature: -40 to +75ºC -40 to +75ºC |
Ordering choice:
SC SM SX PC
MM DX APC
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Ferrule type (for APC): Stepped; Conical
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
Housing Color: Beige; Blue; Red |
| LK01SC401 |
| Description: |
Features
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key and corrosion resistant body
---UL-rated plastic housing
---Telcordia style boots
---Free-floating ceramic ferrule
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.1dB <0.15dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability:<0.1dB typical change,500 mating | | Operating Temperature: -40 to +75ºC -40 to +75ºC |
Ordering choice:
SC SM SX PC
MM DX APC
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Ferrule type (for APC): Stepped; Conical
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
Housing Color: Beige; Blue; Red |
| LK01ST101 |
| Description: |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---High precision alignment
---Nickel plated brass body
---Free-floating ceramic ferrule
---Bayonet style housing for easy termination
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.2dB <0.3dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability: <0.1dB typical change,500 mating | | Operating Temperature: -40 to +75ºC -40 to +75ºC |
Ordering choice:
ST SM SX PC
MM DX APC
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Housing material: metal; plastic
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow |
| LK01ST201 |
| Description: |
Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---High precision alignment
---Nickel plated brass body
---Free-floating ceramic ferrule
---Bayonet style housing for easy termination
Applications:
--Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations;
Parameter table| Singlemode Multimode | | Insertion loss: <0.2dB <0.3dB | | Return loss: ≥55dB | | ≥65dB(APC) | | Durability: <0.1dB typical change,500 mating | | Operating Temperature: -40 to +75ºC -40 to +75ºC |
Ordering choice:
ST SM SX PC
MM DX APC
Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
Housing material: metal; plastic
Boot type: slotted boot, smooth boot.
Boot size: 0.9mm; 2.0mm; 3.0mm
Boot color: Beige; Black; Blue; Grey; Red; White; Yellow |
