FC Fiber Optic Connector for Patch Cord

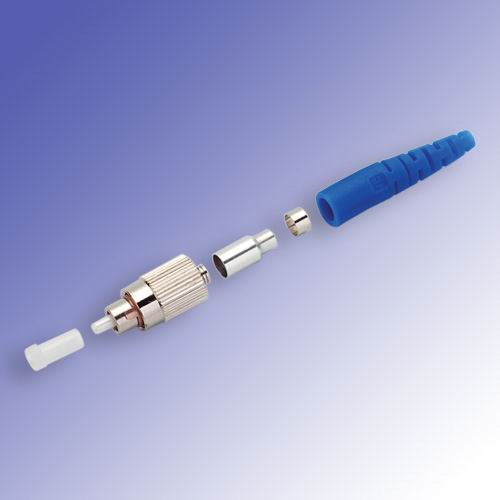

Name: FC Fiber Optic Connector for Patch Cord
Brand: all-electronics-online.com
SKU: 676100845
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	OEM
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	FC
Certification:	CE

Product Description

Application fields
LAN Fiber Optic

Fiber CATV Network

Fiber CATV Network
Properties
Low insert Loss, Hig return loss

Good repeatabiity and interchangeability
Cable Diameter
Ceramic ferrule, PC, UPC, APC grinding
TW-SCIE brand, OEM/OEM fiber optic patch cable manufacturer, factory in Shenzhen, China

Specifications
	Single mode	Multimode
Insert Loss	≤0.20dB	≤0.25dB
Return Loss	≥50 dB (PC)
	≥55 dB (UPC)
	≥65 dB (APC)
Durability	<0.20 dB typical change, 1000 mating
Operating Temperature	From -40 to + 80°C	From -40 to + 80°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: 1≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: 1≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: 1≤3μm

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
