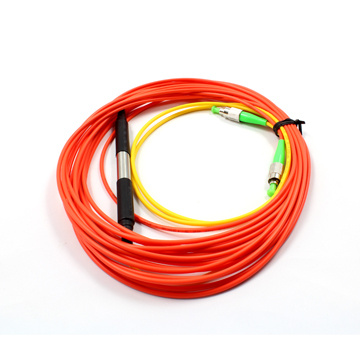

FC Mode Conditioning Fiber Optic Patch-Cord
Price: |
US $ 6.5-7.5/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
Mode conditioning fiber optic jumper |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Cable Diameter Szie: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
Cable Jacket Color: |
Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink |
Cable Jacket Material: |
Lszh,PVC, Ofnr, Ofnp, PE, Rised |
Connector Housing Color: |
Blue,Orange,Yellow,Aqua, Magenta,Black, Gray,Pink |
Cable Length: |
1m, 2m, or Customization |
Label: |
Sticker, Paper |
Boot Type: |
LC Uniboot, Slotted Boot, Smooth Boot, Rubber Boo |
Application: |
Communication |
Type: |
Single-mode Fiber |
Certification: |
ISO9001 |
Connection Structure: |
Sc/FC/LC/St/Mu |
Core: |
Single Core, Double Core,Multicore |
Product Description
With 15 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our website www.koc.com.cn.
In case of need, please do not hesitate in contacting us.

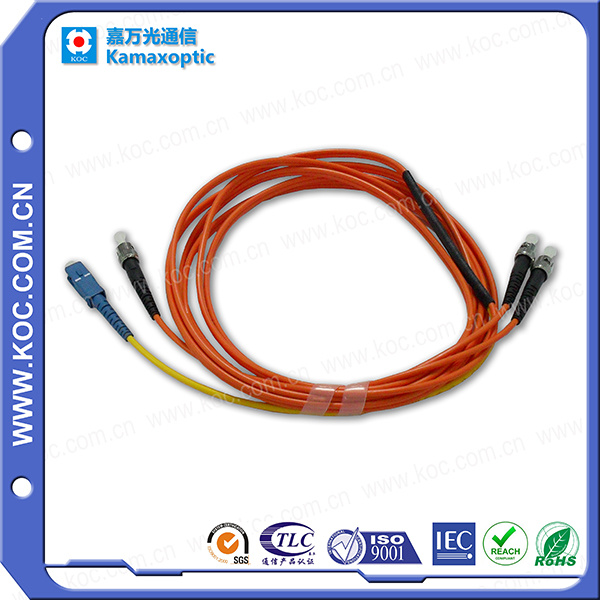

Mode Conditioning Patchcord

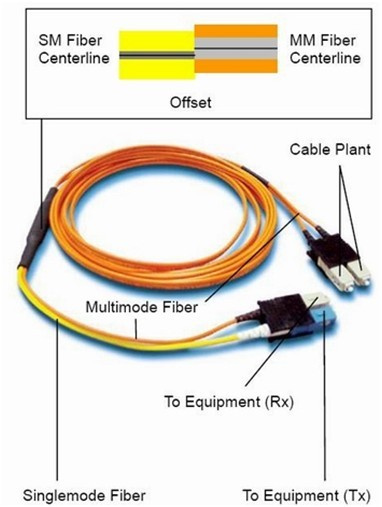

BRIEF INTRODUCTIONMode Conditioning Patchcord (MCP), also known as Gigabit Launch Patchcord, is used inlongwave/long haul (LX/LH) Gigabit Interface Converter (GBICs) with multi mode fiber. Without using MCP, multiple signals are generated when a singlemode laser launch into the center of a multi mode fiber. This would result in pulse broadening or Differential Model Delay (DMD) effects which degrade the modal bandwidth of fiber cable and limit the link span (the distance between the transmitter and receiver) for operating Gigabit application. MCP provides an offset singlemode to multi mode fiber connector point that eliminates the effect of DMD by launching the singlemode laser into multi mode

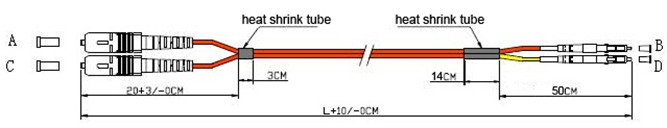

ITEM | Parameter |
Insertion Loss | Optical source direction | Test wavelength | Insertion Loss |
A→B | 850nm,1300nm | Max≤0.30dB |
B→A | 850nm,1300nm | Max≤0.30dB |
C→D | 850nm,1300nm | ≤15.0dB(50/125um); ≤18.0dB(62.5/125um) |
D→C | 850nm,1300nm | Max≤0.30dB |
| C→D | 1310nm,1550nm | ≤2.10dB(50/125um); ≤2.60dB(62.5/125um) |
Return Loss | APC≥60.0Db;UPC≥50.0dB | ≥35.0dB |
Durability | ≤0.20dB typical change,1000 mating |
Tensile Strength | ≥120N(without 0.9mm patchcord) or customized |
Operating Temperature | -20ºC to +70ºC |
Storage Temperature | -40ºC to +85ºC |
ORDERING OPTIONSConnector Color | Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
Beige | | Beige | 9/125μm (SM) | Simplex | PC | Customized |
Blue | 2.0mm | Black | 50/125μm(MM) | Duplex | APC | |
Green | 3.0mm | Blue | 62.5/125μm(MM) | Fan-out (4f) | | |
| | Green | | Fan-out (6f) | | |
| | Gray | | Fan-out (8f) | | |
| | Red | | Fan-out (12f) | | |
| | White | | Fan-out (24f) | | |
Note: The price range is for FC/UPC-FC/UPC 3.0mm 5meter.
