| Prod Model: |
FC |
| St Adapter: |
Metal St Adapter |
| Plastic St Adapter: |
Duplex St Adapter |
| Cores: |
Simplex,Duplex |
| Housing Color: |
Metal |
| Structure: |
FC |
| Transmission Medium: |
Single Mode, Multimode |
| Number Of Cores: |
Single, Duplex |
| Brand: |
Koc |
Product Description
BRIEF INTRODUCTION

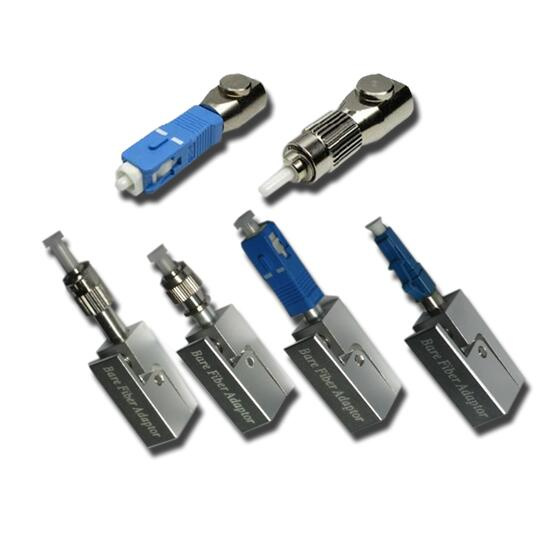

Bare fiber adapter is mainly applied to the fiber pigtail and kinds of device insertion loss test. Ark provides SC, FC and LC types and the mating durability of them all up to 1000times. Simple in assemblage, small in size, durable and long service time, it is one of the indispensable devices of fiber test.
All of the adapters like SC,LC,FC,ST,MU,D4,DIN are use ceramic sleeve to connect connectors although they are different size and appearance. Each species has a lot of types and colors can be chose. Single mode and multi-mode are different performance and price. These adapters can locking the connectors and get low insertion loss to transmission optical signal, which have been widely applied to the CATV system, communications system, FTTx system, ODF, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The KOC has nearly 10 years of experience in producing adapters and all of them are meet the Telcordia and IEC-61754 stander, the material compliance RoHS require.
FEATURES
Good exchangeability and durability
Various type
High stability
Simple operation
Repeated use
All parts compliant with ROHS
APPLICATIONS
Test equipment
Optical fiber system test
Temporary test
CATV, LAN, WAN
SPECIFICATIONS
| ITEM | PARAMETER |
| Insertion Loss | typical≤1.0 dB |
| Repeatability | ≤0.10dB |
| Bare fiber adapter type | SC,FC,ST,LC |
| Ferrule ID | ф125.5um~ф126.5um |
| Life time | >1000 times |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
Note: Change dimensions without notice. More datasheets please contact our salesman.
FEATURES
Compact design
High precision alignment
Nickel plated brass body
Low insertion loss and back reflection loss
Choice of housing material and sleeve material
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
| Zirconia sleeve | PB sleeve | Brass body |
| Zinc di-cast body | Duplex | Simplex |
SPECIFICATIONS
| Insertion Loss | <0.20dB |
| Durability | <0.20 dB typical change, 1000 matings |
| Operating Temperature | -40 to + 85°C |
ORDERING OPTIONS
| Housing Material | Sleeve Material | Channel |
| Nickel plated brass | Zirconia | Duplex |
| Plastic | PB | Simplex |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
