FC to FC Duplex Single Mode Fiber Optic Patch Cable

Name: FC to FC Duplex Single Mode Fiber Optic Patch Cable
Brand: all-electronics-online.com
SKU: 791135965
Availability: InStock
Rating: 4.3 (22 reviews)

Price:	US $ 2-2.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FC-SIM/Dup
Od:	3.0mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	FC
Certification:	CE

Product Description

High Quality and Cost-effective 9/125μm Singlemode Fiber Patch Cable

The 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.

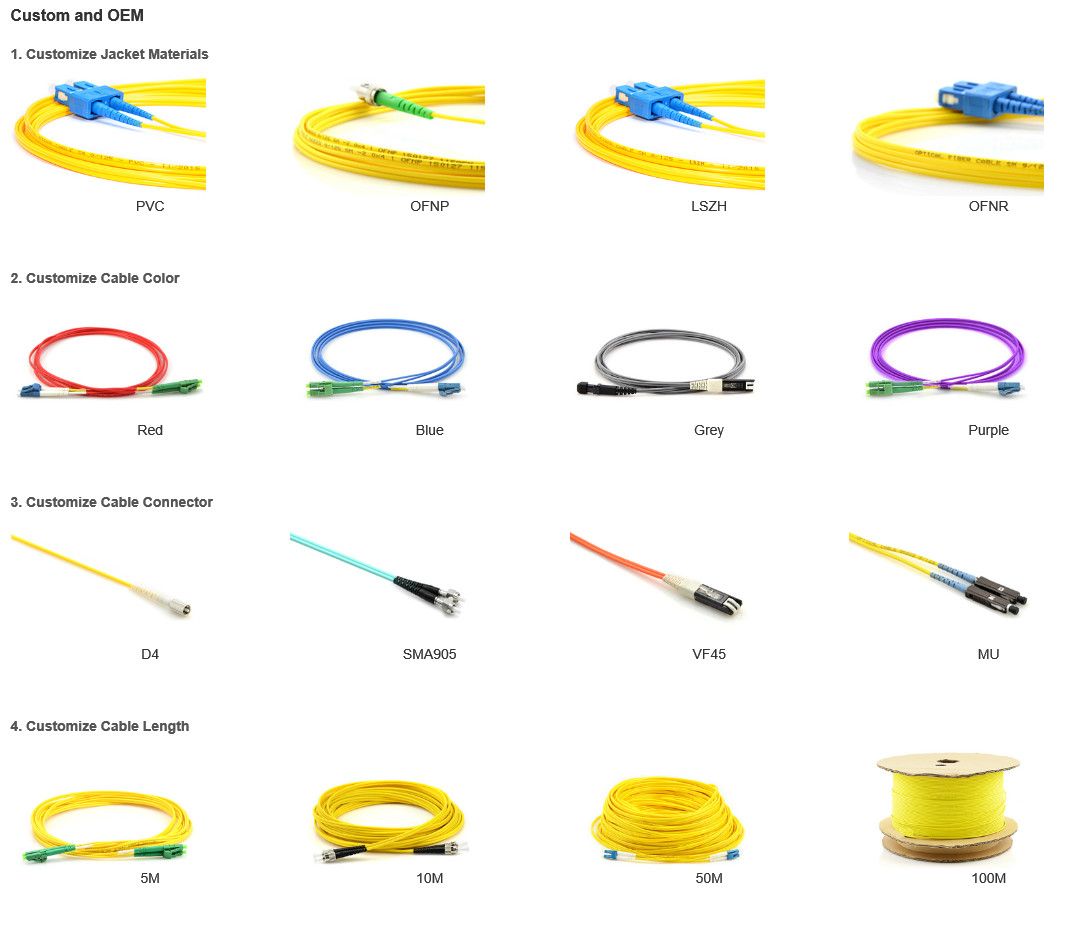

Star Link also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Item Details

Connector: FC to FC	Jacket OD: standard 2.0 (default)/0.9/3.0mm
Fiber Mode: 9/125μm	Jacket Color: Yellow
Polish: PC to PC	Wavelength: 1310/1550nm
Fiber Type: Duplex	Jacket Material: PVC(default)/LSZH/OFNP
Insertion loss: ≤0.3dB	Interchangeability: ≤0.2dB
Return loss: ≥50dB	Vibration: ≤0.2dB
Operating temperature: -40~75°C	Storage temperature: -45~85°C

How to Choose The Right Fiber Optic Cable Type?

Designation	Fiber Dia. (μm)	Type	Fast Ethernet 100BASE-FX	1 Gigabit Ethernet 1000BASE-SX	1 Gigabit Ethernet 1000BASE-LX	10 Gigabit Ethernet 10GBASE	40 Gigabet Ethernet 40GBASE-SR4	100 Gigabet Ethernet 100GBASE-SR4
OM1	62.5/125	Multimode	2000 Meters	275 Meters	550 Meters (mode conditioning patch cable required)	33 Meters	Not supported	Not supported
OM2	50/125	Multimode		550 Meters	550 Meters (mode conditioning patch cable required)	82 Meters	Not supported	Not supported
OM3 (Laser Optimized)	50/125	Multimode			550 Meters	300 Meters	100 Meters	100 Meters
OM4 (Laser Optimized)	50/125	Multimode			550 Meters	400 Meters	150 Meters	150 Meters
Singlemode	9/125	Singlemode		5km at 1310nm	5km at 1310nm	10km at 1310nm

PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.
